Артикул
Название
Примечание
Количество
1
CYLINDER

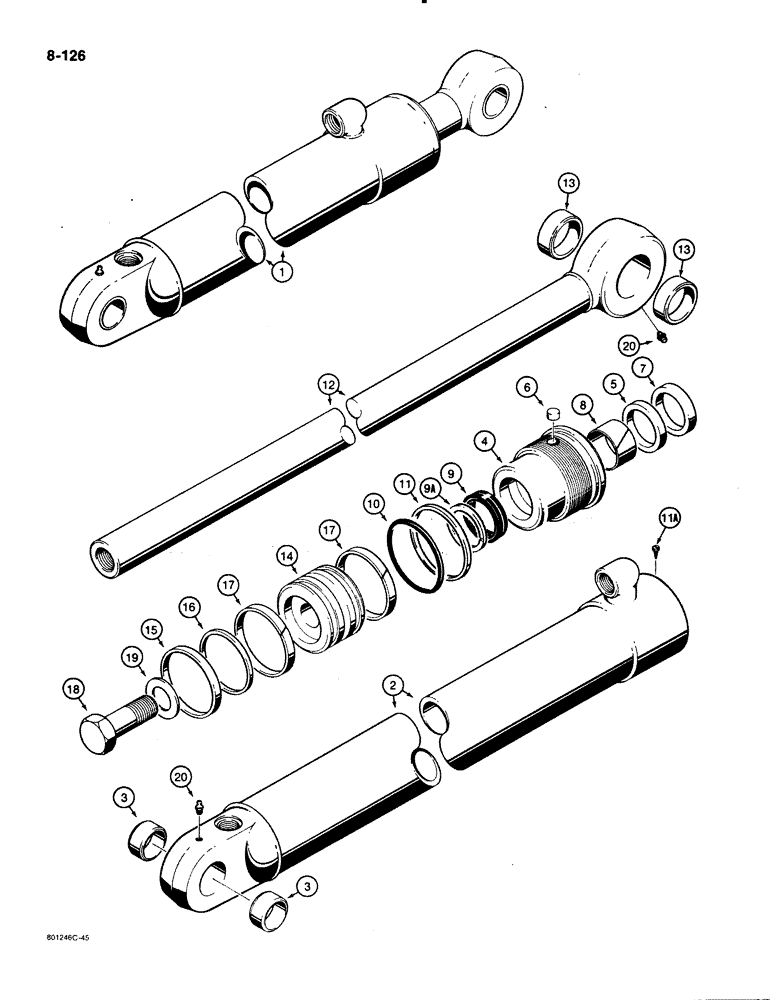

CYLINDER ASSEMBLY - 3-1/2 inch (89 mm) ID x 33-1/8 inch (841 mm) stroke, backhoe dipper, Includes: Ref. 2 - 20
1шт.
The cylinder assembly part number is stamped on some cylinder glands or tubes.
1шт.
2
G104845
TUBE,3.5" DIA x 41.87" L
TUBE ASSEMBLY - cylinder, Includes: Ref. 3
1шт.
3
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
BUSHING - tube
2шт.
G104402
GLAND
GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 11
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
5
NSS
NOT SOLD SEPARAT
RETAINING RING - bushing
1шт.
6
G102569
PLUG
PLUG - nylon, thread locking, gland, if used
1шт.
7
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod
1шт.
Part of Seal Kit, P/N G109453
1шт.
8
G101533
WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk
BUSHING - center
1шт.
Part of Seal Kit, P/N G109453
1шт.
9
G107923
SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk
U-CUP SEAL - piston rod, wide, with O-ring
1шт.
Part of Seal Kit, P/N G109453
1шт.
9
G100778
SEAL
U-CUP SEAL - piston rod, service option - severe heat or cold
1шт.
9a
G107997
SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk
SEAL - piston rod, narrow, with groove
1шт.
Part of Seal Kit, P/N G109453
1шт.
10
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
O-RING - gland
1шт.
Part of Seal Kit, P/N G109453
1шт.
11
G32126
BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk
BACKUP RING - gland O-ring
1шт.
Part of Seal Kit, P/N G109453
1шт.
11a
187-1524
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
If used
1шт.
12
G104842
ROD
ROD ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 13
1шт.
13
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
BUSHING - piston rod
2шт.
14
G100692
PISTON
PISTON - cylinder
1шт.
15
G102286
SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk
Piston
1шт.
Part of Seal Kit, P/N G109453
1шт.
16
G100710
RING,Square, 5.28mm Thk x 75.31mm ID
BACKUP RING - piston seal
1шт.
Part of Seal Kit, P/N G109453
1шт.
17
G100711
SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk
Piston
2шт.
Part of Seal Kit, P/N G109453
1шт.
18
28-2044
BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8
1шт.
19
G104989
WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk
WASHER - hardened
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch long
2шт.
G109453
GASKET KIT
KIT - seal, includes Refs. 7 through 11 (except G100778) and 15 through 17
1шт.
Выбрано товаров: 35
