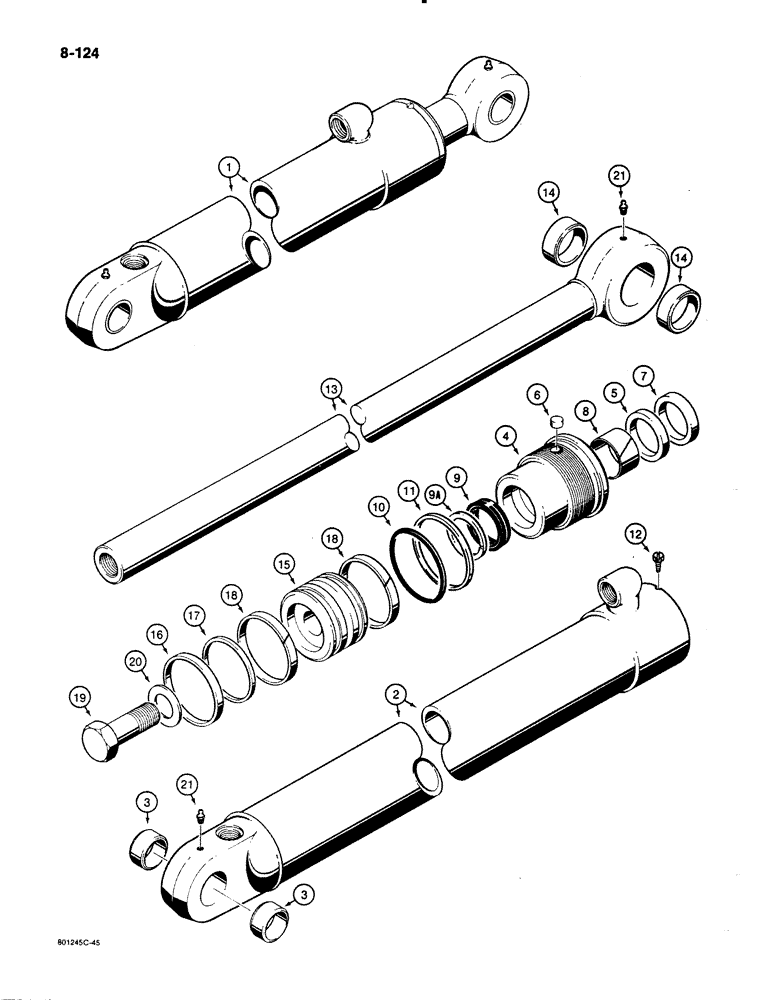

Запчасти Case 480E (8-124) - G102835 BACKHOE BOOM CYLINDER, 480E MODELS ONLY (08) - HYDRAULICS

1

G102835

CYLINDER

CYLINDER ASSEMBLY - 4" (102 mm) ID x 38-1/8" (968 mm) stroke, backhoe boom, Includes: Ref. 2 - 21

1шт.

2

G109528

TUBE,3.995" ID x 4" DIA x 47.17" L

TUBE ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

BUSHING - tube

2шт.

G104936

GLAND

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing

1шт.

6

G102569

PLUG

PLUG - nylon, thread locking, gland, if used

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G109479

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N G109479

1шт.

9

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109479

1шт.

9

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9a

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

SEAL - piston rod, narrow, with groove

1шт.

Part of Seal Kit, P/N G109479

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

O-RING - gland

1шт.

Part of Seal Kit, P/N G109479

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N G109479

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

13

1978064C1

ROD

SPARE PART ROD ASSEMBLY - piston, 1-3/4" (44 mm) diameter, Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

BUSHING - piston rod

2шт.

15

G100690

PISTON

PISTON - cylinder

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

SEAL - piston

1шт.

Part of Seal Kit, P/N G109479

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G109479

1шт.

18

G100448

RING,101.6mm OD, Ext

RING - wear, piston

2шт.

Part of Seal Kit, P/N G109479

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

WASHER - hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

G109479

SEAL

KIT - seal, includes Refs. 7 through 11 (except G100777) and 16 through 18

1шт.
