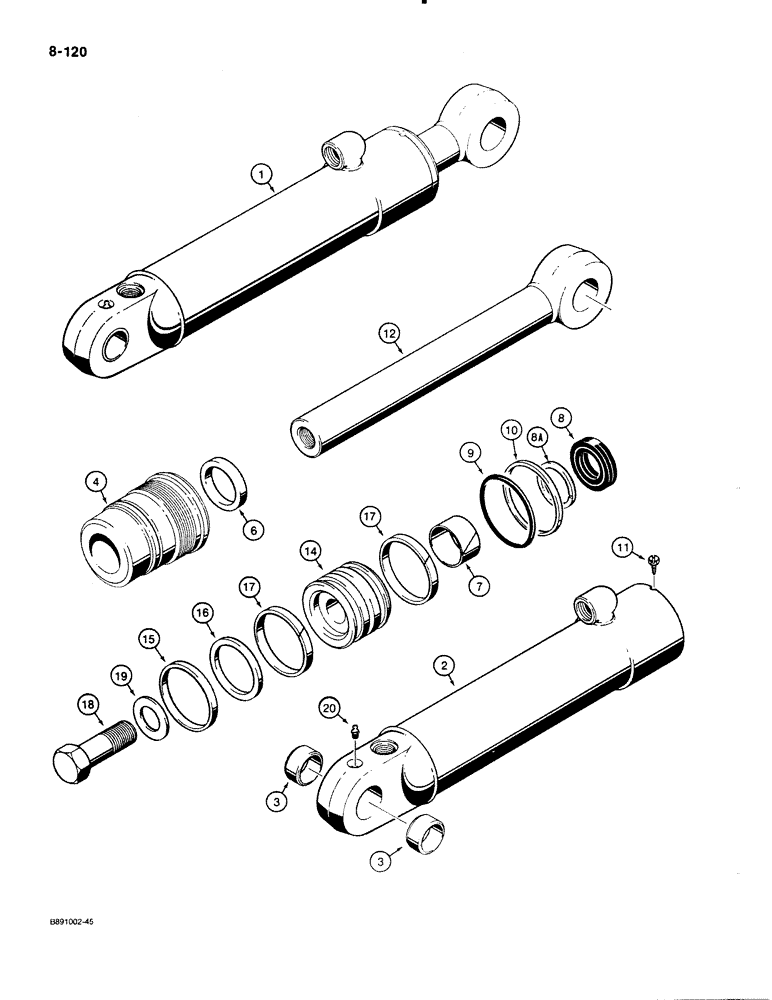

Запчасти Case 480E (8-120) - 1340827C1 BACKHOE STABILIZER CYLINDER, 480E MODELS ONLY (08) - HYDRAULICS

1

1340827C1

CYLINDER

CYLINDER ASSEMBLY - 3-1/2" (89 mm) ID x 16-3/8" (416 mm) stroke, stabilizer, Includes: Ref. 2 - 20

2шт.

2

1340828C1

TUBE,638.1 mm Length

TUBE ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

BUSHING - tube

2шт.

G110607

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G110621

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N G110621

1шт.

8

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G110621

1шт.

8

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

8a

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

SEAL - piston rod, narrow, with groove

1шт.

Part of Seal Kit, P/N G110621

1шт.

9

G46889

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

O-RING - gland

1шт.

Part of Seal Kit, P/N G110621

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G110621

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

1340831C1

ROD

SPARE PART ROD ASSEMBLY - piston, 1-3/4" (44 mm) diameter

1шт.

14

G100698

PISTON

PISTON - cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit, P/N G110621

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G110621

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of Seal Kit, P/N G110621

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

WASHER - hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

G110621

SEAL PACKAGE

KIT - seal, includes Refs. 6 through 10 (except G100777), and 15 through 17

1шт.
