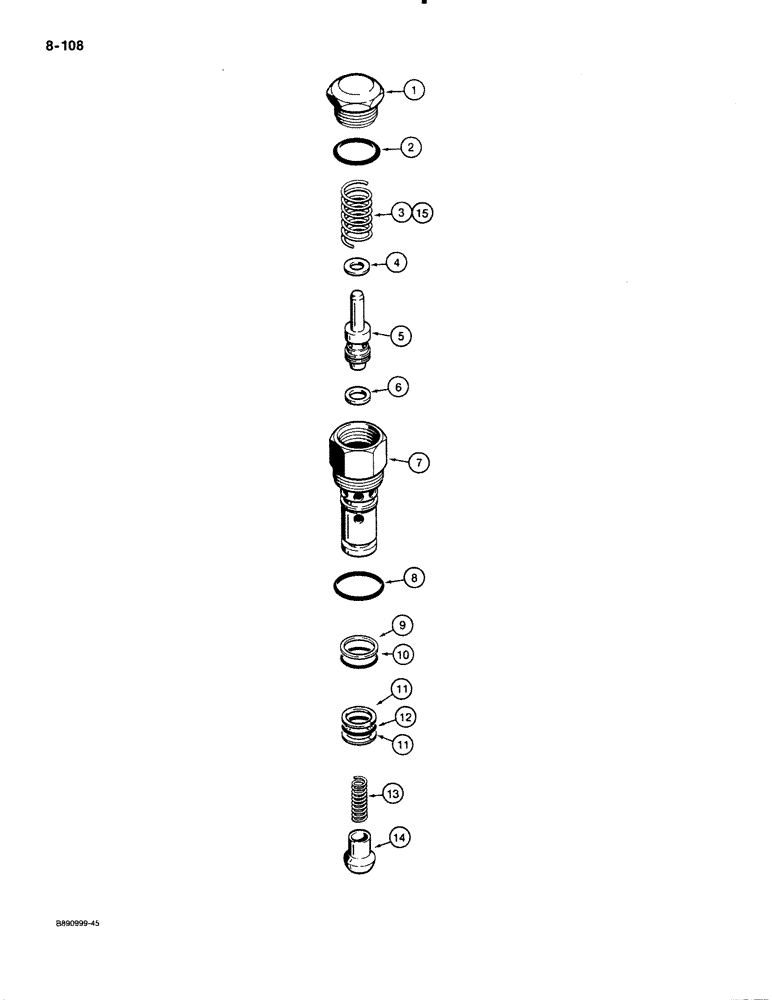

Запчасти Case 480E (8-108) - PTO AND THREE-POINT HITCH CONTROL VALVES, H593228 & D122552 LIFT SECTIONAL CIRCUIT RELIEF VALVES (08) - HYDRAULICS

H593228

VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - lift circuit, upper port, Includes: Ref. 1 - 15

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.

D122552

VALVE, PRESSURE RELI

EF CIRCUIT RELIEF VALVE ASSEMBLY - lift circuit, lower port, Includes: Ref. 1 - 15

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.

1

D39716

PLUG

CAP - circuit relief valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

N8964

SPRING

SPRING - outer, H593228 valve only, upper port

1шт.

4

A55893

SHIM,.0418" Thk

(1.016 mm)

1шт.

4

A55894

SHIM,.0209" Thk

(0.508 mm)

1шт.

4

D39712

SHIM

SHIM - .010" (0.25 mm) thick

1шт.

D66490

VALVE POPPET

PLUNGER ASSEMBLY - circuit relief valve, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER - body

1шт.

6

D39714

RING

SEAL - plunger

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - center O-ring

1шт.

10

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

O-RING - valve

1шт.

11

H411371

BACK-UP RING

BACKUP RING - inner O-ring

2шт.

12

16905

O-RING,0.551" ID x 0.07" Width

O-RING - inner

1шт.

13

H268730

SPRING

SPRING - load check valve poppet

1шт.

14

D28576

VALVE POPPET

POPPET - load check valve

1шт.

15

D39709

SPRING

SPRING - outer, D122552 valve only, lower port

1шт.
