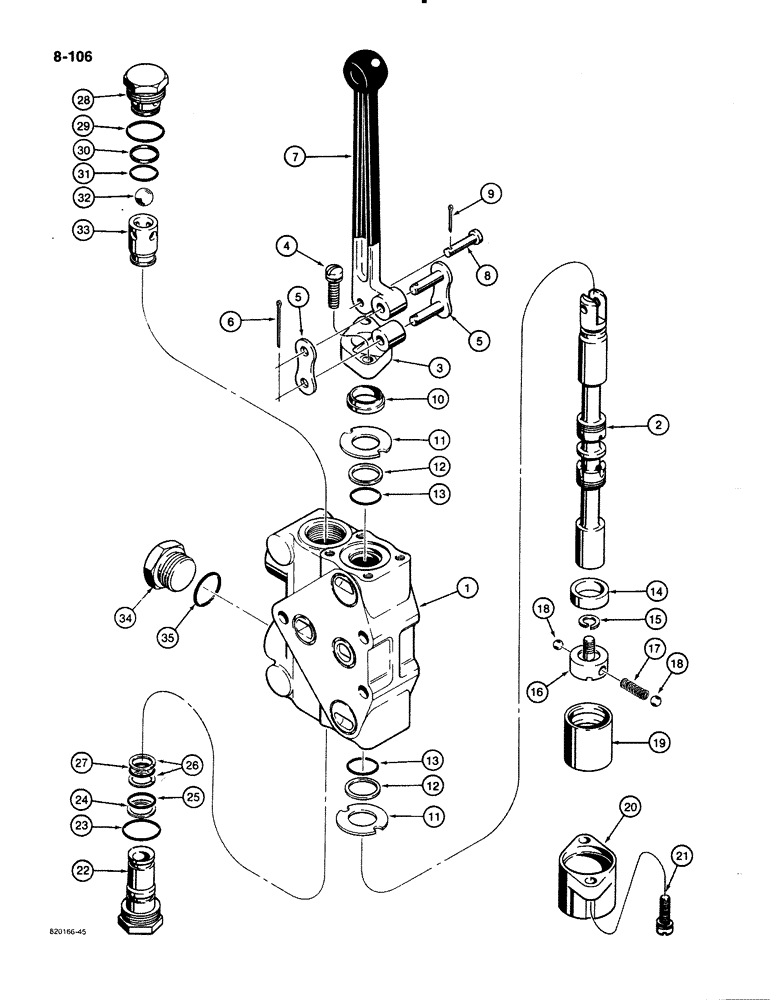

Запчасти Case 480E (8-106) - PTO AND THREE-POINT HITCH CONTROL VALVES, PTO SECTION (08) - HYDRAULICS

N7899

PTO

POWER TAKE OFF SECTION ASSEMBLY - PTO, used in D122151 control valve and as a fifth spool with D122164 control valve, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

N7114

BRACKET

RETAINER AND BRACKET - section

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

SCREW - slotted Fillister, with lock washer, 1/4" NC x 7/8"

2шт.

5

H620344

LINK

LINK ASSEMBLY - bracket to control rod

1шт.

6

132-13

PIN

COTTER PIN - 1/16" x 1-1/2", plated

1шт.

7

N7113

HANDLE

LEVER - section control

1шт.

8

D88727

PIN

PIN - control rod to spool eye

1шт.

9

132-379

COTTER PIN,5/64" x 1/2"

PIN, SPLIT (COTTER), 5/64" x 1/2"

1шт.

10

N7029

SCRAPER

WIPER - spool

1шт.

11

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - seal

2шт.

12

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

BACKUP RING - spool O-ring

2шт.

13

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING - spool seal

2шт.

14

N7905

STOP

COLLAR - spool stop

1шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

16

N7903

HOLDER

RETAINER - detent

1шт.

17

H325092

SPRING

SPRING - detent

1шт.

18

211-7

BALL,1/4" Dia

Detent

2шт.

19

N7904

SLEEVE

SLEEVE - detent

1шт.

20

H267583

FITTING

CAP - valve spool

1шт.

21

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

SCREW - slotted Fillister, with lock washer, 1/4" NC x 7/8"

2шт.

N7900

PLUG

PLUG ASSEMBLY - lower port, Includes: Ref. 22 - 27

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - plug

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - center O-ring

1шт.

25

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

O-RING - valve

1шт.

26

D88725

BACK-UP RING

BACKUP RING - inner O-ring

2шт.

27

16905

O-RING,0.551" ID x 0.07" Width

O-RING - inner

1шт.

N7901

VALVE, CHECK

ANTICAVITATION ASSEMBLY - upper port, Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - anticavitation

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - center O-ring

1шт.

31

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

O-RING - valve

1шт.

32

211-12

BALL,7/16 Dia

BALL - steel

1шт.

33

N7902

RETAINER

RETAINER - ball

1шт.

34

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4 tube, Includes: Ref. 35

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.
