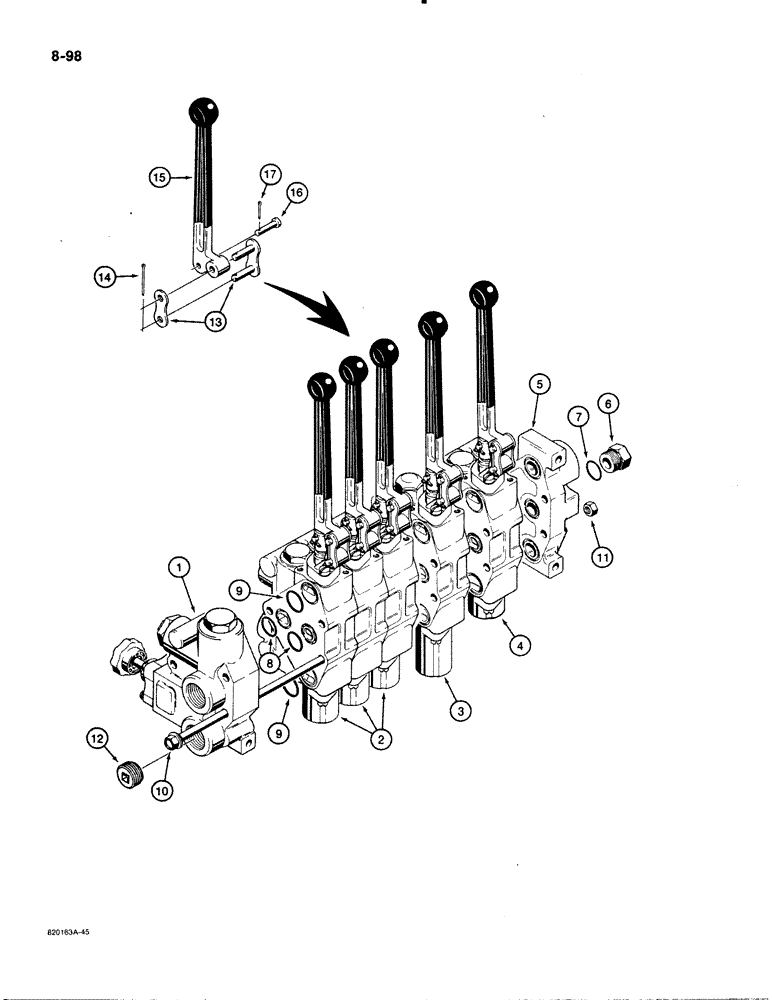

Запчасти Case 480E (8-098) - PTO AND THREE-POINT HITCH CONTROL VALVE (08) - HYDRAULICS

D122151

VALVE

SPARE PART CONTROL VALVE ASSEMBLY - PTO and three-point hitch, five-spool, Includes: Ref. 1 - 17

1шт.

1

D122551

VALVE

END SECTION - inlet-outlet, parts list Figure 8-100

1шт.

2

N8691

KNIFE SECTION

SECTION, KNIFE SECTION - implement, pitch, and tilt, does not include control lever and mounting, see Refs. 13-17 below, parts list Figure 8-104

3шт.

3

N8692

KNIFE SECTION

SECTION, KNIFE SECTION - lift, section does not include control lever and mounting, see Refs. 13-17 below, parts list Figure 8-102

1шт.

4

N7899

PTO

POWER TAKE OFF SECTION - PTO, section includes control lever and mounting, parts list Figure 8-106

1шт.

D122553

PLATE

END SECTION - cover plate, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4 tube, Includes: Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

8

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

O-RING - between sections, 13/16" (21 mm) ID

12шт.

9

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

O-RING - between sections, 15/16" (24 mm) ID

12шт.

10

N7117

BOLT

BOLT - tie, 3/8" - 24 NF x 11-1/4"

3шт.

11

129-123

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

3шт.

12

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - excess flow, internal, used on PTO models only

1шт.

13

H620344

LINK

LINK ASSEMBLY - lever

4шт.

14

132-17

COTTER PIN,1/16" x 2"

COTTER PIN - 1/16" x 1-1/2", plated

4шт.

15

N7113

HANDLE

CONTROL LEVER - section

4шт.

16

D88727

PIN

PIN - control lever to spool eye

4шт.

17

132-379

COTTER PIN,5/64" x 1/2"

PIN, SPLIT (COTTER), 5/64" x 1/2"

4шт.
