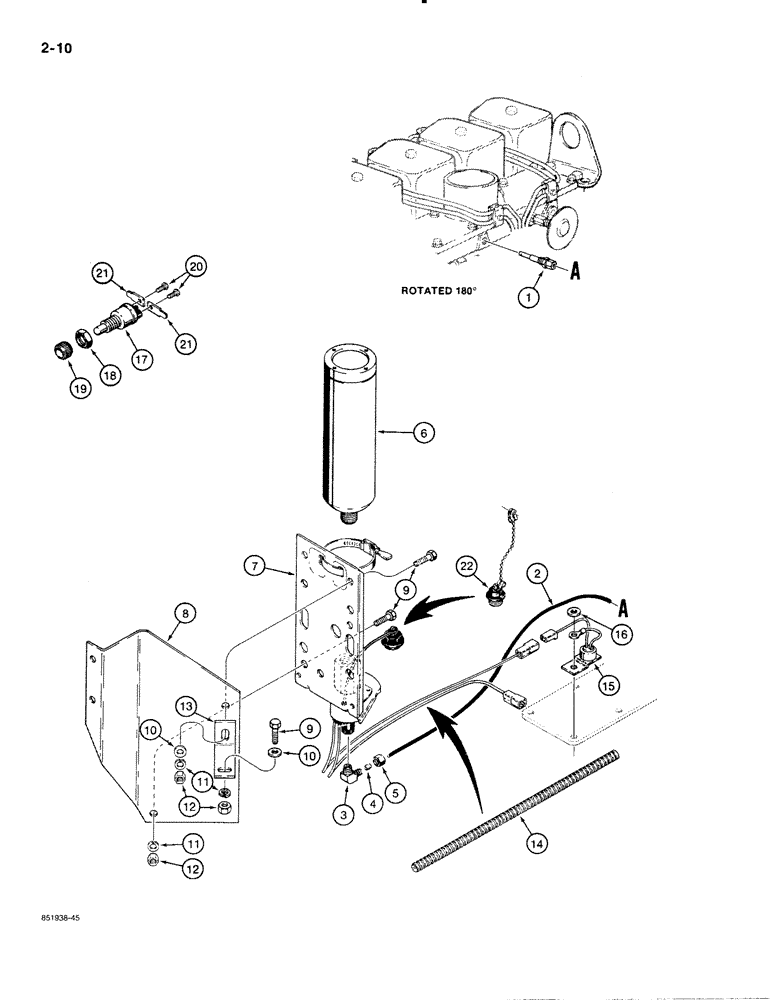

Запчасти Case 480E (2-10) - COLD START SYSTEM (02) - ENGINE

1

A172900

NOZZLE CAP

NOZZLE - atomizer, component parts not serviced separately

1шт.

2

D41013

TUBE

TUBE - valve to injector nozzle, 18" (457 mm) long, see Parts Substitution List for bulk tube options

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube

1шт.

6

A171940

CYLINDER

STARTING FLUID - cylinder

1шт.

7

A172116

VALVE

VALVE - 3 cc starting fluid injection, component parts not serviced separately

1шт.

8

D129723

BRACKET

BRACKET - valve mounting

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

10

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

2шт.

11

492-11038

LOCK WASHER,3/8"

3шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

13

D131719

ANGLE

SUPPORT - valve mounting bracket

1шт.

14

D128402

PLASTIC-RUBBER TUBE

SLEEVE - wire guard, 15" (380 mm) long

1шт.

15

A171943

IGNITION SWITCH

SWITCH - temperature

1шт.

16

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

1шт.

L72776

SWITCH

SWITCH ASSEMBLY - cold start, must also order two L59682 blade terminals (item 21), Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH - cold start

1шт.

18

H275784

JAM NUT

NUT - jam, special

1шт.

19

D73741

NUT

NUT - special

1шт.

20

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

MACHINE SCREW - round head slotted, No. 10 - 32 NF x 1/4"

2шт.

21

L59682

TERMINAL CONNECTOR

TERMINAL - blade, switch

2шт.

22

N8826

PLUG

PLUG - with chain, place in starting fluid valve when starting fluid cylinder is not in place, if used

1шт.
