Артикул
Название
Примечание
Количество
1
G103404
SEGMENT

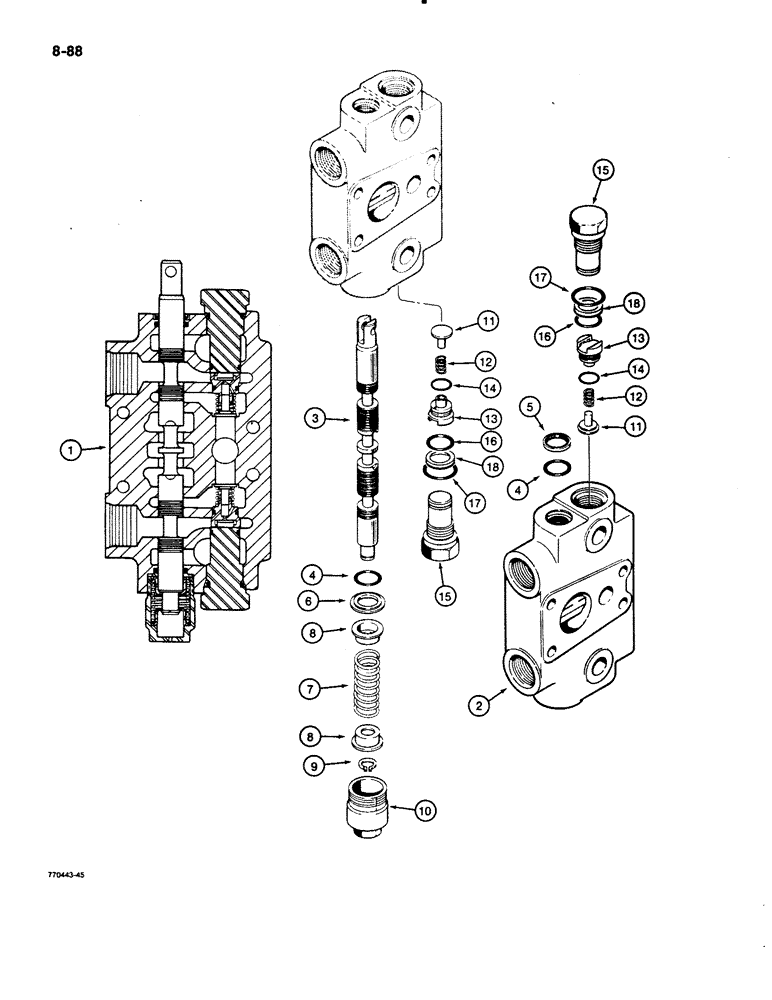

SECTION ASSEMBLY - dipper extension, Includes: Ref. 2 - 18
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - section
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL - section
1шт.
4
G108461
O-RING
O-RING - body
2шт.
5
A32309
SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk
SEAL - spool
1шт.
6
G102711
RETAINER COLLAR,19.3 mm ID x 32.97 mm OD
RETAINER - O-ring
1шт.
7
G34463
SPRING
CENTERING SPRING - spool
1шт.
8
G33075
RETAINER,12.2mm ID, 27.9mm OD
SEAT - centering spring
2шт.
9
G33077
SNAP RING,#47, Ext
Ring, Snap, , spool end #47, Ext
1шт.
10
P0033080G
SCREW
- centering spring
1шт.
11
G33081
VALVE POPPET
POPPET - load check valve
2шт.
12
G33573
SPRING
SPRING - load check valve
2шт.
13
G33084
PLUG
PLUG - load check valve
2шт.
14
G33686
O-RING,0.07" Thk x 0.61" ID
O-RING - plug
2шт.
G33122
PLUG,ORB
PLUG ASSEMBLY - circuit relief valve port, Includes: Ref. 15 - 18
2шт.
15
NSS
NOT SOLD SEPARAT
PLUG - circuit relief valve port
1шт.
16
G107675
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
O-RING - 7/8 x 1-1/16 x 3/32 inch, small
1шт.
17
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
O-RING - 59/64 ID x 7/8 inch wide, large
1шт.
18
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
RING - backup, small o-ring
1шт.
Выбрано товаров: 19
