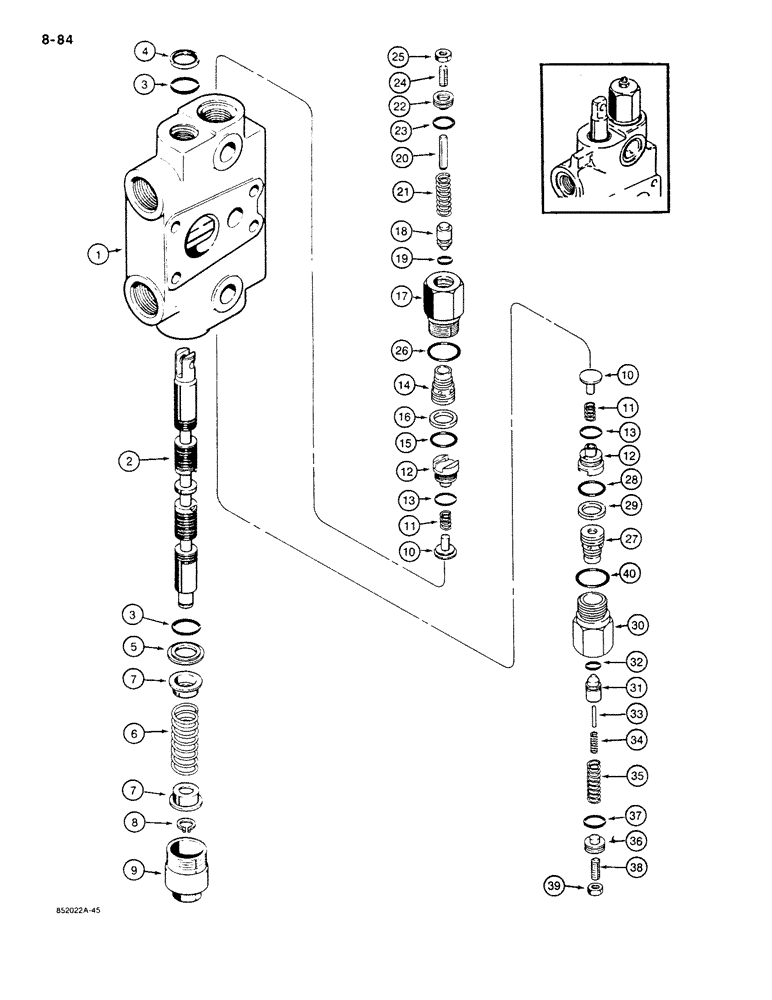

Запчасти Case 480E (8-084) - BACKHOE CONTROL VALVE, BOOM SECTION, 480E MODELS ONLY (08) - HYDRAULICS

G109514

KNIFE SECTION

SECTION, KNIFE SECTION ASSEMBLY - boom, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - boom section

1шт.

3

G108461

O-RING

O-RING - body

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

SEAL - spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

RETAINER - O-ring

1шт.

6

G34463

SPRING

CENTERING SPRING - spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , retainer #47, Ext

1шт.

9

G33080

CAP

- centering spring

1шт.

10

G33081

VALVE POPPET

POPPET - load check valve

2шт.

11

G33573

SPRING

SPRING - load check valve

2шт.

12

G33084

PLUG

PLUG - load check valve

2шт.

13

G33686

O-RING,0.07" Thk x 0.61" ID

O-RING - plug

2шт.

G109441

KIT

CIRCUIT RELIEF VALVE ASSEMBLY - spool eye end, low pressure, order G109448 kit below, Includes: Ref. 14 - 26

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

15

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

O-RING - 7/8 x 1-1/16 x 3/32 inch, small, seat

1шт.

16

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

RING - backup, small o-ring

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - stop, circuit relief valve spring

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve

1шт.

22

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

24

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SETSCREW - hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

25

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide, large, body

1шт.

G109448

KIT

KIT - service for G109441, includes G109446 relief valve assembly (Refs. 14-26) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.

G107786

VALVE, PRESSURE RELI

EF VALVE ASSEMBLY- circuit relief, spool cap end, high pressure, order G109449 kit below

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.

27

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

28

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

O-RING - 7/8 x 1-1/16 x 3/32 inch, small, seat

1шт.

29

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

RING - backup, small o-ring

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

31

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

33

NSS

NOT SOLD SEPARAT

PIN - relief stop

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, inner

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, outer

1шт.

36

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

38

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SETSCREW - hex socket headless, 5/16 NF x 1 inch, oval point

1шт.

39

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide, large, body

1шт.

G109449

KIT

KIT - service for G107786, includes G109447 relief valve assembly (Refs. 27-40) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.
