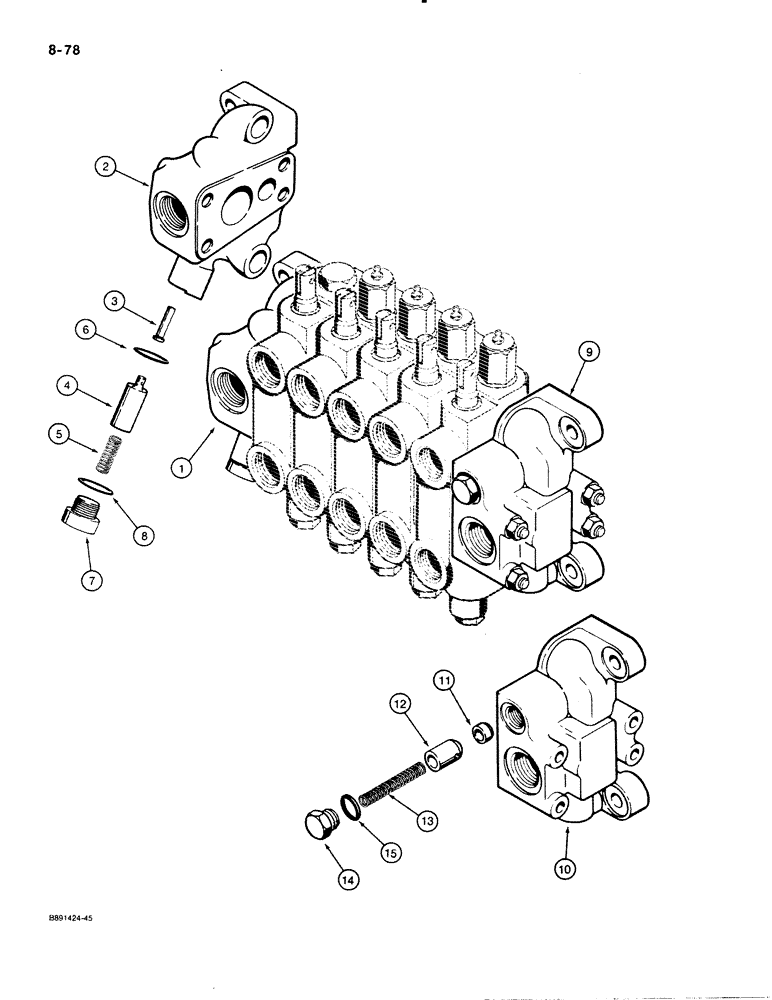

Запчасти Case 480E (8-078) - BACKHOE CONTROL VALVE, 480E MODELS ONLY, OUTLET SECTION (08) - HYDRAULICS

1

G33108

MANIFOLD

SECTION ASSEMBLY - outlet, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

MANIFOLD - section body

1шт.

3

G33110

PISTON

PISTON - regeneration sensing

1шт.

4

G34586

SPOOL,22mm OD x 59.87mm L

SPOOL - regeneration

1шт.

5

G33112

SPRING

SPRING - regeneration spool

1шт.

6

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

O-RING - internal

1шт.

7

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

PLUG, , regeneration spool, Includes Ref 8 Hex Soc, 1 3/16"-12 ORB

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

O-RING - 1-3/64 x 1-7/32 x 7/64 inch

1шт.

9

G33102

MANIFOLD

SECTION ASSEMBLY - inlet, Includes: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

MANIFOLD - section body, inlet

1шт.

11

G33104

SEAT

SEAT - check valve poppet, inlet section

1шт.

12

G33105

VALVE POPPET

POPPET - check valve, inlet section

1шт.

13

G33106

SPRING

SPRING - check valve, inlet section

1шт.

14

A39586

PLUG

PLUG - check valve, inlet section

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk, Inlet section

1шт.
