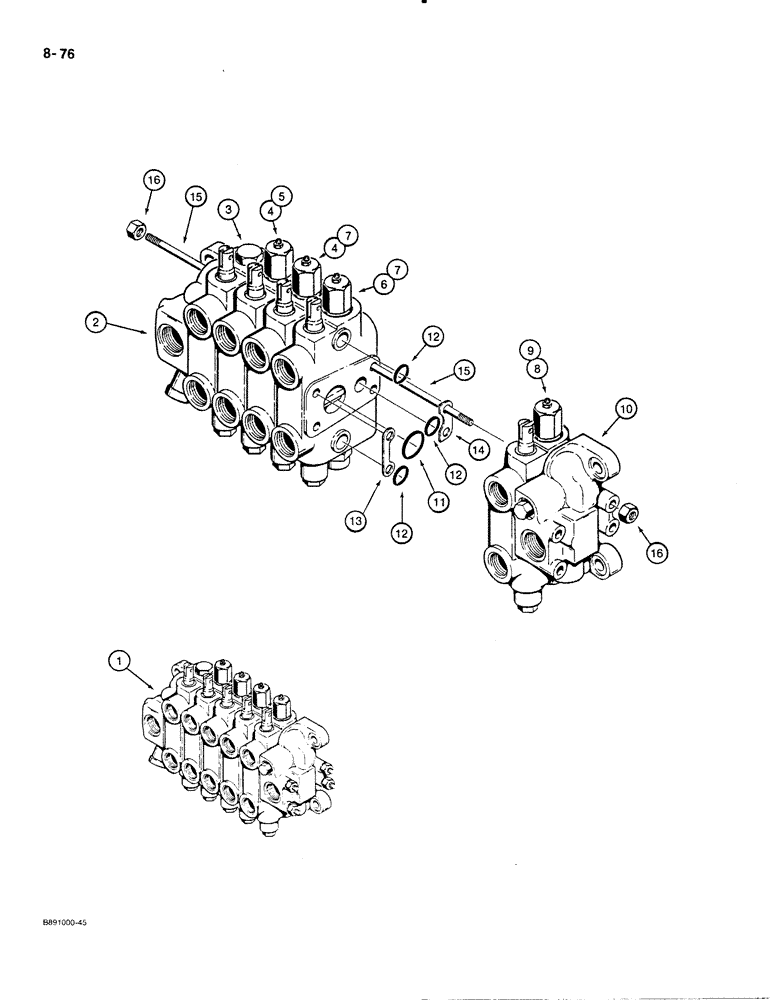

Запчасти Case 480E (8-076) - BACKHOE CONTROL VALVES, MODELS WITH EXTENDABLE DIPPER, 480E MODELS ONLY (08) - HYDRAULICS

1

G109538

VALVE

CONTROL VALVE ASSEMBLY - foot swing models, with extendable dipper, Includes: Ref. 2 - 16

1шт.

1

G105282

VALVE

CONTROL VALVE ASSEMBLY - hand swing models, with extendable dipper, Includes: Ref. 2 - 16

1шт.

2

G33108

MANIFOLD

OUTLET SECTION - parts list Figure 8-78

1шт.

3

G103404

SEGMENT

EXTENDABLE DIPPER SECTION - parts list Figure 8-88

1шт.

4

G109513

HYD VALVE SECTION

DIPPER AND BUCKET SECTION - parts list Figure 8-80, used with G105282 control valve assembly

2шт.

5

G109514

KNIFE SECTION

SECTION, KNIFE BOOM SECTION - parts list Figure 8-84, used with G109538 control valve assembly

1шт.

6

G109522

VALVE

SWING SECTION - parts list Figure 8-82, used with G105282 control valve assembly

1шт.

7

G109513

HYD VALVE SECTION

DIPPER AND BUCKET SECTION - parts list Figure 8-80, used with G109538 control valve assembly

2шт.

8

G109514

KNIFE SECTION

SECTION, KNIFE BOOM SECTION - parts list Figure 8-84, used with G105282 control valve assembly

1шт.

9

G109522

VALVE

SWING SECTION - parts list Figure 8-82, used with G109538 control valve assembly

1шт.

10

G33102

MANIFOLD

INLET SECTION - parts list Figure 8-78

1шт.

11

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

O-RING - section ports, large

6шт.

12

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

O-RING - 15/16 x 1-1/8 inch, section ports, small

18шт.

13

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve

6шт.

14

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve

6шт.

15

G34675

TIE-ROD

STUD - tie, 3/8" - 16 NC x 15-3/4"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.
