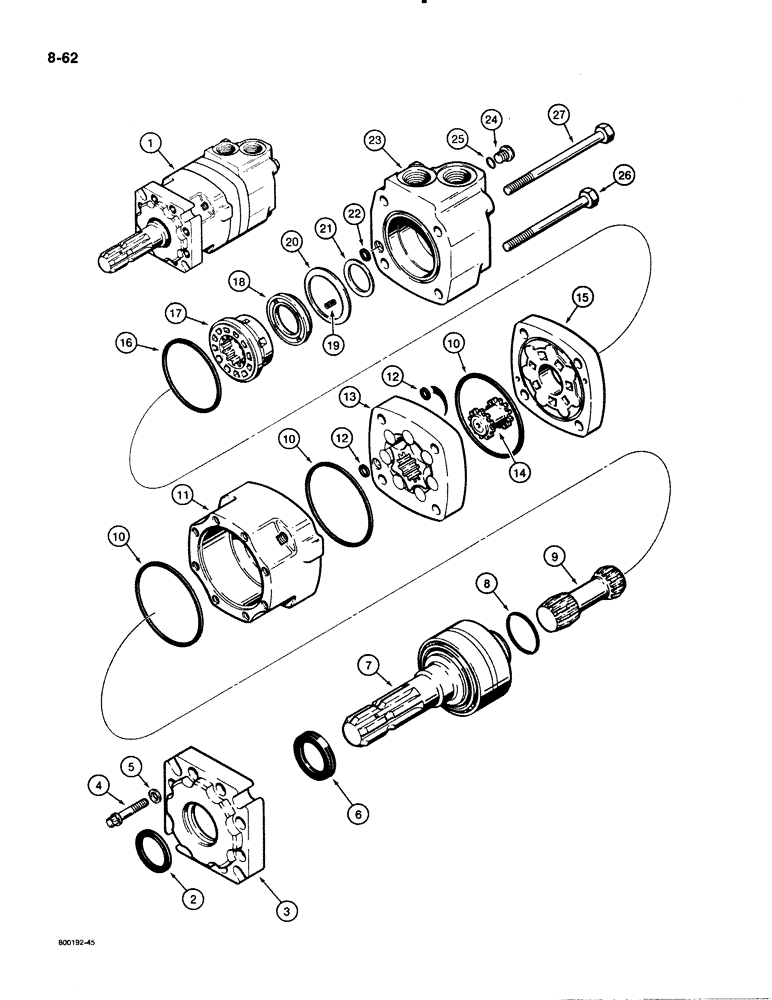

Запчасти Case 480E (8-062) - D90094 PTO HYDRAULIC MOTOR (08) - HYDRAULICS

1

D90094

MOTOR

MOTOR ASSEMBLY - hydraulic, PTO, Includes: Ref. 2 - 27

1шт.

2

D74402

SEAL

SEAL - dust

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - shaft end

1шт.

4

166-526

12 PT SCREW,Flg, 5/16" - 24 x 1 1/4", Gr 8

BOLT - Ferry head, 5/16" - 24 NF x 1-1/4", grade 8

8шт.

5

N9437

WASHER

WASHER - special

8шт.

6

N6700

SEAL

SEAL - shaft

1шт.

7

N6696

SHAFT ASSY.

SHAFT AND BEARING ASSEMBLY - motor

1шт.

8

N6699

SEAL

SEAL - bearing housing, inner

1шт.

9

NSS

NOT SOLD SEPARAT

DRIVE - main

1шт.

10

D74397

SEAL

SEAL - between housings

3шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

12

D74398

SEAL

SEAL - gerotor

2шт.

13

NSS

NOT SOLD SEPARAT

GEROTOR ASSEMBLY - motor

1шт.

14

NSS

NOT SOLD SEPARAT

DRIVE - valve

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

16

D74396

SEAL

SEAL -, Serial Range: plate-housing

1шт.

17

NSS

NOT SOLD SEPARAT

VALVE - hydraulic

1шт.

18

D74392

PLATE

PLATE ASSEMBLY - balancing

1шт.

19

N6697

SPRING

SPRING - balancing plate

2шт.

20

D74390

SEAL

SEAL - outer

1шт.

21

D74391

SEAL

SEAL - inner

1шт.

22

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL - plate to housing, 7/16 x 5/16 x 1/16 in

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING - closed end

1шт.

24

278548

PLUG,Hex, 7/16"-20 ORB

Removed when drain tube is connected, Incl Ref 25

1шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

28-784

BOLT,Hex, 7/16" - 20 x 5-1/4", Gr 8

BOLT - hex head, 7/16" - 20 NF x 5-1/4", grade 8

3шт.

27

28-792

BOLT,Hex, 7/16" - 20 x 5-3/4", Gr 8

BOLT - hex head, 7/16" - 20 NF x 5-3/4", grade 8

1шт.
