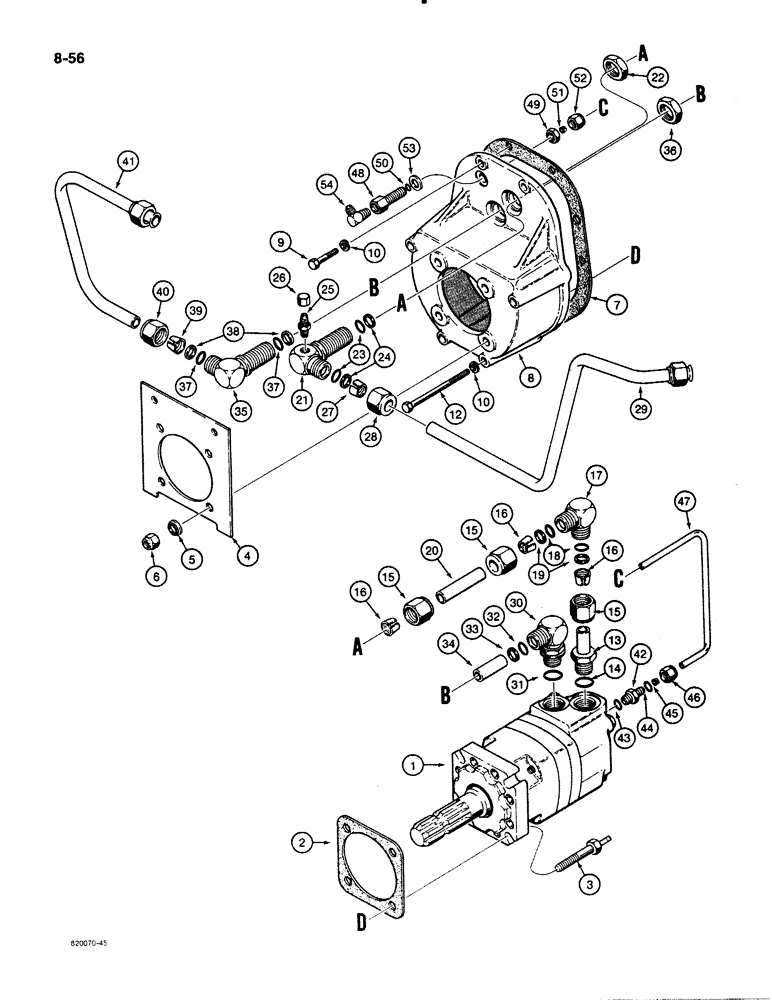

Запчасти Case 480E (8-056) - PTO MOTOR AND MOTOR HOUSING (08) - HYDRAULICS

1

D90094

MOTOR

MOTOR ASSEMBLY - hydraulic, PTO, parts list Figure 8-62

1шт.

2

D72019

GASKET

GASKET - PTO, Serial Range: motor-housing

1шт.

3

D71968

BOLT

BOLT - special

4шт.

4

D72274

PLATE

PLATE - shield mounting, see Figure 8-60 for shield

1шт.

5

T42588

WASHER

WASHER - special sealing

4шт.

6

131-70

NUT,1/2"-13, GB

NUT, 1/2"-13, GB

4шт.

7

G10447

GASKET

GASKET - PTO housing

1шт.

8

D72023

HOUSING

HOUSING - PTO

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

10

492-11038

LOCK WASHER,3/8"

6шт.

12

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 4 1/2", G5

4шт.

13

222-3071

FITTING,Nipple, 1/2" Tube x 3/4"-16

FITTING - special nipple, Includes: Ref. 14

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

15

222-3112

NUT,1 1/8"-12

NUT - tube

3шт.

16

222-3103

SLEEVE,3/4" Tube

SLEEVE - tube nut

3шт.

222-3141

ELBOW,90 Degree, 1 1/8"-12 x 1 1/8"-12, O-Ring

ELBOW ASSEMBLY - special, 90 degree, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

18

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING, -116, 70 Duro, .737" ID x .103" Thk

2шт.

19

D75828

RING

BACKUP RING - internal O-ring

2шт.

20

D91374

TUBE,0.584" ID x 0.75" OD x 3.12" L

TUBE - 3-1/8" (79 mm) long, pressure, to PTO motor

1шт.

D72652

ELBOW

ELBOW ASSEMBLY - bulkhead, 90 degree, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

22

222-3166

BHD LOCK NUT,Blkhd, 1 1/8"-12

NUT - bulkhead

1шт.

23

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING, -116, 70 Duro, .737" ID x .103" Thk

2шт.

24

D75828

RING

BACKUP RING - internal O-ring

2шт.

25

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, 7/16-20 thread x 1/8 inch PT

1шт.

26

218-752

CAP,37 Degree, 7/16"-20

1/4 inch tube, connector, if used

1шт.

27

222-3103

SLEEVE,3/4" Tube

SLEEVE - tube nut

1шт.

28

222-3112

NUT,1 1/8"-12

NUT - tube

1шт.

29

D121533

TUBE

TUBE - pressure, PTO

1шт.

222-3145

ELBOW,90 Degree, 1 1/8"-12 x 1 1/16"-12, O-Ring

ELBOW ASSEMBLY - adjustable, 90 degree, Includes: Ref. 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

32

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING, -116, 70 Duro, .737" ID x .103" Thk

1шт.

33

D75828

RING

BACKUP RING - internal O-ring

1шт.

34

D91375

TUBE,0.584" ID x 0.75" OD x 1.97" L

TUBE - 1-31/32" (50 mm) long, return, from PTO motor

1шт.

222-3097

FITTING

ELBOW ASSEMBLY - bulkhead, 90 degree, Includes: Ref. 35 - 38

1шт.

35

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

36

222-3166

BHD LOCK NUT,Blkhd, 1 1/8"-12

NUT - bulkhead

1шт.

37

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING, -116, 70 Duro, .737" ID x .103" Thk

2шт.

38

D75828

RING

BACKUP RING - internal O-ring

2шт.

39

222-3103

SLEEVE,3/4" Tube

SLEEVE - tube nut

1шт.

40

222-3112

NUT,1 1/8"-12

NUT - tube

1шт.

41

D121531

TUBE

TUBE - return, PTO

1шт.

222-3027

FITTING,1/2"-20 x 7/16"-20

ADAPTER ASSEMBLY - straight, Includes: Ref. 42 - 46

1шт.

42

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

43

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

44

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

O-RING, , rod -110, 90 Duro, .362" ID x .103" Thk

1шт.

45

222-3106

SLEEVE,1/4" Tube

SLEEVE - tube nut

1шт.

46

222-3113

TUBE NUT,1/2"-20

NUT - tube

1шт.

47

D91361

TUBE,0.25" OD x 6.6, 5.88" L

TUBE - drain, PTO motor

1шт.

222-3150

FITTING,1/2"-20 Fem O-Ring x 1/8" NPTF

ADAPTER ASSEMBLY - bulkhead, straight, Includes: Ref. 48 - 52

1шт.

48

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

49

222-3165

NUT,Blkhd, 1/2"-20

NUT - bulkhead

1шт.

50

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

O-RING, -010, 70 Duro, .239" ID x .070" Thk, adapter

1шт.

51

222-3106

SLEEVE,1/4" Tube

SLEEVE - tube nut

1шт.

52

222-3113

TUBE NUT,1/2"-20

NUT - tube

1шт.

53

D35288

WASHER

WASHER - copper

1шт.

54

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - 90 degree, 1/8 PT x 7/16 inch thread

1шт.
