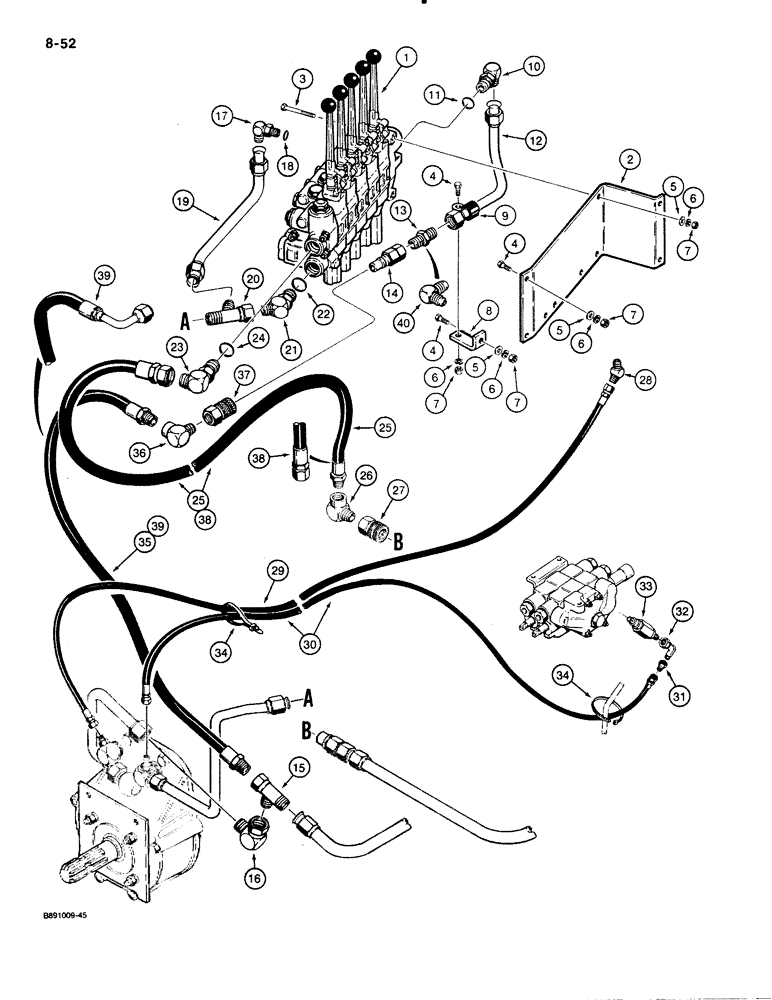

Запчасти Case 480E (8-052) - PTO HYDRAULIC CIRCUIT AND CONTROL (08) - HYDRAULICS

1

D122151

VALVE

SPARE PART CONTROL VALVE - PTO, parts list Figure 8-98

1шт.

2

D99470

PLATE

BRACKET - valve mounting

1шт.

3

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

BOLT, Hex, 5/16"-18 x 2 3/4", G5

3шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

5

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

8шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

9шт.

7

425-105

NUT,5/16"-18, G5

9шт.

8

D65647

BRACKET

BRACKET - clamp mounting

1шт.

9

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

CLAMP - medium c1osed, 3/4 inch diameter

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

12

D121543

TUBE

TUBE - return from valve

1шт.

13

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male, models with quick disconnect

1шт.

14

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 8-112, if used

1шт.

15

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

Return

1шт.

16

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

17

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

19

D121535

TUBE

TUBE - work port to excess flow

1шт.

20

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Connector

1шт.

21

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW - 45 degree, adjustable, 1-1/16-12 inch thread, Includes: Ref. 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

25

36232

HOSE ASSY.

HOSE - 32" (813 mm) long, control valve inlet, models with quick disconnect

1шт.

26

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Models with quick disconnect

1шт.

27

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 8-112, if used

1шт.

28

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

ELBOW - 45 degree, to hydraulic oil filter

1шт.

29

D99567

HOSE ASSY.

HOSE - drain

1шт.

30

D72021

HOSE

HOSE - 60" (1524 mm) long, PTO motor to relief valve

1шт.

31

218-790

REDUCER,37 Degree, 3/8" x 1/4" Tube

REDUCER - 3/8" x 1/4"

1шт.

32

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

33

G109313

VALVE, PRESSURE RELI

EF RELIEF VALVE ASSEMBLY - two stage, component parts not serviced separately, replaces standard main relief for models without PTO on Figure 8-66

1шт.

N13216

VALVE

KIT - valve, major repair, includes adapter, (2) O-rings, backup ring, shims and filter which service the hose end of the relief valve and are not serviced separately

1шт.

G110098

KIT

KIT - seal, includes (2) O-rings and (1) backup ring for control valve end of relief valve

1шт.

G110099

SCREEN

KIT - filter screen, includes filter screen, snap ring and retainer which are not serviced separately

1шт.

The filter and snap ring included in this kit may be replaced without disassembling the cartridge. They do not have to be replaced unless system contamination is high.

1шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

2шт.

35

D49118

HOSE

HOSE - 33" (838 mm) long, return, models with quick disconnect

1шт.

36

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Models with quick disconnect

1шт.

37

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 8-112, if used

1шт.

38

D144250

HOSE ASSY.

HOSE - 900 mm long, control valve inlet, models without quick disconnect

1шт.

39

D144251

HOSE ASSY.

HOSE - 1050 mm long, return, models without quick disconnect

1шт.

40

218-476

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

ELBOW - 90 degree, models without quick disconnect

1шт.
