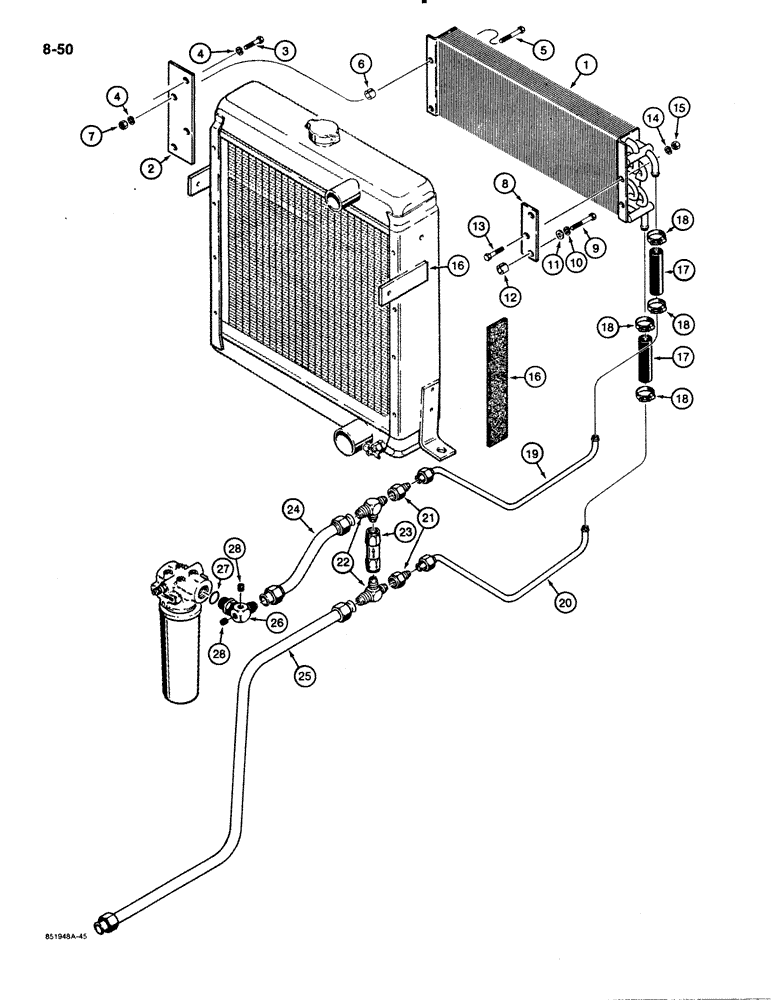

Запчасти Case 480E (8-050) - PTO HYDRAULIC COOLING SYSTEM (08) - HYDRAULICS

1

D76097

COOLER

COOLER - PTO hydraulic oil

1шт.

2

D136774

BRACKET

BRACKET - cooler, left-hand side

1шт.

3

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 16 mm

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, 8 mm - 1.25 x 25 mm

2шт.

6

R46103

SPACER

SPACER - cooler

2шт.

7

825-1108

NUT,Hex, M8, Cl 8

2шт.

8

D136775

BRACKET

BRACKET - cooler, right-hand side

1шт.

9

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 25 mm

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

2шт.

12

R46103

SPACER

SPACER - cooler

2шт.

13

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 16 mm

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

15

825-1108

NUT,Hex, M8, Cl 8

1шт.

16

D93351

FOAM

STRIP - rubber, 1/4" (6 mm) x 2-3/8" (60 mm) x 12" (305 mm), cut to required width and length from D86157 bulk rubber strip

1шт.

17

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

Inlet, Cut from S118388 Bulk hose, See Below, Cooler Tubes

2шт.

18

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose retaining, N0. 10 type F

4шт.

19

D136731

TUBE ASSY.

TUBE - from cooler upper tube

1шт.

20

D136733

TUBE ASSY.

TUBE - to cooler lower tube

1шт.

21

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

REDUCER - 5/8" x 1/2", tube

2шт.

22

218-566

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

TEE - fitting

2шт.

23

R24281

LOCK VALVE

VALVE - check

1шт.

24

D77945

TUBE,1" OD x 9.67, 2.91" L

TUBE - to filter

1шт.

25

D72130

HYD TUBE,1" OD x 17.68, 20.32" L

TUBE - return, from rear equipment hydraulic circuit

1шт.

26

D132008

ELBOW

ELBOW - 90 degree, adjustable, Includes: Ref. 27

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING - 1-11/16 x 1-13/32 x 1/8 inch

1шт.

28

221-849

PLUG,Hex Soc, 1/8"-27

PLUG - hex socket, 1/8 inch PT

2шт.

S118388

HOSE,0.50" ID x 168.00", SAE 100R3

Bulk

1шт.

D86157

RUBBER

STRIP - rubber, bulk, 1/4" (6 mm) x 4" (102 mm) x 23-1/4" (591 mm) long

1шт.
