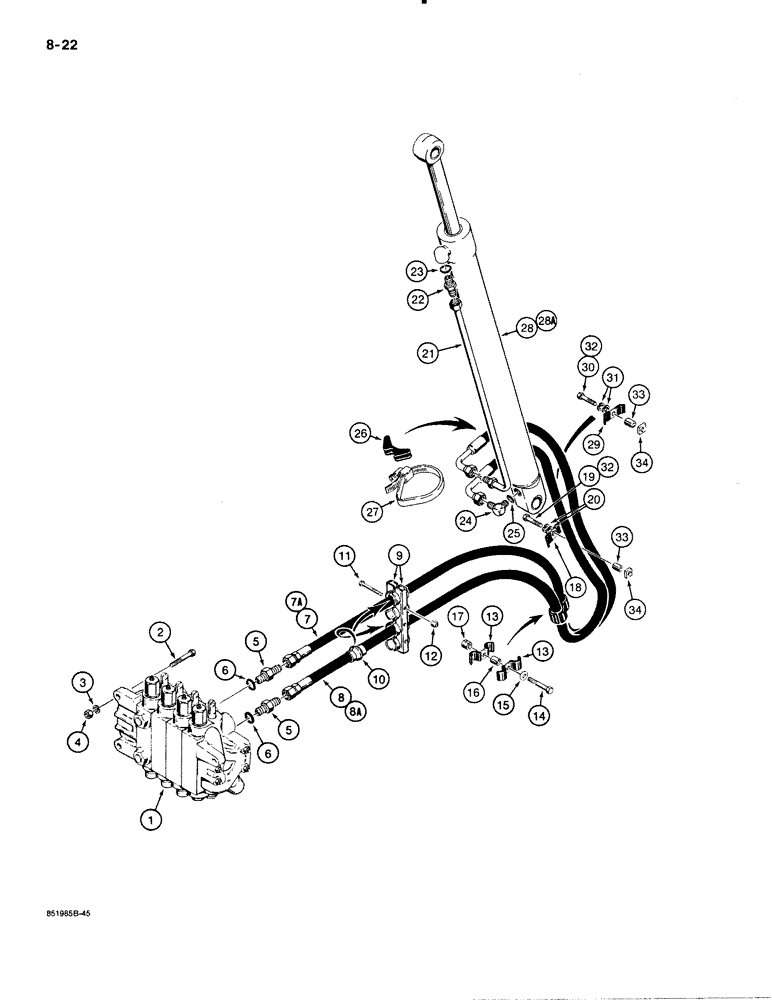

Запчасти Case 480E (8-022) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT, 12 FOOT AND 14 BACKHOES 480E MODELS ONLY (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, for correct assembly and components, see Figs. 8-74 and 8-76

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - valve ports, Includes: Ref. 6

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

7

D99159

HOSE

HOSE - 72-1/4" (1835 mm) long, from upper valve port, used on 12 foot backhoe models, if used

1шт.

7a

D129637

HOSE ASSY.

HOSE - 87-5/8" (2225 mm) long, from upper valve port, used on 14 foot backhoe models, if used

1шт.

8

D99158

HOSE

HOSE - 67-1/4" (1708 mm) long, from lower valve port, used on 12 foot backhoe models, if used

1шт.

8a

H432609

HOSE

HOSE - 82-11/16" (2100 mm) long, from lower valve port, used on 14 foot backhoe models, if used

1шт.

9

D99151

CLAMP

CLAMP - hose, includes two halves

1шт.

10

D99822

BUSHING

GROMMET - hose

2шт.

11

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 2 1/2", G5

3шт.

12

131-4

LOCK NUT,5/16"-18, GB

3шт.

13

D42833

CLAMP

CLAMP - hose, at swing tower

2шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

15

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

1шт.

16

R46103

SPACER

SPACER - clamp

1шт.

17

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

18

D40236

CLAMP

CLAMP - hose, left-hand side of boom

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Used on models with tapped holes in boom and without spacer or square nut, Refs. 33 and 34 Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

20

492-11038

LOCK WASHER,3/8"

1-2шт.

21

D144268

TUBE

TUBE - to rod end of dipper cylinder

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj., Incl. Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

D38648

BLOCK

SPACER - tube clamp

1шт.

27

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube

1шт.

28

G104844

CYLINDER

CYLINDER ASSEMBLY - dipper, used on 12 foot backhoe models, parts list Figure 8-126

1шт.

28a

REF

INSTRUCTION

CYLINDER ASSEMBLY - dipper, used on 14 foot backhoe models, for correct assembly and components, see Figures 8-128 and 8-130, not shown

1шт.

29

D40236

CLAMP

CLAMP - hose, left-hand side of boom, used on 14 foot backhoe models

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Used on models with tapped holes in boom and without spacer or square nut, Refs. 33 and 34 Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

31

492-11038

LOCK WASHER,3/8"

1-2шт.

32

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used on models with cage for square nut on boom and with Ref. 33 spacer

2шт.

33

D76211

SPACER

SPACER - used on models with cage on boom for square nut, Ref. 34

2шт.

34

25-226

SQUARE NUT,Sq, 3/8"-16

NUT - square, 3/8 inch NC, if used

2шт.
