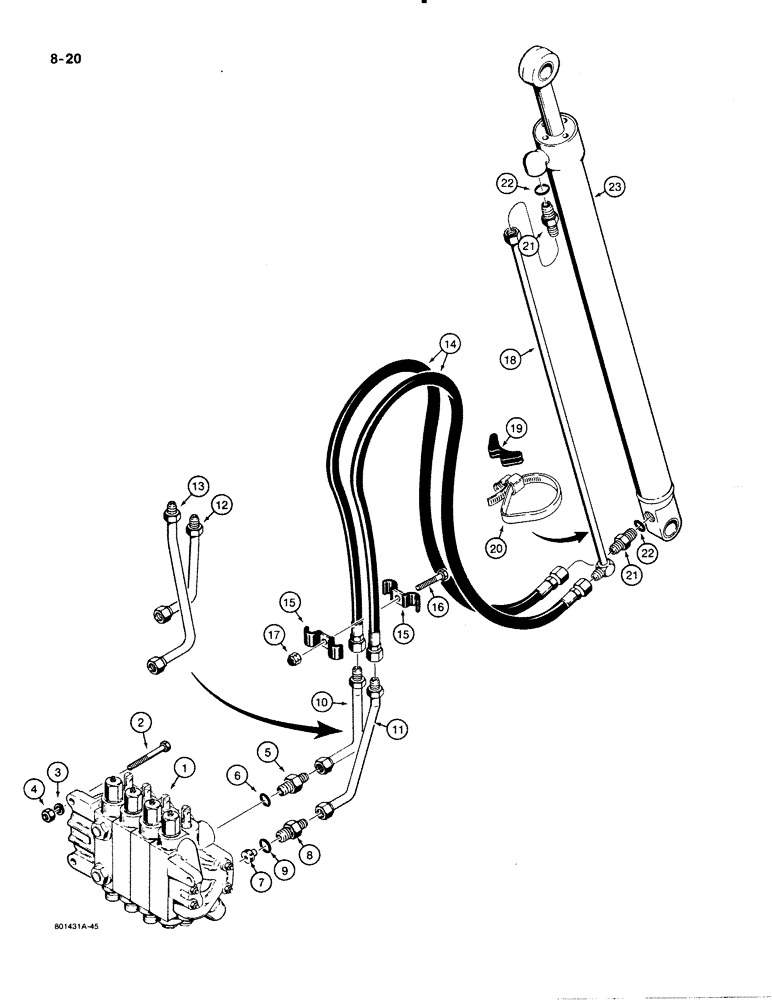

Запчасти Case 480E (8-020) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT, 12 FOOT AND 14 FOOT BACKHOES 480E MODELS ONLY (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, for correct assembly and components, see Figs. 8-74 and 8-76

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, upper port, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

7

D87325

RESTRICTOR

RESTRICTOR - lower port

1шт.

8

D99170

CONNECTOR, ELEC

CONNECTOR ADAPTER - straight, male, lower port, Includes: Ref.

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

10

D99120

HYD TUBE,15.88 mm OD x 157, 106 mm L

TUBE - upper port, models with foot swing

1шт.

11

D99122

HYD TUBE,15.88 mm OD x 190, 157 mm L

TUBE - lower port, models with foot swing, not used on models with hydraulic boom lock, see Figure 8-42 for boom lock hydraulic lines

1шт.

12

D99836

HYD TUBE,15.88 mm OD x 157, 101 mm L

TUBE - upper port, models with hand swing

1шт.

13

D99838

HYD TUBE,15.88 mm OD x 229, 157 mm L

TUBE - lower port, models with hand swing

1шт.

14

R22412

HOSE

HOSE - 50" (1270 mm) long, to boom cylinder

2шт.

15

D42833

CLAMP

CLAMP - hose

2шт.

16

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

BOLT, Hex, 7/16"-14 x 1 1/2", G5

1шт.

17

131-8

LOCK NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

18

D99141

HYD TUBE,15.88 mm OD x 1014 mm L

TUBE - to rod end of boom cylinder

1шт.

19

D38648

BLOCK

SPACER - clamp

1шт.

20

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP - tube, 4-5/16 to 5-1/4 inch

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

G102835

CYLINDER

CYLINDER ASSEMBLY - boom, parts list Figure 8-124

1шт.
