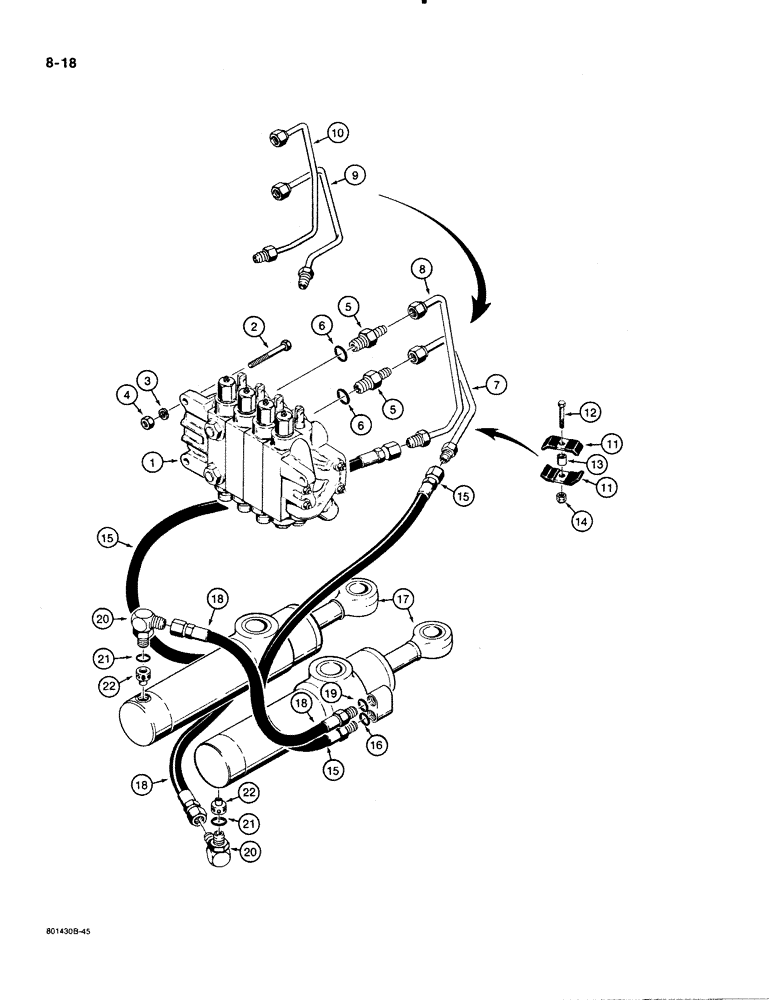

Запчасти Case 480E (8-018) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT, 480E MODELS ONLY (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, for correct assembly and components, see Figs. 8-74 and 8-76

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

3шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - valve ports, Includes: Ref. 6

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - 59/64 ID x 7/8 inch wide

1шт.

7

D99066

HYD TUBE,12.7 mm OD x 191, 80 mm L

TUBE - lower port to right-hand swing cylinder, used on models with foot swing

1шт.

8

D99068

HYD TUBE,0.5" OD

TUBE - upper port to left-hand swing cylinder, used on models with foot swing

1шт.

9

D122130

TUBE ASSY.

TUBE - lower port to right-hand swing cylinder, used on models with hand swing

1шт.

10

D122132

TUBE ASSY.

TUBE - upper port to left-hand swing cylinder, used on models with hand swing

1шт.

11

D42504

CLAMP

CLAMP - tube

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

13

D33551

BUSHING

SPACER - tube clamp

1шт.

14

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

15

D37219

HOSE

HOSE - 30" (762 mm) long, to cylinders, Includes: Ref. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

REF

INSTRUCTION

CYLINDER - swing, for correct assembly and components, see Figure 8-122

2шт.

18

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

HOSE - 24" (610 mm) long, swing cylinders, Includes: Ref. 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adjustable, Includes Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

D121529

STOP

RESTRICTOR - flow control

2шт.
