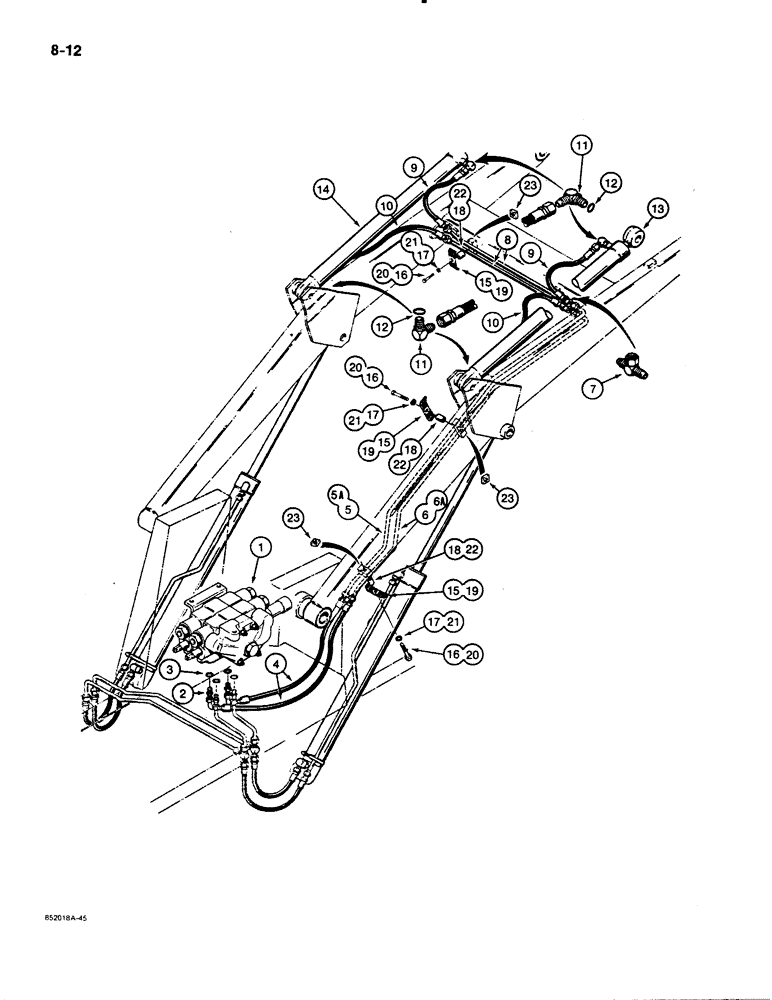

Запчасти Case 480E (8-012) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

G109859

VALVE, CHECK

CONTROL VALVE - loader, parts list Figure 8-66

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Short, O-ring boss, Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D138237

HOSE ASSY.

HOSE - 39" (1000 mm) long, from valve, special, replaces 36" (914 mm) long hose used on some models

2шт.

5

D69206

HYD TUBE,0.5" OD

TUBE - to rod end of cylinders, models without antirollback

1шт.

5

D99075

HYD TUBE,12.7 mm OD x 1500, 485 mm L

TUBE - to rod end of cylinders, models with antirollback, no longer used, order D138108 tube

1шт.

5a

D138108

TUBE ASSY.

TUBE - to rod end of cylinders

1шт.

6

D69208

HYD TUBE,0.5" OD x 61.95, 9.59" L

TUBE - to closed end of cylinders, models without antirollback

1шт.

6

D99077

HYD TUBE,12.7 mm OD x 1455, 540 mm L

TUBE - to closed end of cylinders, models with antirollback, no longer used, order D138106 tube

1шт.

6a

D138106

TUBE ASSY.

TUBE - to closed end of cylinders

1шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

TEE - adjustable, right-hand to left-hand cylinder

2шт.

8

D68439

TUBE

TUBE - to left-hand cylinder

2шт.

9

D69204

HOSE

HOSE - 20" (508 mm) long, to rod end of cylinders

2шт.

10

D73244

HOSE

HOSE - 30-1/2" (775 mm) long, to closed end of cylinders

2шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj., Incl. Ref. 12

4шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY- bucket, right-hand, for correct assembly and components, see Figure 8-116

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY- bucket, left-hand, for correct assembly and components, see Figure 8-116

1шт.

15

R17319

CLAMP

CLAMP - tube, without square nut, used with 5/16" hardware, replaced by item 19 clamp and 3/8" hardware on some models, if used

4шт.

16

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - hex, 5/16 NC x 1-1/4 inch, if used

4шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

4шт.

18

D33551

BUSHING

SPACER - tube clamp, used with item 15 clamp, if used

4шт.

19

D138055

CLAMP

CLAMP - tube, with square nut, used with 3/8" hardware, replaces item 15 clamp and 5/16" hardware on some models, if used

4шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used

4шт.

21

492-11038

LOCK WASHER,3/8"

If used

4шт.

22

D76208

SPACER

SPACER - tube clamp, used with item 19 clamp, if used

4шт.

23

25-226

SQUARE NUT,Sq, 3/8"-16

NUT - square, 3/8 inch NC, if used

4шт.
