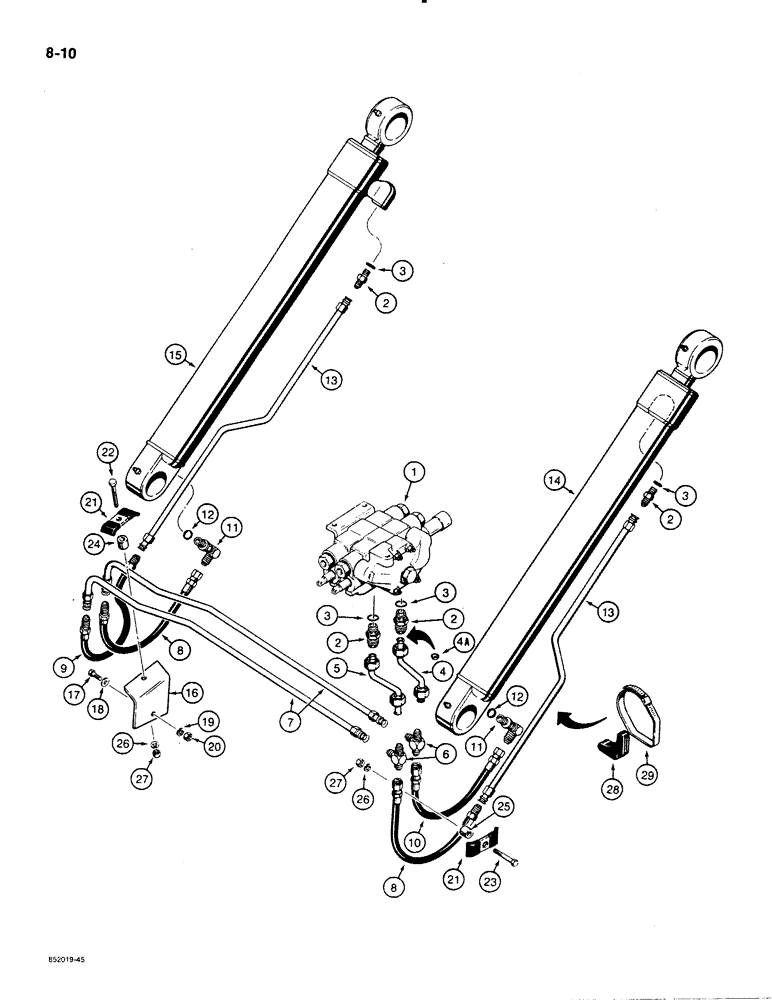

Запчасти Case 480E (8-010) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

G109859

VALVE, CHECK

CONTROL VALVE - loader, parts list Figure 8-66

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D127096

TUBE ASSY.

TUBE - loader control valve to closed end of cylinders

1шт.

4a

D74624

RESTRICTOR

RESTRICTOR - tube to closed end of cylinder

1шт.

5

D127094

TUBE ASSY.

TUBE - loader control valve to rod end of cylinders

1шт.

6

218-595

TEE,7/8"-14, 37 Degree

TEE - right-hand to left-hand cylinders

2шт.

7

D68600

HYD TUBE,0.625" OD x 35.2, 5.23" L

TUBE - to left-hand cylinders

2шт.

8

35646

HOSE

HOSE - 22-3/4" (578 mm) long, to closed end of left-hand cylinder and rod end of right-hand cylinder

2шт.

9

D38485

HOSE,12.7mm ID x 571.5mm L, SAE 100R2

HOSE - 22-1/2" (572 mm) long, to rod end of left-hand cylinder

1шт.

10

D27478

HOSE ASSY.

HOSE - 22" (559 mm) long, to closed end of right-hand cylinder

1шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj., Incl. Ref. 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

D69415

HYD TUBE,0.625" OD x 35, 3.4" L

TUBE - to rod end of lift cylinders

2шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY- lift, right-hand, for correct assembly and components, see Figure 8-114, rotated 180 degrees, Start Serial: 17001950

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY- lift, left-hand, for correct assembly and components see Figure 8-114

1шт.

16

D72449

BRACKET

BRACKET - tube clamp

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

18

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

1шт.

19

492-11038

LOCK WASHER,3/8"

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

21

D40236

CLAMP

CLAMP - tube

2шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

23

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

24

D76209

SPACER

SPACER - tube clamp

1шт.

25

D76210

SPACER

SPACER - tube clamp

1шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

28

D38648

BLOCK

SPACER - tube clamp

2шт.
