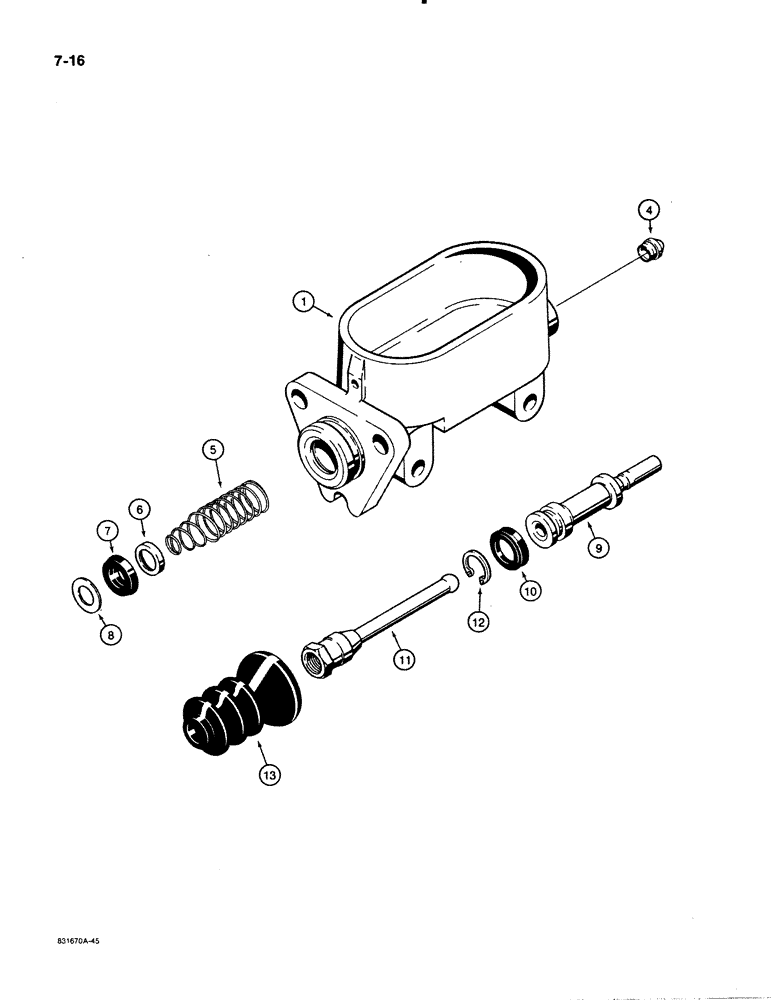

Запчасти Case 480E (7-16) - D127519 BRAKE MASTER CYLINDER (07) - BRAKES

D127519

CYLINDER,36.58mm Stroke

MASTER CYLINDER - brake, Includes: Ref. 1 - 13

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

4

N6825

SEAT

SEAT - tube

1шт.

N6823

PISTON

PISTON ASSEMBLY - master cylinder, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - cup

1шт.

7

N6830

CUP

SEAL - body

1шт.

8

N6828

GUARD

WASHER - flat, seal protector

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

10

N6829

SEAL

SEAL - double lip

1шт.

11

L32137

ROD

ROD - push

1шт.

12

A42256

SNAP RING,0.901", Int, #90

Master cylinder

1шт.

13

N8819

BOOT

BOOT - push rod

1шт.
