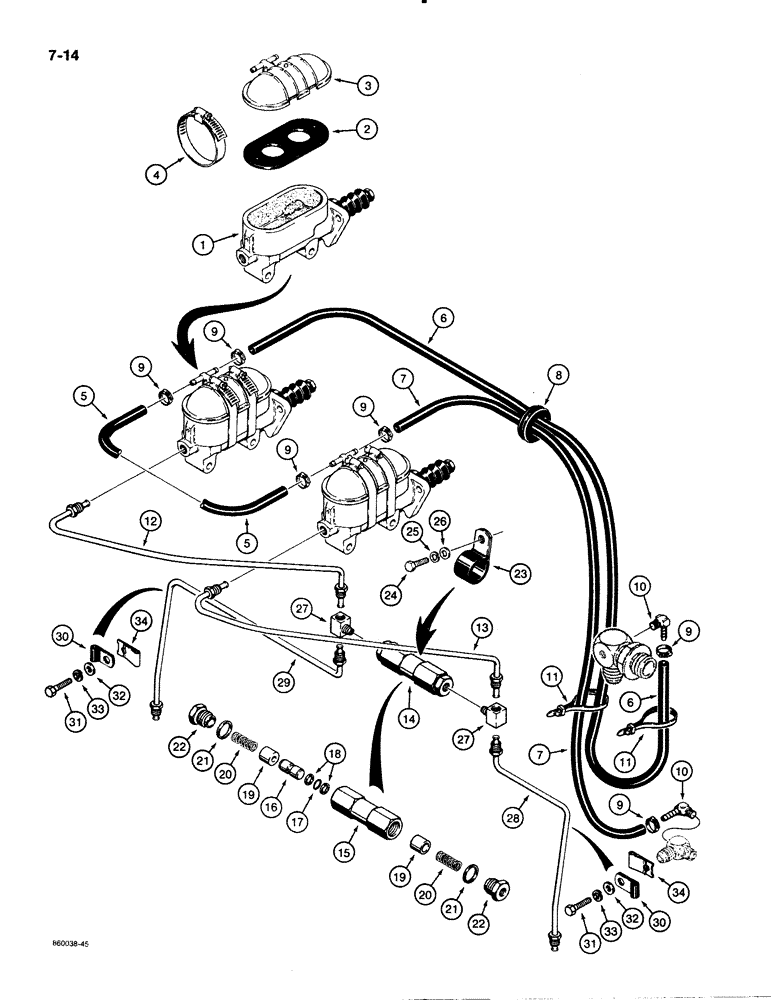

Запчасти Case 480E (7-14) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT, BRAKE MASTER CYLINDER TO HYDRAULIC OIL FILTER (07) - BRAKES

1

D127519

CYLINDER,36.58mm Stroke

MASTER CYLINDER - brake, parts list Figure 7-16

2шт.

2

D128313

GASKET

GASKET - master cylinder

2шт.

3

D127405

COVER

COVER - master cylinder

2шт.

4

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - cover to master cylinder

4шт.

5

D59944

FUEL HOSE,0.25" ID x 7.20", SAE 30R6 or SAE 30R7

Cylinder Connecting

1шт.

6

D128689

HYDRAULIC HOSE,6.75 mm ID x 1500.00 mm, SAE 30R6 or SAE 30R7

Cylinder to Hydraulic Oil Filter Return Tube Elbow

1шт.

7

REF

INSTRUCTION

HOSE - 48" (1219 mm) long, cylinder to steering valve return-to-tank hose, cut from A21561 bulk hose, see below

1шт.

8

D67915

GROMMET

GROMMET - rubber

1шт.

9

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose

6шт.

10

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

2шт.

For further hydraulic related parts, see equipment hydraulic system return lines on Figure 8-6 and steering control valve to tank hydraulics on Figure 5-4.

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

2шт.

12

D129200

TUBE ASSY.

TUBE - vertical, to left hand master cylinder

1шт.

13

D129202

TUBE ASSY.

TUBE - vertical, to right hand master cylinder

1шт.

14

D126650

VALVE

VALVE - equalizer, Includes: Ref. 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - equalizer valve

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - equalizer valve

1шт.

17

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

O-RING - 27/64 ID x 7/64 inch

1шт.

18

N9058

BACK-UP RING,0.424" ID x 0.63" OD x 0.103"

BACKUP RING - piston O-ring

2шт.

19

NSS

NOT SOLD SEPARAT

RETAINER - spring

2шт.

20

NSS

NOT SOLD SEPARAT

SPRING - piston

2шт.

21

A16673

GASKET

GASKET - plug, copper

2шт.

22

NSS

NOT SOLD SEPARAT

PLUG - equalizer valve end

2шт.

23

A141013

CLAMP,1 1/8", Insul, 3/8" Bolt

CLAMP - P-type, equalizer valve, mounts to firewall

1шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

26

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

1шт.

27

222-1071

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

TEE - tubes to equalizer valve

2шт.

28

D127540

TUBE ASSY.

TUBE - right-hand master cylinder

1шт.

29

D127536

TUBE ASSY.

TUBE - left-hand master cylinder

1шт.

30

49851

SHIELD

- retaining

2шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

32

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

2шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

2шт.

A21561

HOSE,0.25" ID x 25.00"

Bulk

1шт.
