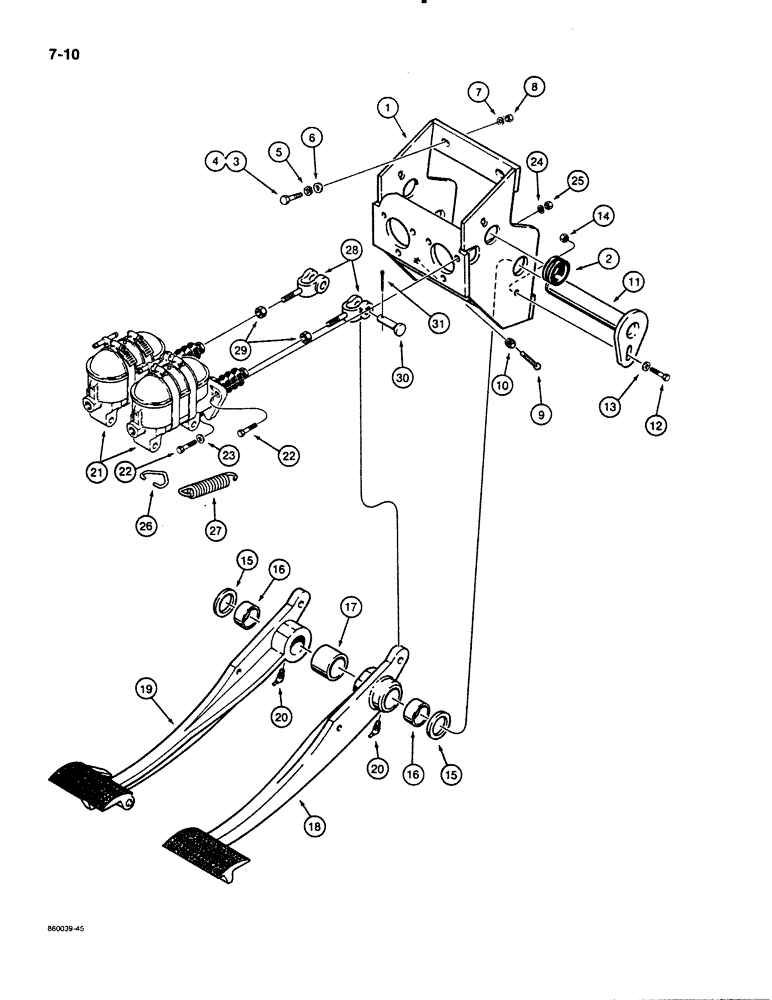

Запчасти Case 480E (7-10) - BRAKE PEDALS AND MOUNTING (07) - BRAKES

1

D127611

BRACKET

BRACKET - brake pedal and master cylinder mounting

1шт.

2

D67915

GROMMET

GROMMET - rubber

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

4

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Transaxle vent hose mounting, LH side only

1шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

4шт.

7

492-11038

LOCK WASHER,3/8"

Upper left-hand mounting hole only, for transaxle vent hose mounting

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Upper LH mounting hole only, for transaxle vent hose mounting 3/8"-16, G5

1шт.

9

85-628

SET,Sq Hd, 3/8"-16 x 1 3/4"

SPARE PART SET SCREW - square head, 3/8" - 16 NC x 1-3/4", cup point

1шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

11

D84355

SHAFT

SHAFT - pedal

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

13

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

1шт.

14

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

1шт.

15

195-2125

WASHER,1 5/16" x 2" x .109"

WASHER - pedal shaft

1шт.

16

D89845

SPACER

SPACER - pedal, outer

2шт.

17

D94176

SPACER

SPACER - pedal, center

1шт.

18

D90654

PEDAL

PEDAL - brake, right-hand

1шт.

19

D90751

PEDAL

PEDAL - brake, left-hand

1шт.

20

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 30 degree, special short, 1/8" NPT

2шт.

21

D127519

CYLINDER,36.58mm Stroke

MASTER CYLINDER - brake, parts list Figure 7-16, see Figure 7-14 for the cover, gasket, and clamps

2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

23

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

2шт.

24

492-11038

LOCK WASHER,3/8"

6шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

26

D120218

ANCHOR

ANCHOR - brake spring

2шт.

27

D120911

SPRING

SPRING - pedal return

2шт.

28

D94105

YOKE

UNIVERSAL JOINT YOKE CLEVIS - master cylinder

2шт.

29

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

NUT, Jam, 7/16"- 20, G5

2шт.

30

141-64

CLEVIS PIN,7/16" x 1.190"

2шт.

31

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.
