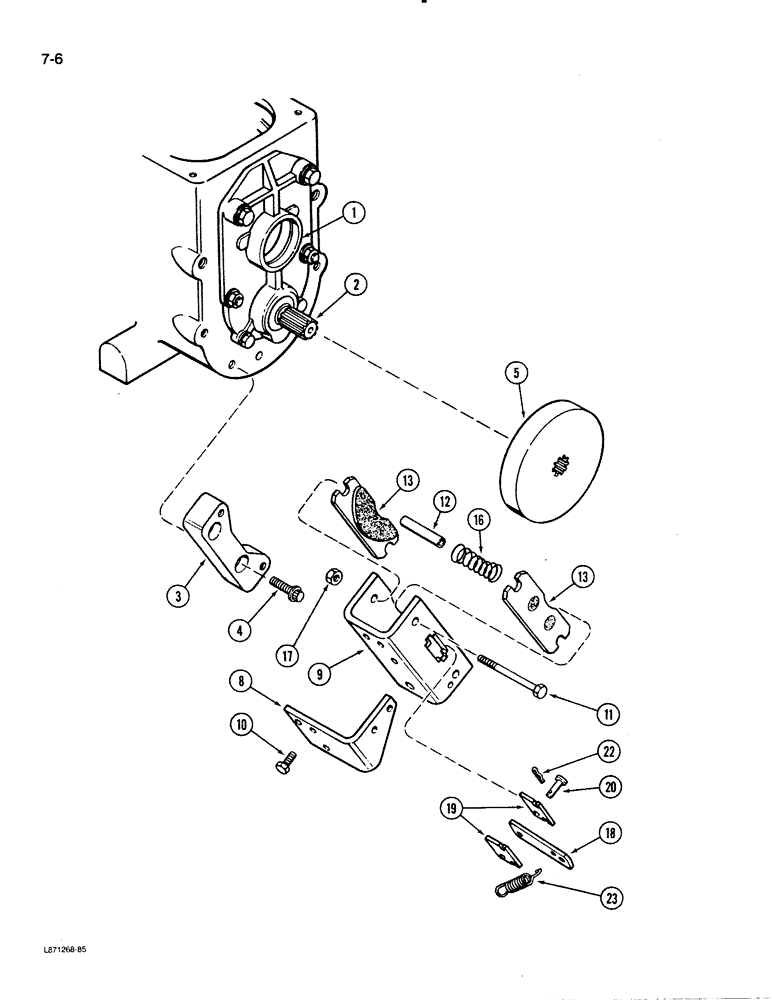

Запчасти Case 480E (7-06) - TRANSAXLE PARK BRAKE, 2 WHEEL DRIVE (07) - BRAKES

1

REF

INSTRUCTION

COVER - front, transmission housing (See Figure 6-50)

1шт.

2

REF

INSTRUCTION

COUNTERSHAFT - pinion (See Figure 6-58)

1шт.

3

A179065

LARGE PLATE

PLATE, LARGE PLATE - mounting, brake

1шт.

4

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

BOLT - 12 point flanged head, 1/2 NC x 1-1/2 inch

2шт.

5

A168790

DISC

DISC - brake

1шт.

A182779

BRAKE

BRAKE ASSEMBLY - park (Replaces A182271), Includes: Ref. 8 - 23

1шт.

8

A52380

BRACKET

BRACKET - mounting, cable

1шт.

9

A52256

HOUSING

HOUSING - brake

1шт.

10

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"-14 x 3/4", G5, Full Thd

2шт.

11

A52263

BOLT

BOLT - retaining, brake

2шт.

12

A52261

SPACER

SPACER - stator

2шт.

13

A182740

BRAKE PAD

PAD, BRAKE PAD - brake (Replaces A52255)

2шт.

16

A52262

SPRING

SPRING - compression

2шт.

17

NSS

NOT SOLD SEPARAT

NUT - hex jam, 7/16 inch NC (Discard)

2шт.

18

A52379

LEVER

LEVER - actuating

1шт.

19

A52257

PIVOT

PLATE - pivot

2шт.

20

A52259

PIN

PIN - clevis, pivot

1шт.

22

A52260

PIN

PIN - retainer, pivot pin

1шт.

23

A52264

SPRING

SPRING - extension

1шт.
