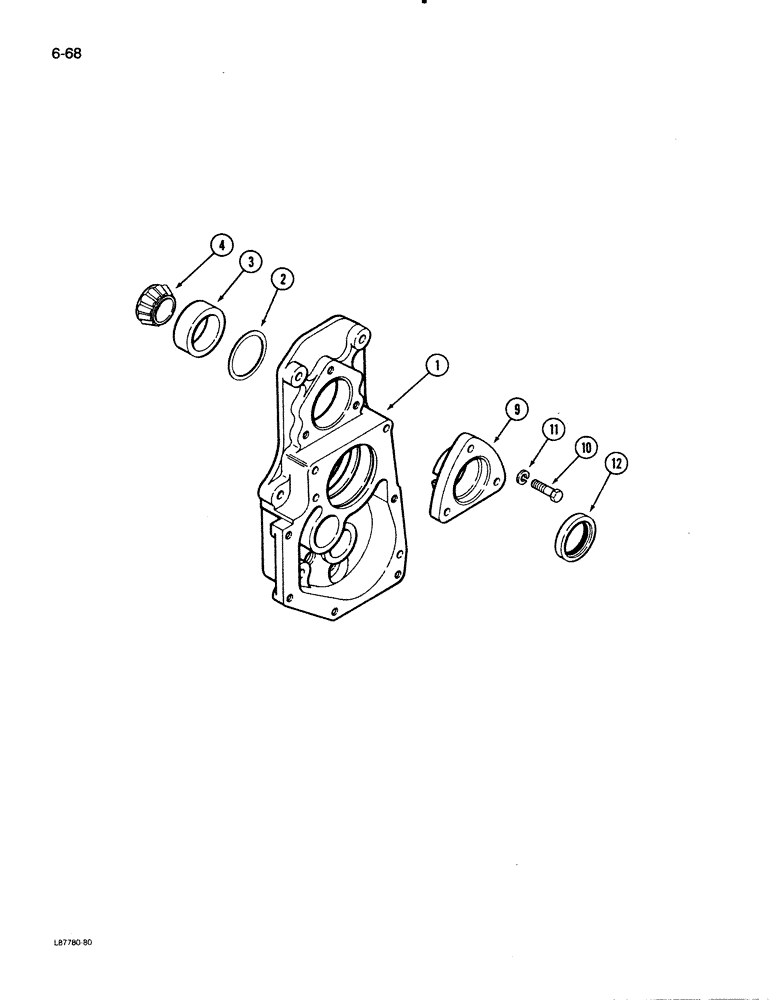

Запчасти Case 480E (6-68) - TRANSAXLE MAIN SHAFT ADJUSTING COVER, 4 WHEEL DRIVE (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - transfer gearbox (See Figure 6-66)

1шт.

2

G10341

SHIM,.005" Thk

Main shaft front bearing

1шт.

2

G10340

SHIM,.007" Thk

Mainshaft front bearing

1шт.

2

A51527

SHIM,.035" Thk

Main shaft front bearing

1шт.

3

H753574

BEARING CUP

CUP - main shaft bearing, front

1шт.

4

H753566

ROLLER BEARING

CONE - main shaft bearing, front

1шт.

9

A156606

BEARING COVER,2.624" ID x 0.69"

COVER - main shaft bearing adjusting

1шт.

10

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/2", G5

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

A154253

OIL SEAL

SEAL - main shaft

1шт.
