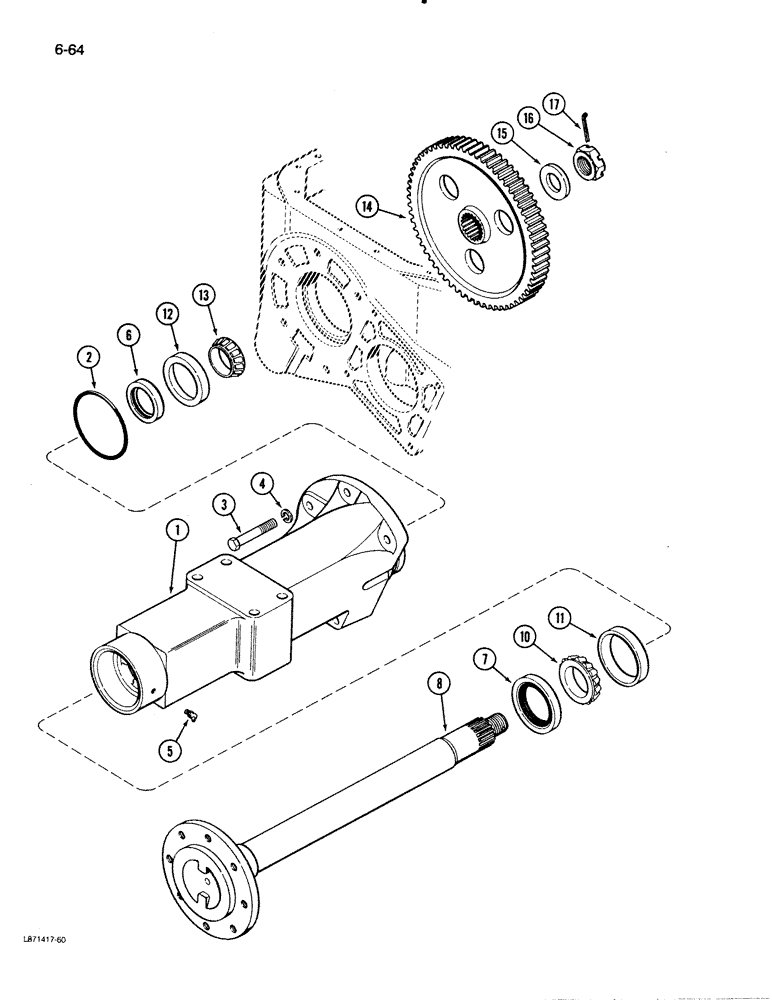

Запчасти Case 480E (6-64) - TRANSAXLE, REAR AXLE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A153737
HOUSING
HOUSING - axle, right (Uses 5/8 inch bolts)
1шт.
1
A153738
HOUSING
HOUSING - axle, left (Uses 5/8 inch bolts)
1шт.
1
A182761
HOUSING
HOUSING - axle, right (Shown) (Uses 3/4 inch bolts)
1шт.
1
A182762
HOUSING
HOUSING - axle, left (Uses 3/4 inch bolts)
1шт.
2
G10347
O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro
O-RING - axle housing to transmission case
2шт.
3
26-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 8
BOLT - hex, 5/8 NC x 2 inch, Grade 8
2шт.
3
26-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8
BOLT - hex, 5/8 NC x 2-1/4 inch, Grade 8
6шт.
3
26-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 8
BOLT - hex, 5/8 NC x 4 inch, Grade 8
2шт.
3
26-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8
BOLT - hex, 3/4 NC x 2-1/2 inch, Grade 8
2шт.
3
26-1244
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8
BOLT - hex, 3/4 NC x 2-3/4 inch, Grade 8
4шт.
3
166-137
12 PT SCREW,Flg, 3/4" - 10 x 2 3/4", Gr 8
BOLT - 12 point flanged, 3/4 NC x 2-3/4 inch, Grade 8
2шт.
3
26-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8
BOLT - hex, 3/4 NC x 4-1/2 inch, Grade 8
2шт.
4
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
10шт.
4
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
10шт.
5
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
2шт.
6
G13801
OIL SEAL
SEAL - oil, inner, 2-1/4 inch ID
2шт.
7
G13822
SEAL,73.66mm ID x 110.13mm OD x 11mm Thk
SEAL - oil, outer, 3 inch ID
2шт.
8
A154936
SHAFT
SHAFT - rear axle
2шт.
10
G15207
ROLLER BEARING
CONE - bearing, outer, 2-5/8 inch ID
2шт.
11
G15208
BEARING CUP,110mm OD x 18.82mm W
CUP - bearing, outer, 4-11/32 inch OD
2шт.
12
G10415
BEARING CUP
CUP - bearing, inner, 3-15/16 inch OD
2шт.
13
L33289
ROLLER BEARING,57.1565mm ID x 21.857mm Thk
CONE - bearing, inner, 2-1/4 inch ID
2шт.
14
A154940
PINION
GEAR - final drive (Bull gear) (64 external, 35 internal teeth)
2шт.
15
F62105
WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk
WASHER - take-up
2шт.
16
A30075
WHEEL NUT
NUT - hex slotted, 1/2 inch NF
1шт.
Выбрано товаров: 26
