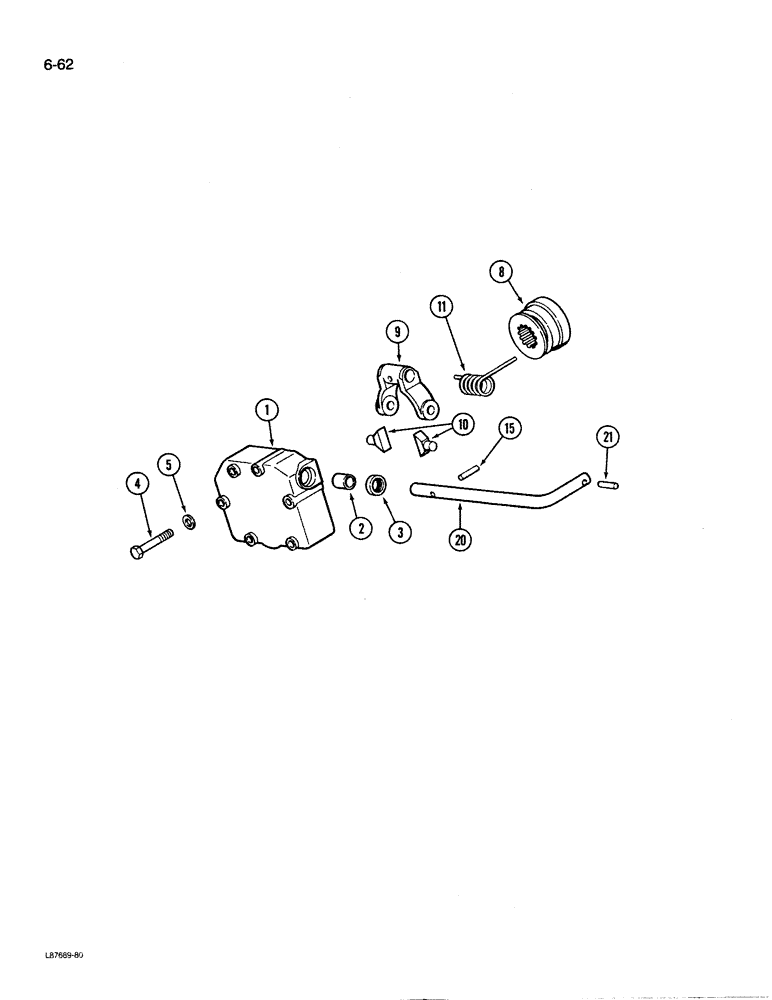

Запчасти Case 480E (6-62) - TRANSAXLE, DIFFERENTIAL LOCK (06) - POWER TRAIN

1

A168525

COVER ASSY

COVER ASSEMBLY - lock (On right brake housing), Includes: Ref. 2 - 3

1шт.

2

B15768

BUSHING

BUSHING - cover

1шт.

3

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

SEAL - oil (Replaces G105700)

1шт.

4

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 2 1/2", G5

6шт.

5

195-103

WASHER,5/16"

WASHER - flat, 3/8 x 7/8 x 5/64 inch

6шт.

8

A156373

COLLAR

COLLAR - differential lock

1шт.

9

A168524

LEVER

LEVER - collar throw-out

1шт.

10

A38750

FINGER

FINGERS - lever to collar (Replaces A65101)

2шт.

11

A156559

SPRING

SPRING - throw-out lever

1шт.

15

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

20

A157734

SHAFT

SHAFT - actuating

1шт.

21

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , If equipped 3/16" x 1 1/4", Slotted

1шт.
