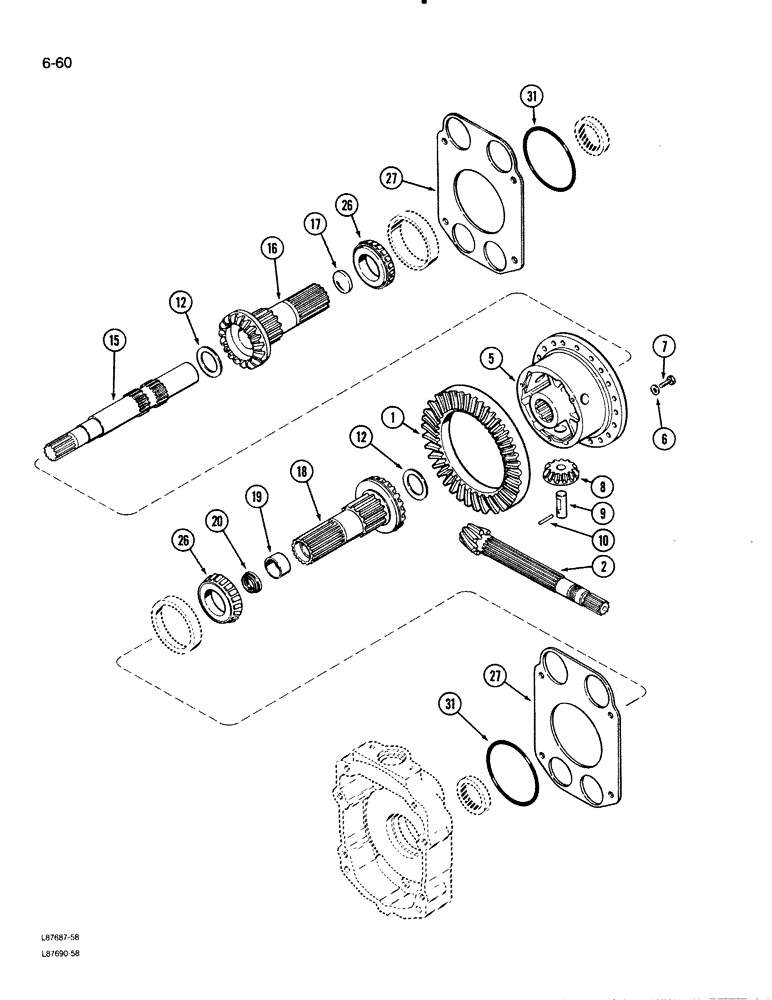

Запчасти Case 480E (6-60) - TRANSAXLE, DIFFERENTIAL (06) - POWER TRAIN

REF

INSTRUCTION

SHAFT AND GEAR SET - transaxle (Matched set) (See Figure 6-60), Includes: Ref. 1 - 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (Order set)

1шт.

2

NSS

NOT SOLD SEPARAT

COUNTERSHAFT - pinion (Order set)

1шт.

5

A179986

HUB

WHEEL - center

1шт.

6

A155847

WASHER

WASHER - wheel bolt

20шт.

7

28-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8, Full Thd

BOLT - hex, 3/8 NF x 7/8 inch

20шт.

8

A179762

PINION

GEAR - pinion

3шт.

9

A153711

PIN,22.16mm OD x 62.74mm L

PIN - pinion gear

3шт.

10

A140705

PIN

PIN - groove, 3/16 x 2 inch

3шт.

12

A154141

WASHER

WASHER - thrust, center wheel, 0.079 inch

1шт.

12

A153717

WASHER

WASHER - thrust, center wheel, 0.084 inch

1шт.

12

A153712

WASHER

WASHER - thrust, center wheel, 0.089 inch

1шт.

12

A153713

WASHER

WASHER - thrust, center wheel, 0.094 inch

1шт.

12

A153714

WASHER

WASHER - thrust, center wheel, 0.099 inch

1шт.

12

A153715

WASHER

WASHER - thrust, center wheel, 0.104 inch

1шт.

12

A153716

WASHER

WASHER - thrust, center wheel, 0.109 inch

1шт.

15

A156376

SHAFT

SHAFT - cross

1шт.

16

A158745

GEAR

GEAR ASSEMBLY - side, left hand, Includes: Ref. 17

1шт.

17

41-1028

PLUG,Cup, 1 3/4"

PLUG - expansion, 1-3/4 inch

1шт.

18

A179107

GEAR

GEAR ASSEMBLY - side. right hand, Includes: Ref. 19

1шт.

19

A153719

BUSHING,38.16mm ID x 44.55mm OD x 20.65mm L

Gear

1шт.

20

A179053

OIL SEAL

SEAL - oil, right hand side gear

2шт.

26

A7891

ROLLER BEARING

CONE - bearing, 2-1/2 inch ID

2шт.

27

A179076

SHIM,.007" Thk

Bearing carrier

1шт.

27

A179075

SHIM,.005" Thk

Bearing carrier

1шт.

27

A179077

SHIM

SHIM - bearing carrier, 0.010 inch

1шт.

31

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

O-RING - housing

2шт.
