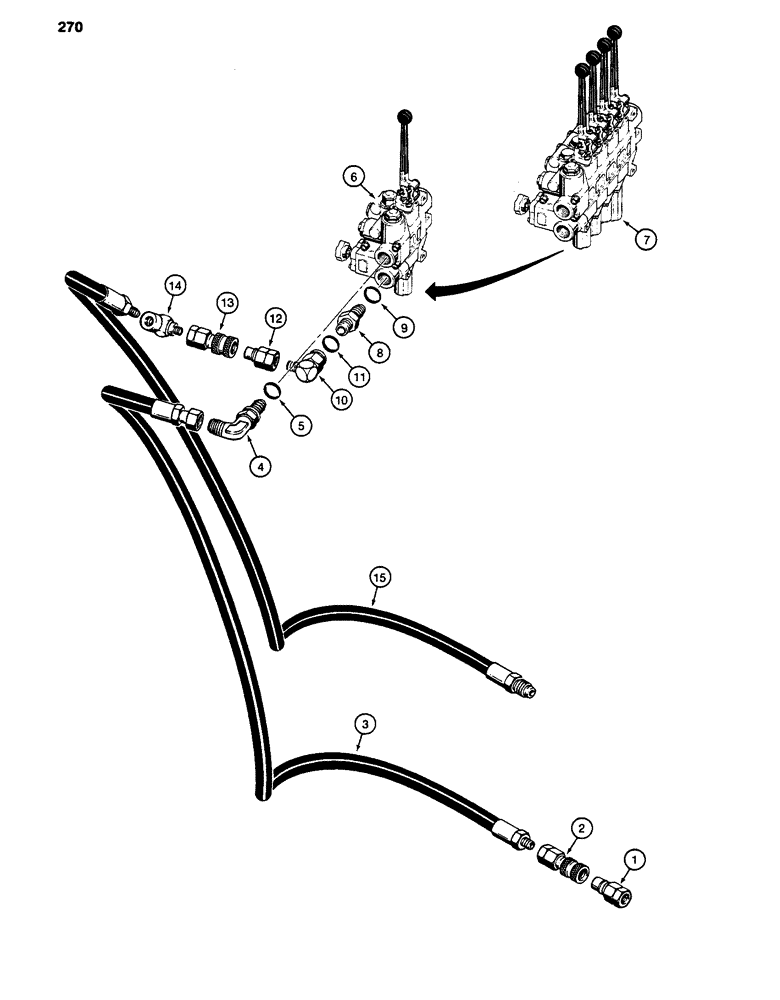

Запчасти Case 480D (270) - THREE-POINT HITCH VALVE HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 364

1шт.

2

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 364

1шт.

3

36232

HOSE ASSY.

HOSE - 32" (813 mm) long, control valve inlet

1шт.

4

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, male, Incl. Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

6

REF

INSTRUCTION

CONTROL VALVE - three-point hitch, one spool, parts list Figure 342

1шт.

controls and mounting on Figure 450

1шт.

7

REF

INSTRUCTION

CONTROL VALVE - four or five spool, four spool shown, parts list Figure

1шт.

344, controls and mounting on Figure 450

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

10

218-990

ELBOW,90 Degree, 1 3/16"-12 Sw x 3/4" NPT

- swivel, 90 degree, male, Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

12

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 364

1шт.

13

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 364

1шт.

14

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

15

D49118

HOSE

- 33" (838 mm) long, control valve outlet

1шт.
