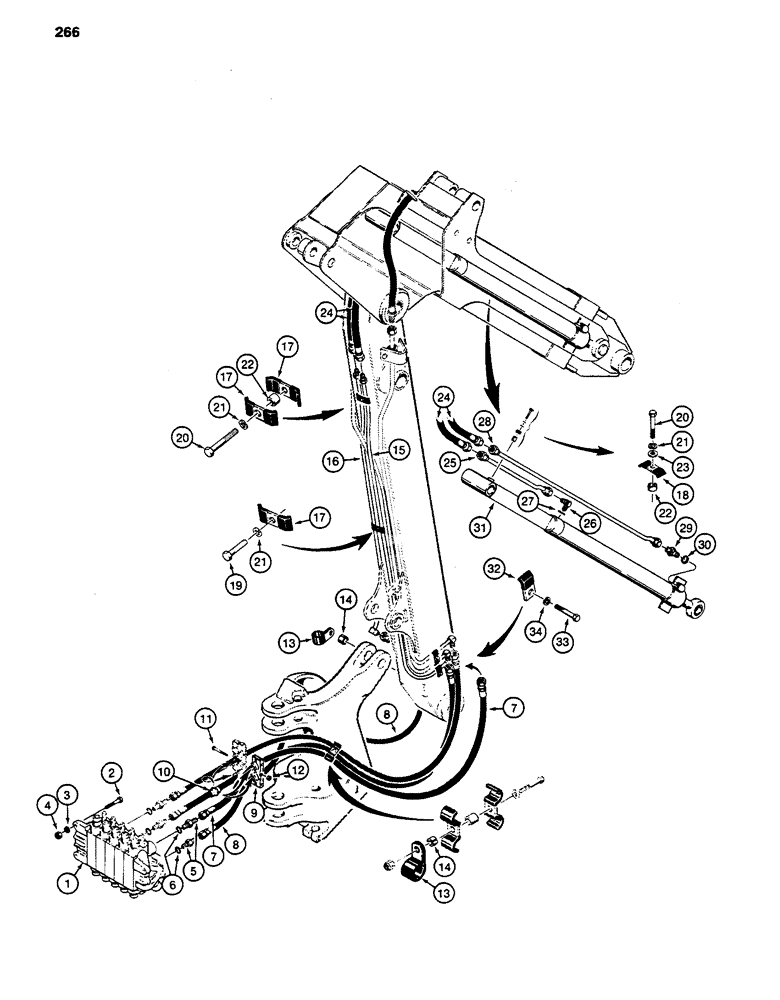

Запчасти Case 480D (266) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT, 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figures 314 and 316

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, valve ports, Incl. Ref. 6

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

7

D99789

HOSE

- 54" (1372 mm) long, right-hand, from upper valve port

1шт.

8

D99788

HOSE

- 66" (1676 mm) long, left-hand, from lower valve port

1шт.

9

D99844

CLAMP

- hose, includes two halves, for larger clamp for dipper and bucket

1шт.

hoses, see Figures 256 - 264, Ref. 9

1шт.

10

D99822

BUSHING

GROMMET - hose

2шт.

11

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex head, 5/16" - 18 NC x 4-1/2", plated

3шт.

12

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

3шт.

13

R21385

CLAMP

- hose, swing tower and boom side

3шт.

14

R46103

SPACER

- clamp, swing tower only, see Figures 262 and 264 Refs. 13-17

1шт.

for related clamps and hardware

2шт.

15

D99208

HYD TUBE,0.625" OD

TUBE - on boom, right-hand

1шт.

16

D99210

HYD TUBE,15.88 mm OD x 1197, 104 mm L

TUBE - on boom, left-hand

1шт.

17

A13622

PLATE, LOCKING

CLAMP - tube

3шт.

18

D42504

CLAMP

- tube

1шт.

19

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

D76209

SPACER

- tube clamp

2шт.

23

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

24

D52565

HOSE

- 43" (1067 mm) long, to dipper extension cylinder

2шт.

25

D52572

TUBE

- to closed end of dipper extension cylinder

1шт.

26

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj., Incl. Ref. 27 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

28

D54362

TUBE

- to rod end of dipper extension cylinder

1шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

31

G101203

CYLINDER

- dipper extension, parts list Figure 384

1шт.

32

D99202

CLAMP

- hose

1шт.

33

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

34

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.
