Запчасти Case 480D (264) - BACKHOE BUCKET CYL HYD CIRCUIT,MODELS W/ENTEND DIPPER 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS

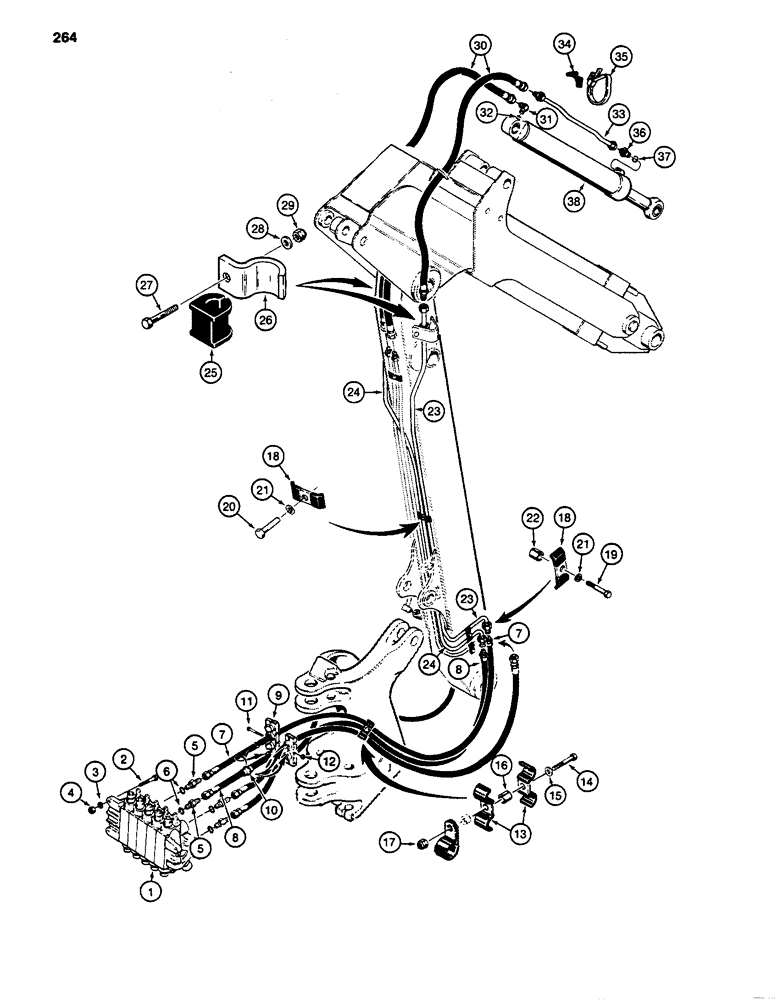

Схема запчастей Case 480D - (264) - BACKHOE BUCKET CYL HYD CIRCUIT,MODELS W/ENTEND DIPPER 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figures 314 and 316

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, valve ports, Includes: Ref. 6

3шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

7

D121618

HOSE ASSY.

HOSE - 51-3/16" (1300 mm) long, from upper valve port

1шт.

D121618 hose (Ref. 7) and L53351 hose (Ref. 8) are switched around at hydraulic tubes (Refs. 23 and 24) on models with hand swing.

1шт.

8

L53351

HOSE

- 45" (1143 mm) long, from lower valve port

1шт.

D121618 hose (Ref. 7) and L53351 hose (Ref. 8) are switched around at hydraulic tubes (Refs. 23 and 24) on models with hand swing.

1шт.

9

D99151

CLAMP

- hose, includes two halves

1шт.

10

D99822

BUSHING

GROMMET - hose

2шт.

11

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex head, 5/16" - 18 NC x 4-1/2", plated

3шт.

12

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

3шт.

13

D42833

CLAMP

- hose, at swing tower

2шт.

14

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

For extendable dipper hose Hex, 3/8"-16 x 2 1/2", G5

1шт.

clamp and spacer, see Figure 266, Refs. 13 and 14

1шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

16

R46103

SPACER

- clamp, see Figure 266 for second spacer Ref. 14

1шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

18

D40236

CLAMP

- tube, at boom

2шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

D76209

SPACER

- tube clamp, side of boom

1шт.

23

D121624

TUBE

- right-hand, uses tubes with 90 degree bend

1шт.

24

D121626

TUBE

- left-hand, uses tubes with 90 degree bend

1шт.

25

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

2шт.

26

L104914

CLAMP

- tube

2шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

28

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

29

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

30

L53350

HOSE ASSY.

HOSE - 55" (1397 mm) long, to bucket cylinder

2шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj., Incl. Ref. 32 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

33

D121628

TUBE ASSY.

TUBE - to rod end of bucket cylinder

1шт.

34

D38648

BLOCK

SPACER - tube clamp

2шт.

35

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

36

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

38

G103503

CYLINDER BLOCK

CYLINDER - bucket, parts list Figure 380

1шт.

Выбрано товаров: 41
