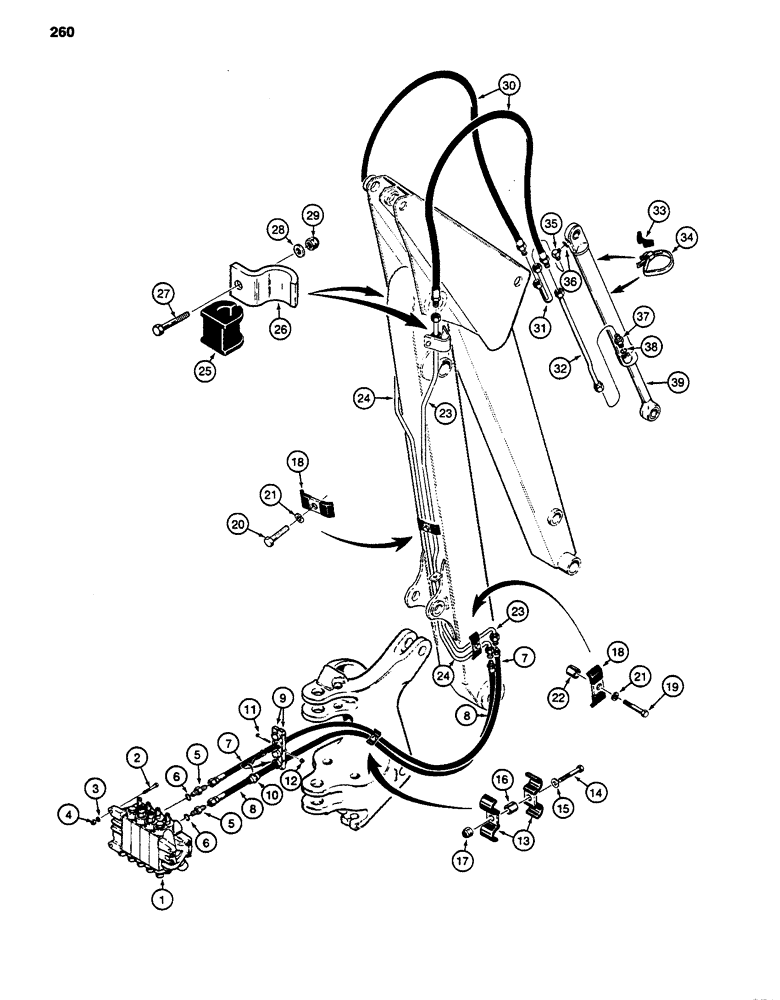

Запчасти Case 480D (260) - BACKHOE BUCKET CYL HYD CIRCUIT MODEL W/O ENTEND DIPR USE BEF. BACKHOE SN5444486 &AFT.480DMODEL ONLY (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figures 314 and 316

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, valve ports, Includes: Ref. 6

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

7

D121618

HOSE ASSY.

HOSE - 51-3/16" (1300 mm) long, from upper valve port

1шт.

D121618 hose (Ref. 7) and L53351 hose (Ref. 8) are switched around at hydraulic tubes (Refs. 23 and 24) on models with hand swing.

1шт.

8

L53351

HOSE

- 45" (1143 mm) long, from lower valve port

1шт.

D121618 hose (Ref. 7) and L53351 hose (Ref. 8) are switched around at hydraulic tubes (Refs. 23 and 24) on models with hand swing.

1шт.

9

D99151

CLAMP

- hose, includes two halves

1шт.

10

D99822

BUSHING

GROMMET - hose

2шт.

11

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

3шт.

12

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

3шт.

13

D42833

CLAMP

- hose, at swing tower

2шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

16

R46103

SPACER

- clamp

1шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

18

A13622

PLATE, LOCKING

CLAMP - tube, at boom

2шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

D76209

SPACER

- tube clamp, side of boom

1шт.

23

D121624

TUBE

- right-hand

1шт.

24

D121626

TUBE

- left-hand

1шт.

25

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

2шт.

26

L104914

CLAMP

- tube

2шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

28

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

29

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

30

L48931

HOSE

- 35" (889 mm) long, to bucket cylinder

2шт.

31

D121620

TUBE

- to closed end of bucket cylinder

1шт.

32

D121622

TUBE

- to rod end of bucket cylinder

1шт.

33

D38648

BLOCK

SPACER - tube clamp

2шт.

34

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

35

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj., Incl. Ref. 36 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

37

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

39

G103503

CYLINDER BLOCK

CYLINDER - bucket, parts list Figure 380

1шт.
