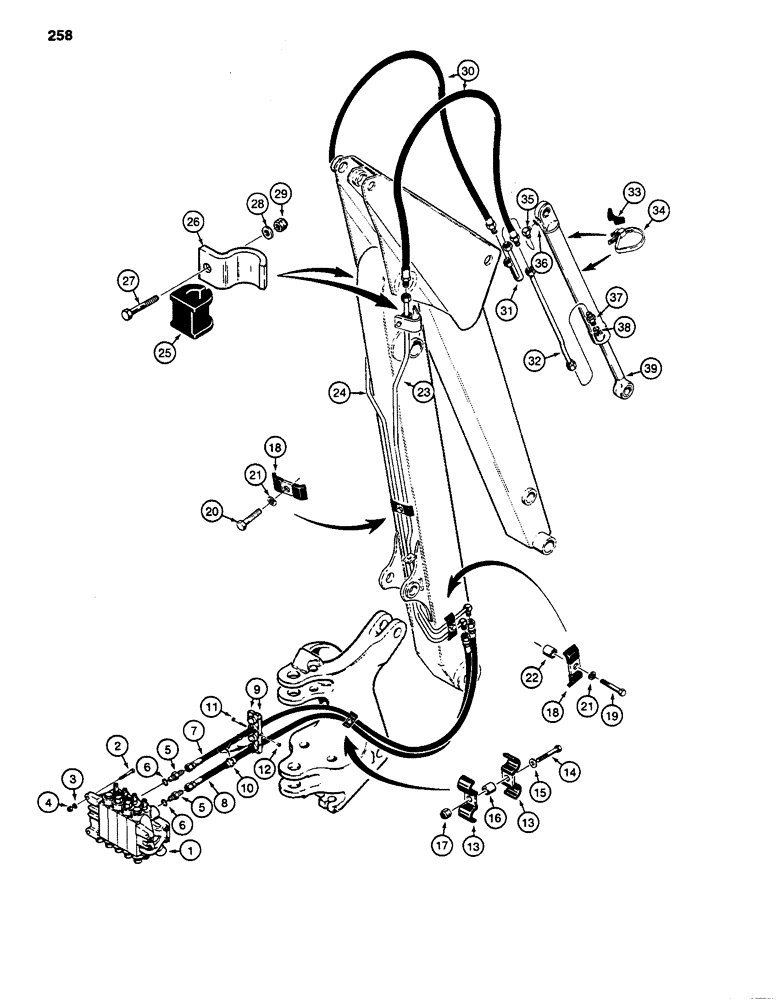

Запчасти Case 480D (258) - BACKHOE BUCKET CYL HYD CIRCUIT MODEL W/O EXTEND DIPPER USED BEFORE BACKHOE SN5444456 480D MODEL ONLY (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figures 314 and 316

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, valve ports, Includes: Ref. 6

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

7

D99157

HOSE

- 51" (1295 mm) long, from upper valve port

1шт.

D99157 hose (Ref. 7) and D99146 hose (Ref. 8) are switched around at hydraulic tubes (Ref. 23 and 24) on models with hand swing.

1шт.

8

D99146

HOSE

- 47" (1193 mm) long, from lower valve port

1шт.

D99157 hose (Ref. 7) and D99146 hose (Ref. 8) are switched around at hydraulic tubes (Ref. 23 and 24) on models with hand swing.

1шт.

9

D99151

CLAMP

- hose, includes two halves

1шт.

10

D99822

BUSHING

GROMMET - hose

2шт.

11

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

3шт.

12

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

3шт.

13

D42833

CLAMP

- hose, at swing tower

2шт.

14

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

16

R46103

SPACER

- clamp

1шт.

17

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

18

D40236

CLAMP

- tube, at boom

2шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

D36040

BUSHING

SPACER - tube clamp, side of boom

1шт.

23

D99137

HYD TUBE,19.05 mm OD

TUBE - right-hand

1шт.

24

D99139

HYD TUBE,19.05 mm OD x 1711.5, 240.9 mm L

TUBE - left-hand

1шт.

25

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

2шт.

26

D74192

CLAMP

- tube

2шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

28

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

29

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

30

D39802

TUBE

HOSE - 32-1/2" (826 mm) long, to bucket cylinder

2шт.

31

D46679

TUBE

- to closed end of bucket cylinder

1шт.

32

D99169

HYD TUBE,19.05 mm OD x 548, 44.5 mm L

TUBE - to rod end of bucket cylinder

1шт.

33

D38648

BLOCK

SPACER - tube clamp

2шт.

34

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

35

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

37

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

39

G103503

CYLINDER BLOCK

CYLINDER - bucket, parts list Figure 380

1шт.
