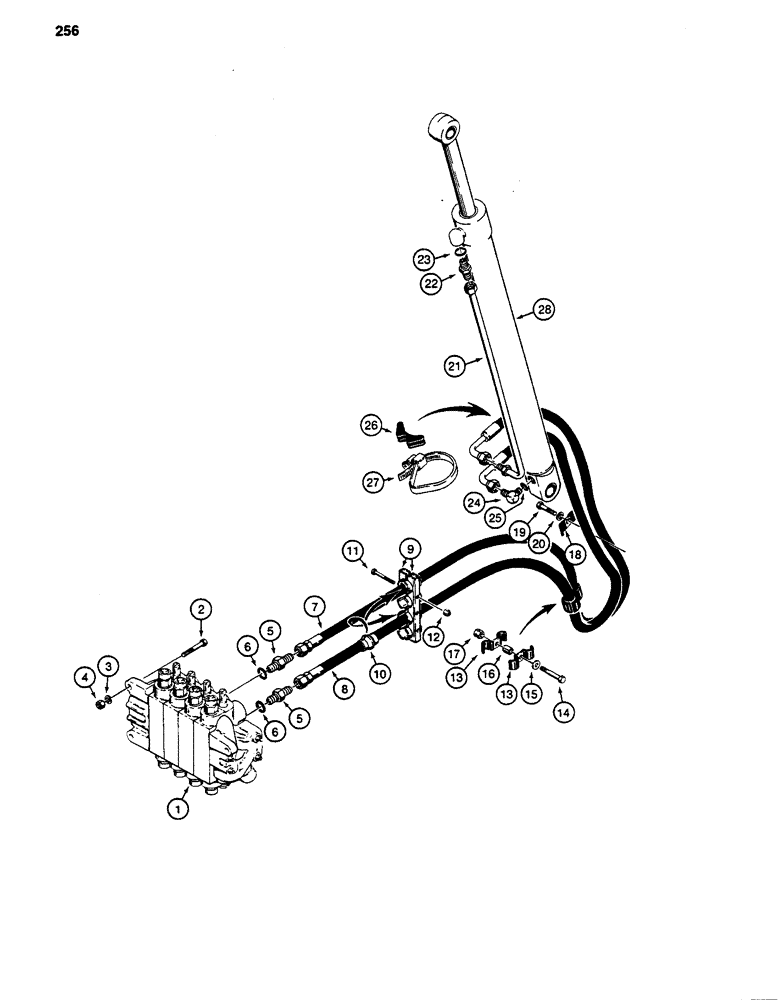

Запчасти Case 480D (256) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT, 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CONTROL VALVE - backhoe, parts list Figures 314 and 316
1шт.
2
113-412
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
3шт.
3
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
4
129-105
NUT,Hex, 1/2" - 13, Gr 5
3шт.
5
218-5063
HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER - straight, valve ports, Includes: Ref. 6
2шт.
6
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- adapter
1шт.
7
D99159
HOSE
- 72-1/4" (1835 mm) long, from upper valve port
1шт.
8
D99158
HOSE
- 67-1/4" (1708 mm) long, from lower valve port
1шт.
9
D99151
CLAMP
- hose, includes two halves
1шт.
10
D99822
BUSHING
GROMMET - hose
2шт.
11
113-111
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
3шт.
12
131-4
LOCK NUT,5/16"-18, GB
NUT - hex, self-locking, 5/16" - 18 NC
3шт.
13
D42833
CLAMP
- hose, at swing tower
2шт.
14
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
15
195-525
WASHER,3/8", SAE
- flat, 3/8", plated
1шт.
16
R46103
SPACER
- clamp
1-2шт.
17
131-52
NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8" - 16 NC, plated
1шт.
18
D40236
CLAMP
- hose, at boom
1шт.
19
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
20
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
21
D134453
TUBE
- to rod end of dipper cylinder
1шт.
22
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER - straight, Includes: Ref. 23
1шт.
23
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk, Adapter
1шт.
24
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
Adj., Incl. Ref. 25 90º, 7/8"-14, 37º x 7/8"-14, O-Ring
1шт.
25
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk, Elbow
1шт.
26
D38648
BLOCK
SPACER - tube clamp
1шт.
27
214-269
HOSE CLAMP,#72, 4.06" - 5", Type F Worm
CLAMP - tube
1шт.
Выбрано товаров: 28
