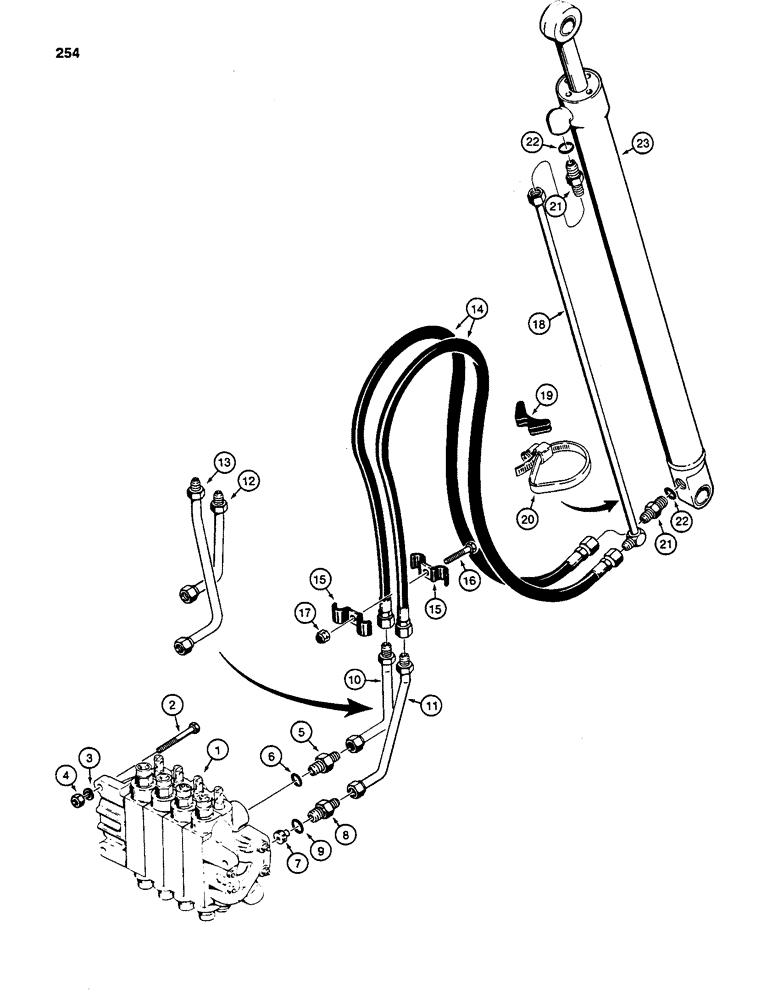

Запчасти Case 480D (254) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT, 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figures 314 and 316

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, top port, Includes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

7

D87325

RESTRICTOR

- bottom port

1шт.

8

D99170

CONNECTOR, ELEC

ADAPTER - straight, male, bottom port, Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

10

D99120

HYD TUBE,15.88 mm OD x 157, 106 mm L

TUBE - top port, models with foot swing

1шт.

11

D99122

HYD TUBE,15.88 mm OD x 190, 157 mm L

TUBE - bottom port, models with foot swing, not used on models with hydraulic boom lock, see Figure 268 for boom lock hydraulic lines

1шт.

12

D99836

HYD TUBE,15.88 mm OD x 157, 101 mm L

TUBE - top port, models with hand swing

1шт.

13

D99838

HYD TUBE,15.88 mm OD x 229, 157 mm L

TUBE - bottom port, models with hand swing

1шт.

14

R22412

HOSE

- 50" (1270 mm) long, to boom cylinder

2шт.

15

D42833

CLAMP

- hose

2шт.

16

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

17

131-8

LOCK NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

18

D99141

HYD TUBE,15.88 mm OD x 1014 mm L

TUBE - to rod end of boom cylinder

1шт.

19

D38648

BLOCK

SPACER - clamp

1шт.

20

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP - tube

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes: Ref. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

23

G102835

CYLINDER

- boom, parts list Figure 376

1шт.
