(252) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT, 480D MODELS ONLY

Запчасти Case 480D (252) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT, 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS

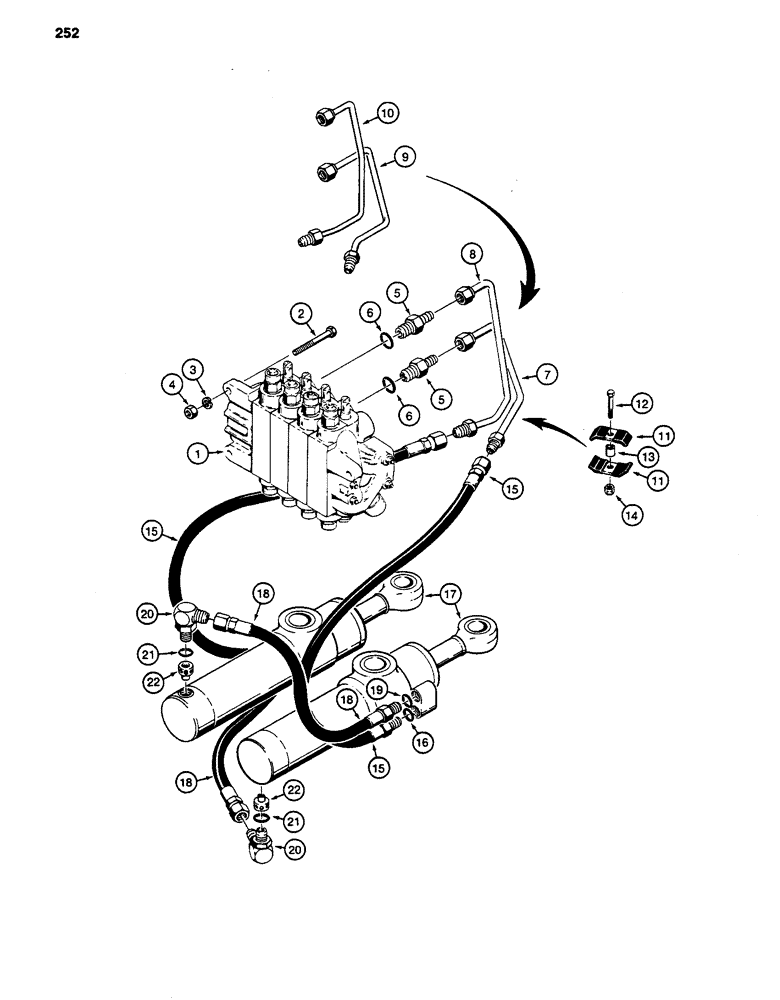

Схема запчастей Case 480D - (252) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT, 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figures 314 and 316

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, valve ports, Includes: Ref. 6

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

7

D99066

HYD TUBE,12.7 mm OD x 191, 80 mm L

TUBE - bottom port to right-hand swing cylinder, used on models with foot swing

1шт.

8

D99068

HYD TUBE,0.5" OD

TUBE - top port to left-hand swing cylinder, used on models with foot swing

1шт.

9

D122130

TUBE ASSY.

TUBE - bottom port to right-hand swing cylinder, used on models with hand swing

1шт.

10

D122132

TUBE ASSY.

TUBE - top port to left-hand swing cylinder, used on models with hand swing

1шт.

11

D42504

CLAMP

- tube

2шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

13

D33551

BUSHING

SPACER - tube clamp

1шт.

14

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

15

D37219

HOSE

- 30" (762 mm) long, to cylinders, Includes: Ref. 16

2шт.

17

G104127

CYLINDER

- swing, parts list Figure 374

2шт.

18

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- 24" (610 mm) long, swing cylinders, Includes: Ref. 19

2шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

22

D121529

STOP

RESTRICTOR - flow control

2шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose, at cylinder ports

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose, at cylinder ports

1шт.
