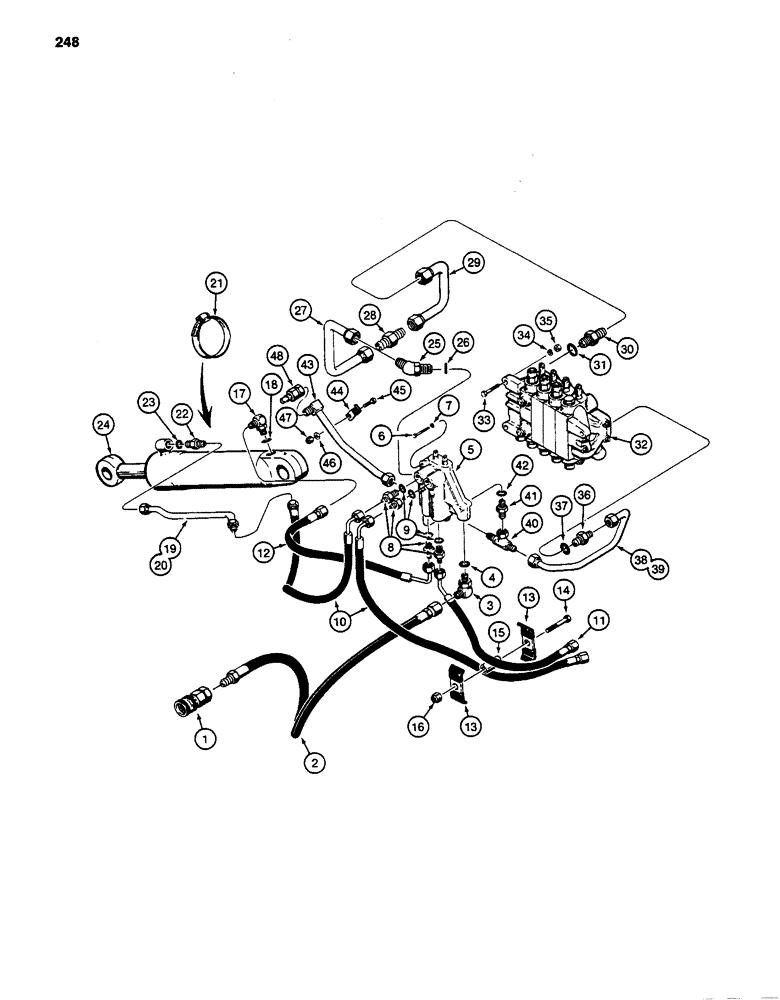

Запчасти Case 480D (248) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT, 480D MODELS ONLY (35) - HYDRAULIC SYSTEMS

1

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, hydraulic, female, parts list Figure 364

1шт.

2

R36060

HOSE

- 45" (1143 mm) long, to stabilizer valve

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, male, Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

5

REF

INSTRUCTION

CONTROL VALVE - stabilizer, parts list Figure 312

1шт.

6

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 9

4шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

10

D99161

HOSE

- 35" (889 mm) long, to rod end of cylinders

2шт.

11

D99767

HOSE

- 27" (686 mm) long, to closed end of right-hand cylinder

1шт.

12

D99160

HOSE

- 32" (813 mm) long, to closed end of left-hand cylinder

1шт.

13

D40236

CLAMP

- hose

4шт.

14

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

15

D36040

BUSHING

SPACER - hose clamp

2шт.

16

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj., Incl. Ref. 18 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

19

D75321

HYD TUBE,0.625" OD x 1.42, 16.4" L

TUBE - right-hand cylinder

1шт.

20

D75341

HYD TUBE,0.625" OD x 1.42, 16.4" L

TUBE - left-hand cylinder

1шт.

21

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, Includes: Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Connector

1шт.

24

G101200

STABILIZER,STABILIZER CYLINDER

CYLINDER - stabilizer, models without extendable dipper, parts list Figure 370

2шт.

24

G102294

CYLINDER

- stabilizer, models with extendable dipper, parts list Figure 372

2шт.

25

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, adjustable, Includes: Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

27

D99889

HYD TUBE,19.05 mm OD x 185, 103 mm L

TUBE - from stabilizer control valve

1шт.

28

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight

1шт.

29

D99888

HYD TUBE,0.75" OD

TUBE - to backhoe control valve

1шт.

30

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, backhoe control valve inlet port, Incl. Ref. 31

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

32

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figures 314 and 316

1шт.

33

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

35

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

36

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, backhoe control valve inlet port, Incl. Ref. 37

1шт.

37

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

38

D99125

HYD TUBE,0.75" OD

TUBE - backhoe control valve return, models without extendable dipper

1шт.

39

D99057

HYD TUBE,0.75" OD

TUBE - backhoe control valve return, models with extendable dipper

1шт.

40

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- swivel, return tubes, not used with hydraulic boom lock, see Figure 268 for boom lock hydraulic lines

1шт.

41

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, stabilizer control valve outlet port, Includes: Ref. 42

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

43

D99061

HYD TUBE,19.05 mm OD x 275.1, 37.3 mm L

TUBE - return to tractor

1шт.

44

T50103

CLAMP

- tube

1шт.

45

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

46

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

47

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

48

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, hydraulic, parts list Figure 364

1шт.
