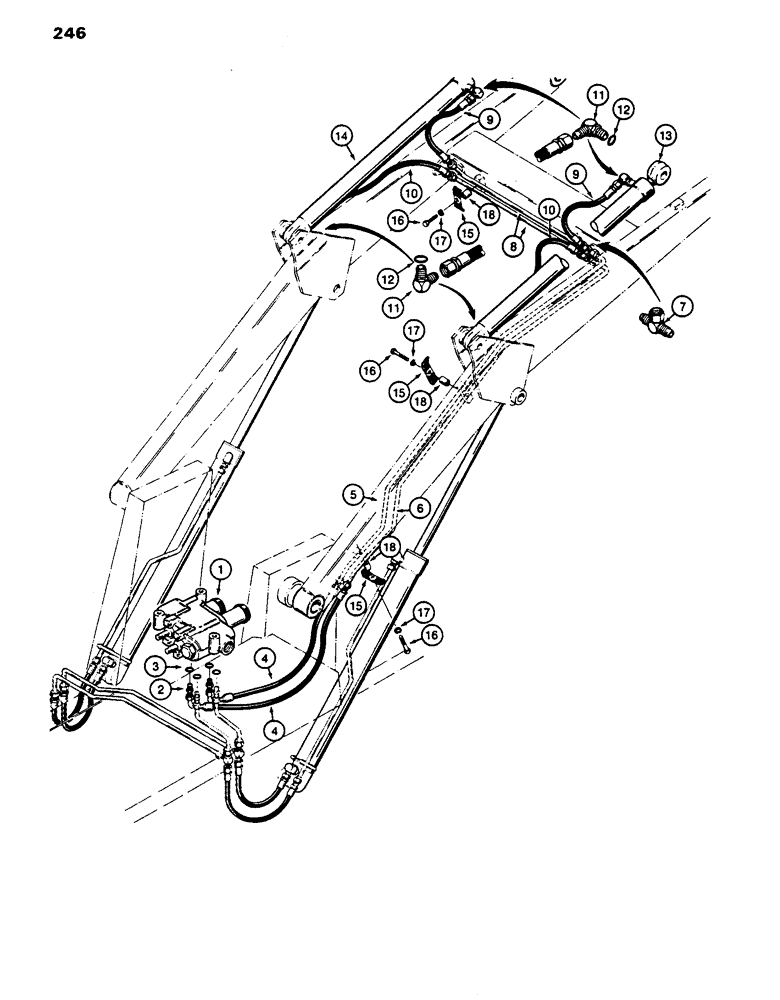

Запчасти Case 480D (246) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

4

D69455

HOSE

- 36" (914 mm) long, special, from valve

2шт.

5

D69206

HYD TUBE,0.5" OD

TUBE - to rod end of cylinders, models without antirollback

1шт.

5

D99075

HYD TUBE,12.7 mm OD x 1500, 485 mm L

TUBE - to rod end of cylinders, models with antirollback

1шт.

6

D69208

HYD TUBE,0.5" OD x 61.95, 9.59" L

TUBE - to closed end of cylinders, models without antirollback

1шт.

6

D99077

HYD TUBE,12.7 mm OD x 1455, 540 mm L

TUBE - to closed end of cylinders, models with antirollback

1шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- swivel, right-hand to left-hand cylinder

2шт.

8

D68439

TUBE

- to left-hand cylinder

2шт.

9

D69204

HOSE

- 20" (508 mm) long, to rod end of cylinders

2шт.

10

D73244

HOSE

- 30-1/2" (775 mm) long, to closed end of cylinders

2шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj., Incl. Ref. 12 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

4шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

13

REF

INSTRUCTION

CYLINDER - bucket, right-hand, parts list Figure 368

1шт.

14

REF

INSTRUCTION

CYLINDER - bucket, left-hand, parts list Figure 368

1шт.

15

R17319

CLAMP

- tube

4шт.

16

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

18

D33551

BUSHING

SPACER - tube clamp

4шт.
