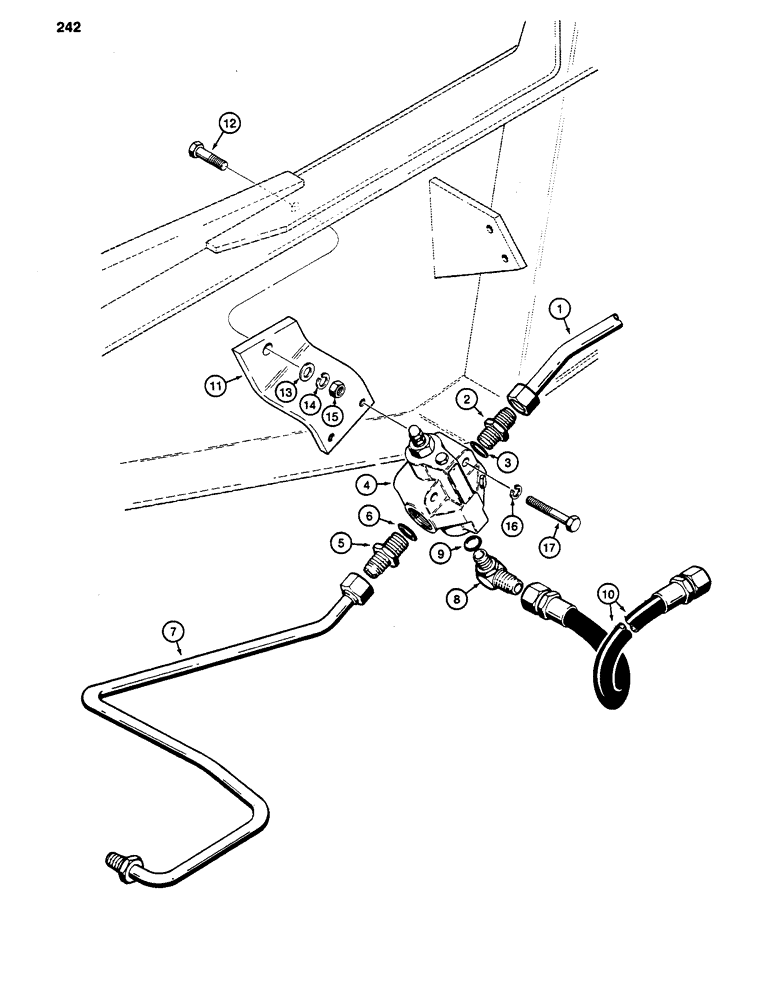

Запчасти Case 480D (242) - EQUIPMENT HYDRAULIC SYSTEM, SPECIAL PARTS USED WITHOUT LOADER (35) - HYDRAULIC SYSTEMS

1

D72161

HYD TUBE,1" OD x 13.43, 38.51" L

TUBE - pressure, from pump to relief valve

1шт.

2

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

4

D71668

VALVE

RELIEF VALVE ASSEMBLY - models without loader, parts list Figure 340

1шт.

5

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

7

D72159

HYD TUBE,1" OD

TUBE - pressure, rear equipment

1шт.

8

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 9 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

10

D49224

HOSE

- 28" (483 mm) long, return, from relief valve to return line tee

1шт.

11

D72166

BRACKET

- relief valve mounting

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Bracket mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

13

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

17

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Valve mounting Hex, 5/16"-18 x 2", G5

2шт.
