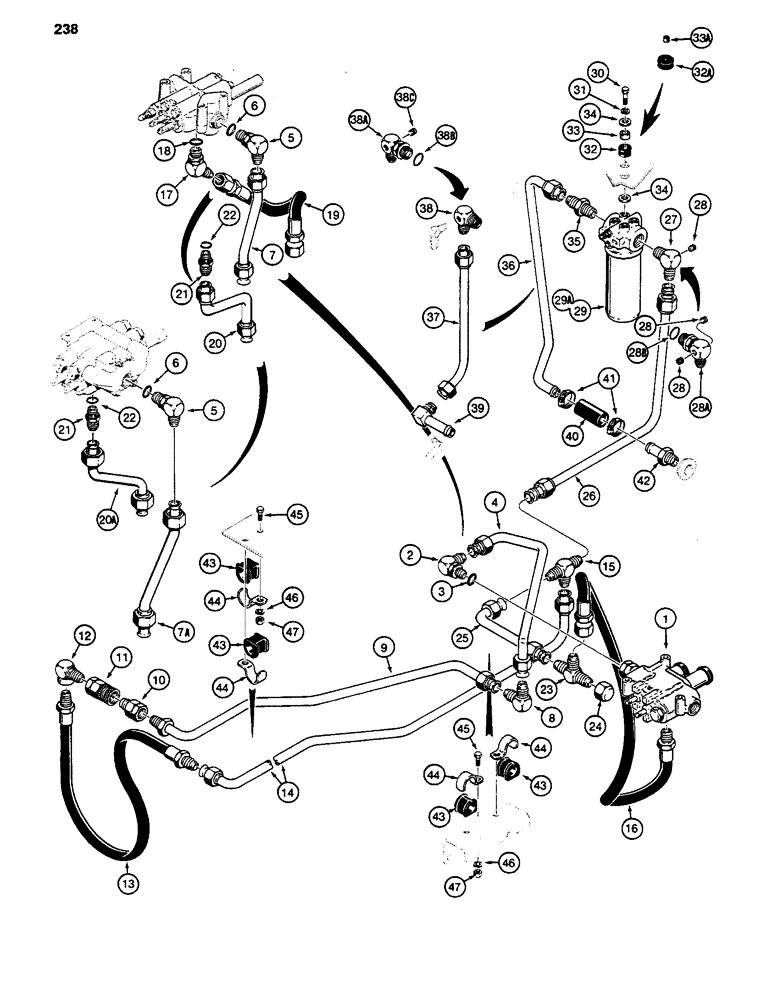

Запчасти Case 480D (238) - EQUIPMENT HYDRAULIC SYSTEM - MODELS WITH LOADER, REAR EQUIPMENT AND RETURN LINES (35) - HYDRAULIC SYSTEMS

2

218-5115

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

- 90 degree, used with Gresen control valve, Includes: Ref. 3

1шт.

3

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- elbow

1шт.

4

D74768

TUBE

- from Gresen control valve

1шт.

5

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Used with Parker or Case control valve, Includes: Ref. 6 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

7

D88998

HYD TUBE,1" OD x 11.62, 1.18" L

TUBE - from Parker control valve

1шт.

7a

D127088

TUBE ASSY.

TUBE - from Case control valve

1шт.

8

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree

1шт.

9

D74770

HYD TUBE,1" OD x 15.8, 33.25" L

TUBE - to hydraulic coupling

1шт.

10

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 364

1шт.

11

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 364

1шт.

12

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

13

D49118

HOSE

- 33" (838 mm) long, return

1шт.

14

D129408

TUBE ASSY.

TUBE - return, rear equipment

1шт.

15

218-598

TEE,1 5/16"-12 37 Degree

- male, return tubes

1шт.

16

D75042

HOSE

- 19" (483 mm) long, from Gresen control valve

1шт.

17

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, adjustable, Parker control valve outlet, used with Ref. 19, Includes: Ref. 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

19

R25267

HOSE

- 12" (305 mm) long, from Parker control valve, if used

1шт.

20

D123390

TUBE ASSY.

TUBE - from Parker control valve outlet, if used

1шт.

20a

D127092

TUBE ASSY.

TUBE - from Case control valve outlet

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, used with Ref. 20 or 20A, Incl. Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

23

218-589

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Run

- male, return line

1шт.

24

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16" - 12, tee

1шт.

25

D74772

TUBE

-, Serial Range: tee-tee

1шт.

26

D69643

TUBE

, Serial Range: --filter

1шт.

27

D65646

FITTING

ELBOW - 90 degree, replaces elbow without plug on some models, used with D89908 or D122362 oil filter without O-ring ports

1шт.

28

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

1-3шт.

28a

D132008

ELBOW

- 90 degree, adjustable, used with D131293 oil filter with O-ring ports, see Figure 362 for filter, Includes: Ref. 28B

1шт.

28b

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- D132008 elbow only

1шт.

29

D122362

FILTER

- hydraulic oil, without O-ring ports, parts list Figure 362

1шт.

29a

D131293

FILTER

- hydraulic oil, with O-ring ports, parts list Figure 362

1шт.

30

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

D67915

GROMMET

- filter mounting bracket, 7/8" ID, used with Ref. 33 spacer, if used

2шт.

32a

D132895

GROMMET

- filter mounting bracket, 5/8" ID, used with Ref. 33A spacer, if used

2шт.

33

D89934

BUSHING

SPACER - filter mounting bracket, 7/8" OD x 7/32" thick, used with Ref. 32 grommet, if used

2шт.

33a

D76209

SPACER

- split, filter mounting bracket, 5/8" OD x 1/8" thick, used with Ref. 32A grommet, if used

2шт.

34

195-2042

WASHER,.469" x 1 1/2" x .134"

- flat, 7/16", special

4шт.

35

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - straight, male, used with D89908 or D122362 oil filter without O-ring ports, if used

1шт.

36

D86201

TUBE

- filter to reservoir, if used

1шт.

37

D127936

TUBE ASSY.

TUBE - filter to reservoir, if used

1шт.

For further hydraulic related parts, see brake master cylinder hydraulic circuit, models with self-filling brake system on Figure 222, Ref. 10.

1шт.

38

D65646

FITTING

ELBOW - 90 degree, used with D89908 or D122362 oil filter without O-ring ports, if used

1шт.

For further hydraulic related parts, see brake master cylinder hydraulic circuit, models with self-filling brake system on Figure 222, Ref. 10.

1шт.

38a

D132008

ELBOW

- 90 degree, adjustable, used with D131293 oil filter with O-ring ports, Includes: Ref. 38B

1шт.

For further hydraulic related parts, see brake master cylinder hydraulic circuit, models with self-filling brake system on Figure 222, Ref. 10.

1шт.

38b

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- D132008 elbow only

1шт.

38c

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT, used with D132008 elbow

1шт.

39

D127934

TUBE

ELBOW - special

1шт.

For further hydraulic related parts, see brake master cylinder hydraulic circuit, models with self-filling brake system on Figure 222, Ref. 10.

1шт.

40

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

- 1" (25 mm) ID x 3-1/2" (89 mm), Serial Range: long,-tank

1шт.

41

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

42

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

STEM FITTING - straight, at hydraulic reservoir

1шт.

43

D67297

BLOCK

INSULATOR - tube clamp

4шт.

44

D68846

CLAMP

- tube

4шт.

45

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

47

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
