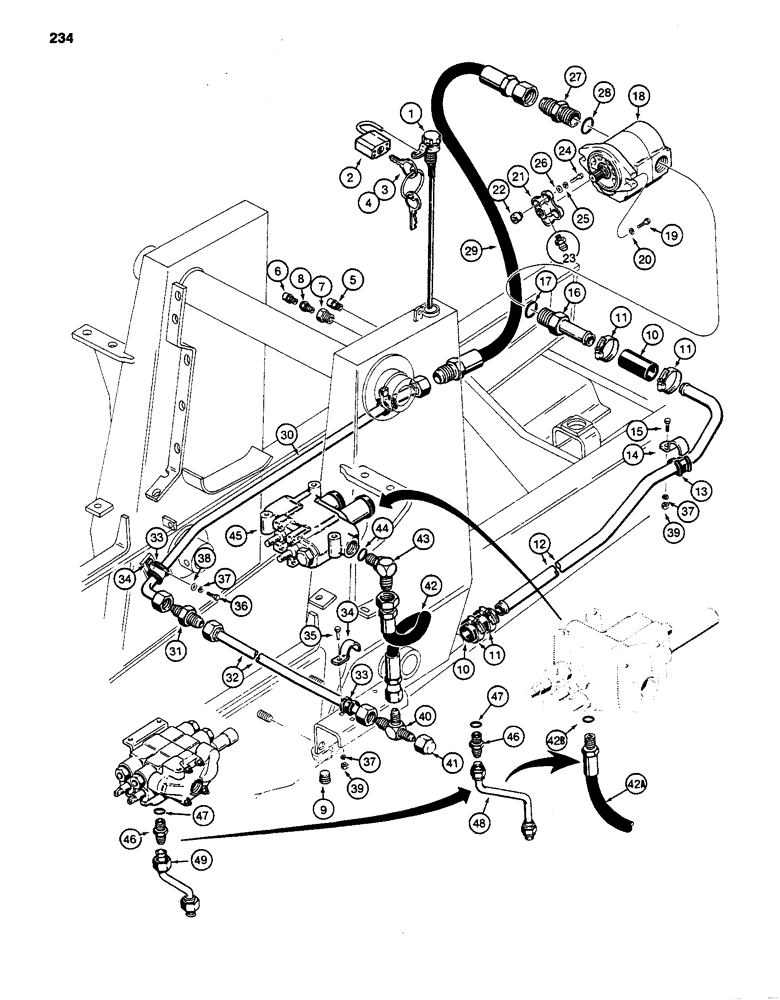

Запчасти Case 480D (234) - EQUIPMENT HYDRAULIC SYSTEM - MODELS WITH LOADER, RESERVOIR TO LOADER CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

D94386

DIPSTICK

- reservoir

1шт.

2

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 3 and 4

1шт.

3

R29555

KEY

- for Master padlock only

2шт.

4

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

5

D94060

VALVE

RELIEF VALVE - air outlet

1шт.

6

R15538

VALVE

RELIEF VALVE - air inlet

1шт.

7

D63506

ADAPTER

- relief valve

1шт.

8

D63543

BREATHER

FILTER - relief valve

1шт.

9

D123893

PLUG

DRAIN PLUG - reservoir, hex head, 3/4" NPT

1шт.

10

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

11

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

12

D86037

HYD TUBE

TUBE - suction

1шт.

13

D67298

INSULATOR

- tube clamp

1шт.

14

D68845

MOUNTING CLIP

CLAMP - suction tube

1шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

16

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

STEM FITTING - straight, hose to pump, Incl. Ref. 17

1шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- fitting

1шт.

18

D73079

PUMP

HYDRAULIC PUMP - equipment, parts list Figure 292

1шт.

See notes in either the CE group book or the Tech analyst book for instructions on options for this unit to replace the hydraulic pump.

1шт.

19

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

21

D90883

SPLINED COUPLING

COUPLING - hydraulic pump, Includes: Ref. 22 and 23

1шт.

22

A45216

BUSHING

- coupling

4шт.

23

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4"-28 NF

1шт.

24

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

25

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

26

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flat, special

4шт.

27

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 28

1шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

29

D68547

HOSE,19.05mm ID x 200mm L, SAE 100R2

- 20" (508 mm) long, pump pressure

1шт.

30

D70411

HYD TUBE,1" OD

TUBE - pressure, from hydraulic pump, models with PTO, see Figure 278

1шт.

31

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR - straight, tube

1шт.

32

D73061

TUBE

- pressure, to loader control valve, models with PTO see Figure 278

1шт.

33

D67297

BLOCK

INSULATOR - tube clamp

3шт.

34

D68846

CLAMP

- tube

3шт.

35

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

36

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

38

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

40

218-589

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Run

- male

1шт.

41

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16" - 12, tee

1шт.

42

D74750

HOSE

- 18" (457 mm) long, to Gresen control valve

1шт.

42a

D73319

HOSE

- 14" (356 mm) long, to Parker control valve, replaces 16" (406 mm) long hose used on some models, if used, Includes: Ref. 42B

1шт.

42b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- D73319 hose, at control valve port

1шт.

43

218-5115

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

- 90 degree, used with Gresen control valve only, Includes: Ref. 44

1шт.

44

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- elbow

1шт.

45

REF

INSTRUCTION

CONTROL VALVE - loader, for correct assembly and components, see page 295, 297, or 307

1шт.

46

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, to Parker or Case control valve inlet, Incl. Ref. 47

1шт.

47

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

48

D123388

TUBE ASSY.

TUBE - to Parker control valve inlet, if used

1шт.

49

D127090

TUBE ASSY.

TUBE - to Case control valve inlet

1шт.
