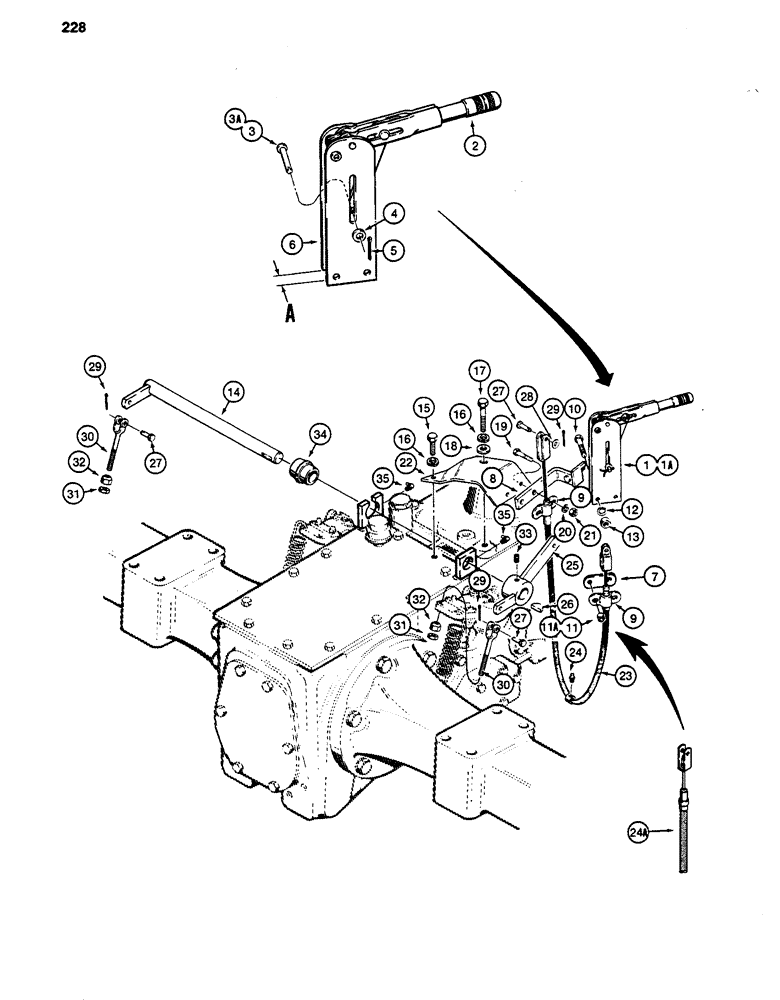

Запчасти Case 480D (228) - PARKING BRAKE LEVER AND LINKAGE, USED BEFORE TRANSAXLE S/N 16270319 (33) - BRAKES & CONTROLS

1

D75370

LEVER

ASSEMBLY - parking brake, inside dimension A is .97" (24.6 mm) wide, used with Ref. 3, 7 and 11, Includes: Ref. 2 - 6

1шт.

1a

D121555

LEVER ASSY.

LEVER ASSEMBLY - parking brake, inside dimension A is .81" (20.6 mm) wide, used with Ref. 3A, 7 and 11A, no longer used, order D75370 lever (Ref. 1), (2) D69991 spacer (Ref. 11) and L30975 pin (Ref. 3) Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - riveted assembly

1шт.

3

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN - lever to brake cable, used with Ref. 1 only

1шт.

3a

D42458

PIN

- lever to brake cable, used with Ref. 1A only

1шт.

4

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

5

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - brake lever

1шт.

7

D129747

PLATE

- oval spacer, used with Ref. 1 or 1A, replaces rectangular spacer plate on some models

1шт.

8

D99190

BRACKET

PLATE AND BRACKET - front

1шт.

9

D121608

CLAMP

- parking brake cable

2шт.

10

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

11

D69991

SPACER

- clamp, used with Ref. 1 only

2шт.

11a

D122882

SPACER

- clamp, used with Ref. 1A only

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

D69400

SHAFT

- parking brake

1шт.

15

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

19

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

2шт.

22

D83993

BRACKET

- cable mounting

1шт.

23

D122264

CABLE

- parking brake, no longer used, order D126606 cable, Includes: Ref. 24

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , D122264 cable only 1/4"-28 NPT x .54" lg

1шт.

24a

D126606

CABLE ASSY.

CABLE - parking brake

1шт.

25

D69995

LEVER

BELLCRANK - parking brake

1шт.

26

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

27

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

3шт.

28

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

29

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

30

D69411

ROD

- parking brake

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

2шт.

32

D69410

NUT

- parking brake, 5/16" - 18 NC, special

2шт.

33

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

- square head, 3/8" - 16 NC x 5/8", cup point

1шт.

34

D74218

BUSHING

- spacer

2шт.

35

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" - 28 NF taper

2шт.
