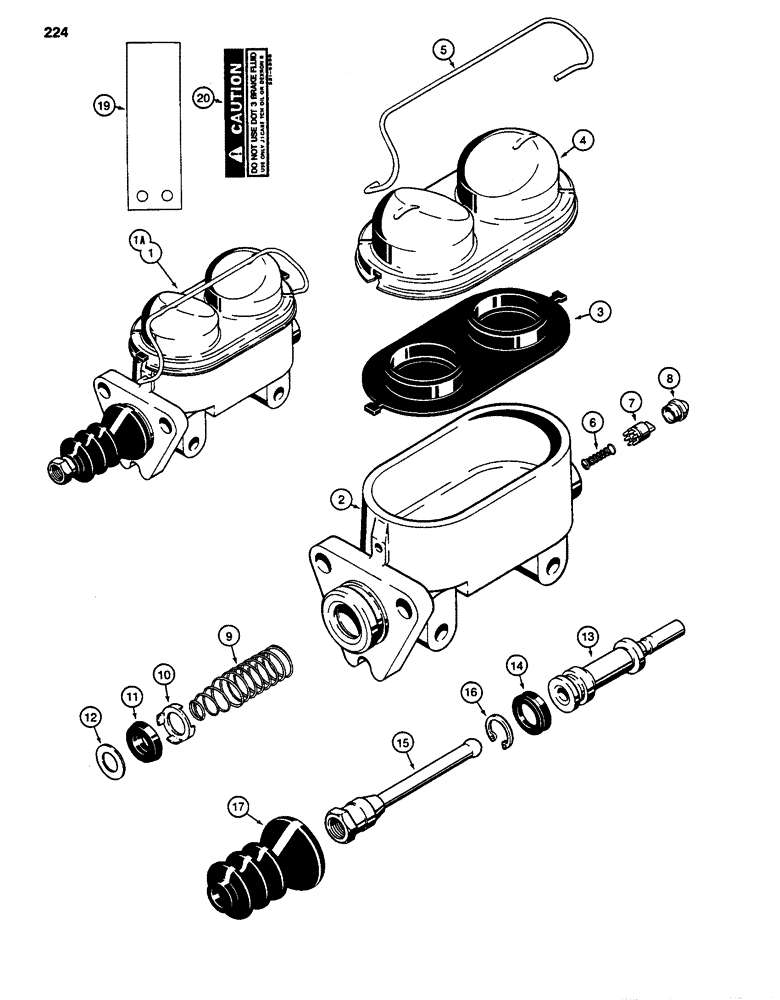

Запчасти Case 480D (224) - D120090 AND D126695 BRAKE MASTER CYLINDERS (33) - BRAKES & CONTROLS

1

D120090

CYLINDER

MASTER CYLINDER - brake, no longer available, order D126695 master cylinder

2шт.

1a

D126695

MASTER CYLINDER

- brake, Includes: Ref. 2 - 20

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

3

N6832

GASKET

- diaphragm, filler cap

1шт.

4

N6833

COVER

- filler cap (Replaces NSS)

1шт.

5

N6831

BAIL

- filler cap

1шт.

6

N6824

SPRING

- valve

1шт.

7

N6827

VALVE

- residual

1шт.

8

N6825

SEAT

- tube

1шт.

N6823

PISTON

ASSEMBLY - brake master cylinder, Includes: Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - cup

1шт.

11

N6830

CUP

- pump

1шт.

12

N6828

GUARD

PROTECTOR - cup

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

14

N6829

SEAL

- double lip

1шт.

15

L32137

ROD

- push

1шт.

16

A42256

SNAP RING,0.901", Int, #90

master cylinder 0.901", Int, #90

1шт.

17

N8819

BOOT

- push rod

1шт.

18

321-6398

DECAL

- Caution, brake fluid, D120090 cylinder, not shown, see Figure 544 for decal

1шт.

D127086

PLATE ASSY.

DECAL ASSEMBLY - brake fluid, D126695 cylinder, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - decal, right-hand cylinder

1шт.

20

321-6398

DECAL

- Caution, brake fluid

1шт.
