Запчасти Case 480D (222) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT, MODELS WITH SELF-FILLING BRAKE SYSTEM (33) - BRAKES & CONTROLS

1

D127519

CYLINDER,36.58mm Stroke

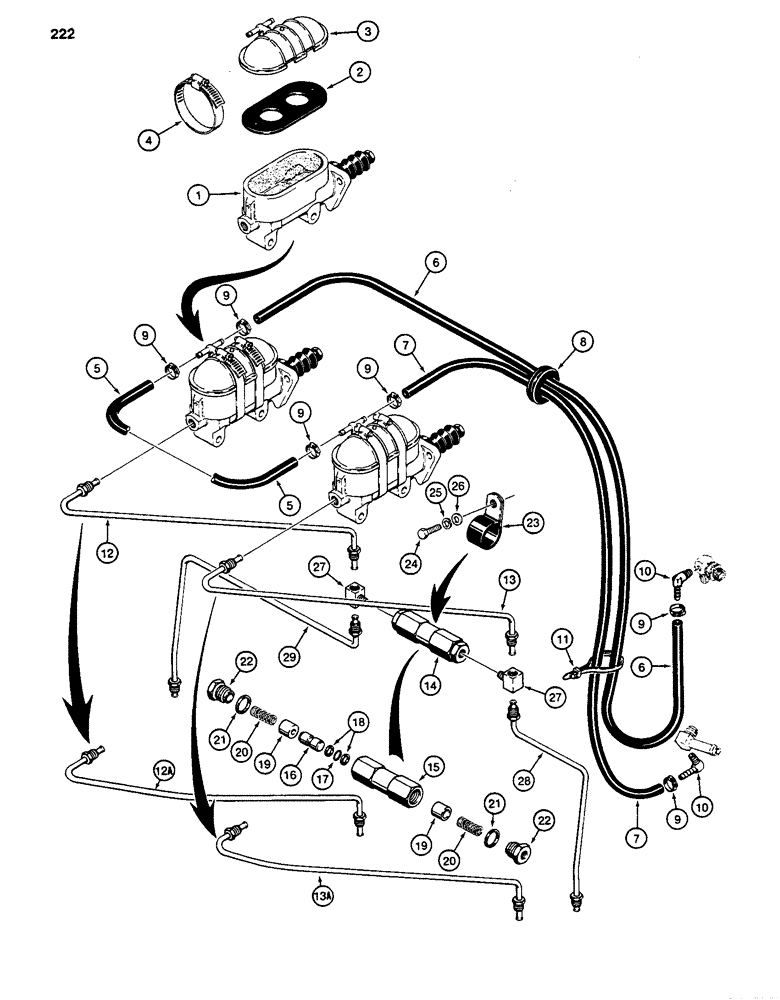

MASTER CYLINDER - brake, parts list Figure 226

2шт.

2

D128313

GASKET

- master cylinder

2шт.

3

D127405

COVER

- master cylinder

2шт.

4

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - cover to master cylinder, includes screw

4шт.

5

D59944

FUEL HOSE,0.25" ID x 7.20", SAE 30R6 or SAE 30R7

Cylinder Connecting 0.25" ID x 7.20", SAE 30R6 or SAE 30R7

1шт.

6

D128689

HYDRAULIC HOSE,6.75 mm ID x 1500.00 mm, SAE 30R6 or SAE 30R7

- Cylinder to Hydraulic Oil Filter Return Tube 6.75 mm ID x 1500.00 mm, SAE 30R6 or SAE 30R7

1шт.

7

D71599

HOSE,6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

FUEL HOSE, , Cylinder to Hydraulic Oil Filter 6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.

8

D67915

GROMMET

- rubber

1шт.

9

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose

6шт.

10

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

BARB FITTING - 90 degree, to tank and hydraulic oil filter

2шт.

For further hydraulic related parts, see equipment hydraulic system return lines on Figure 240, Ref. 37 - 39.

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

D127534

TUBE ASSY.

TUBE - vertical, to left-hand master cylinder, no longer used, for service order D129200 tube

1шт.

12a

D129200

TUBE ASSY.

TUBE - vertical, to left-hand master cylinder

1шт.

13

D127538

TUBE ASSY.

TUBE - vertical, to right-hand master cylinder, no longer used, for service order D129202 tube

1шт.

13a

D129202

TUBE ASSY.

TUBE - vertical, to right-hand master cylinder

1шт.

14

D126650

VALVE

- equalizer, Includes: Ref. 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - equalizer valve

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON - equalizer valve

1шт.

17

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- piston

1шт.

18

N9058

BACK-UP RING,0.424" ID x 0.63" OD x 0.103"

BACKUP RING - piston O-ring

2шт.

19

NSS

NOT SOLD SEPARAT

RETAINER - spring

2шт.

20

NSS

NOT SOLD SEPARAT

SPRING - piston

2шт.

21

A16673

GASKET

- plug, copper

2шт.

22

NSS

NOT SOLD SEPARAT

PLUG - equalizer valve end

2шт.

23

A141013

CLAMP,1 1/8", Insul, 3/8" Bolt

- P-type, equalizer valve, mounts to firewall

1шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

27

222-1071

TEE,7/16"-24 Inv Fl x 1/8" NPT Br

- tubes to equalizer valve

2шт.

28

D127540

TUBE ASSY.

TUBE - right-hand master cylinder

1шт.

29

D127536

TUBE ASSY.

TUBE - left-hand master cylinder

1шт.
