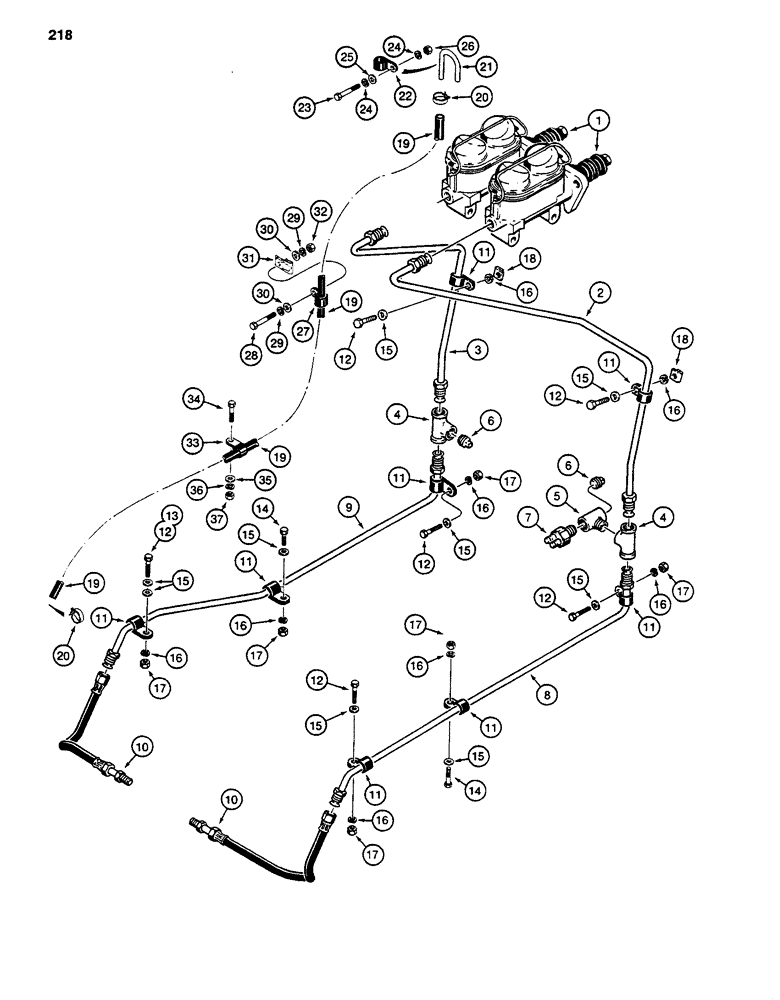

Запчасти Case 480D (218) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT, MODELS WITHOUT/WITH OR WITHOUT SELF-FILLING BRAKE SYSTEM (33) - BRAKES & CONTROLS

1

D126695

MASTER CYLINDER

- brake, parts list Figure 224, models without self-filling brake system

2шт.

2

D99529

TUBE

- from right-hand master cylinder, models without self-filling brake system

1шт.

3

D99531

TUBE,0.25" OD

- from left-hand master cylinder, models without self-filling brake system

1шт.

4

222-1165

TEE,7/16"-24, Inv Fl

- lines, models with or without self-filling brake system

2шт.

5

217-55

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

- right-hand side only, models with or without self-filling brake system

1шт.

6

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT, models with or without self-filling brake system

2шт.

7

D99796

SWITCH

- clutch cutout, models with or without self-filling brake system

1шт.

8

D86002

TUBE,6.35 mm OD x 636, 126 mm L

- to right-hand brake, models with or without self-filling brake system

1шт.

9

D99795

TUBE,6.35 mm OD x 635, 126 mm L

- to left-hand brake, models with or without self-filling brake system

1шт.

10

D66741

HOSE,6.35mm ID x 270mm L

- brake, models with or without self-filling brake system

2шт.

11

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- lines, for battery cable and wiring harness clamps see Figures 88 - 96, models with or without self-filling brake system

8шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Models with or without self-filling brake system Hex, 3/8"-16 x 1", G5, Full Thd

5-6шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used, models with or without self-filling brake system Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Models with or without self-filling brake system Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, models with or without self-filling brake system

8-9шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Models with or without self-filling brake system 3/8"

8шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Models with or without self-filling brake system 3/8"-16, G5

6шт.

18

131-634

SPRING NUT,J, Ret, 3/8"-16

- J-type, 3/8" - 16 NC, models with or without self-filling brake system

2шт.

19

D134642

HOSE

- 48-7/16" (1230 mm) long, vent, replaces 53-15/16" hose used in production on some models, used on models with transaxle SN 16270319 and after, models with or without self-filling brake system

1шт.

For brake actuator vent hose, see transaxle and differential lock on Figure 178.

1шт.

20

F64936

CLAMP

- vent hose, models with or without self-filling brake system

2шт.

21

D133917

TUBE

- vent, used on models with transaxle S/N 16270319 and after, models with or without self-filling brake system

1шт.

22

L15301

CLAMP

- vent tube, at brake pedal mounting bracket, models with or without self-filling brake system

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Models with or without self-filling brake system Hex, 3/8"-16 x 1 1/2", G5

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Models with or without self-filling brake system 3/8"

2шт.

25

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, models with or without self-filling brake system

1шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Models with or without self-filling brake system 3/8"-16, G5

1шт.

27

49838

CLAMP

- P-type, vent hose to firewall, models with or without self-filling brake system

1шт.

28

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Models with or without self-filling brake system Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Models with or without self-filling brake system 3/8"

2шт.

30

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, models with or without self-filling brake system

2шт.

31

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, , Models with or without self-filling brake system Ret, J, 3/8"-16

1шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Models with or without self-filling brake system 3/8"-16, G5

1шт.

33

49838

CLAMP

- P-type, vent hose to floor plate, models with or without self-filling brake system

1шт.

34

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Models with or without self-filling brake system Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

35

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, models with or without self-filling brake system

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Models with or without self-filling brake system 3/8"

1шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Models with or without self-filling brake system 3/8"-16, G5

1шт.
