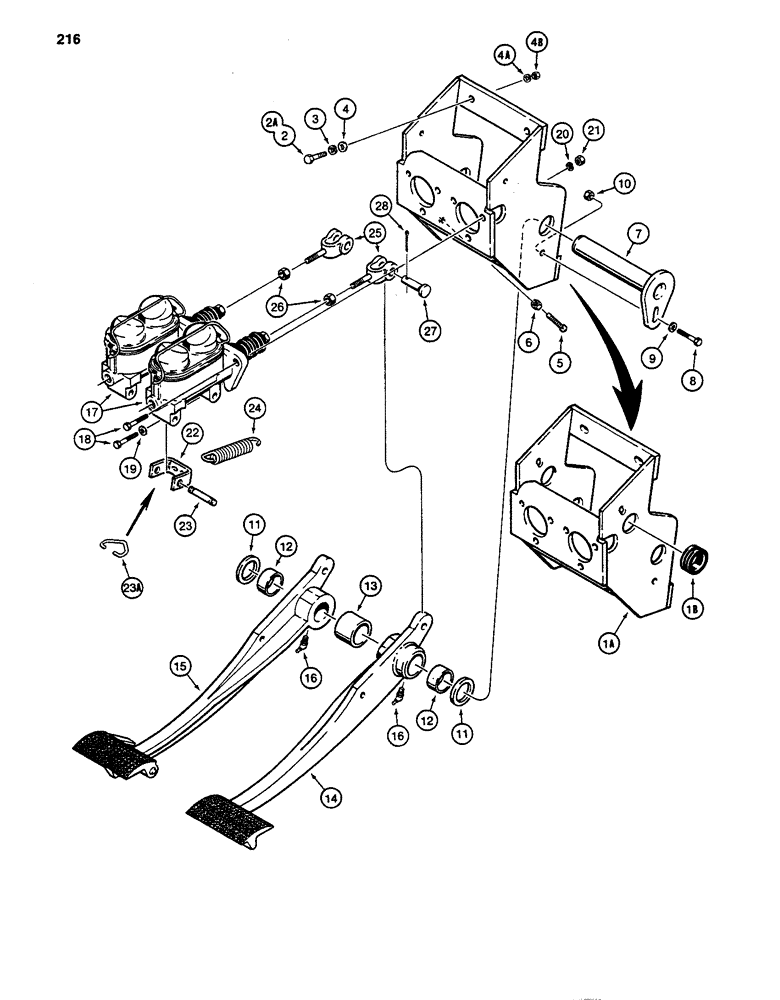

Запчасти Case 480D (216) - BRAKE PEDALS AND MOUNTING (33) - BRAKES & CONTROLS

1

D89795

BRACKET

- brake pedal and master cylinder mounting, used in brake system without self-filling master cylinder, see Figure 218

1шт.

1a

D127611

BRACKET

- brake pedal and master cylinder mounting, used in brake system with self-filling master cylinder, see Figure 222

1шт.

1b

D67915

GROMMET

- rubber, used with Ref. 1A only

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3-4шт.

2a

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Upper LH mounting hole, models with transaxle vent hose system, see Figure 218 Hex, 3/8"-16 x 1 1/2", G5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

4a

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Upper LH mounting hole only on models with transaxle vent hose system, see Figure 218 3/8"

1шт.

4b

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Upper LH mounting hole only on models with transaxle vent hose system, see Figure 218 3/8"-16, G5

1шт.

5

85-628

SET,Sq Hd, 3/8"-16 x 1 3/4"

SCREW - square head, 3/8" - 16 NC x 1-3/8", cup point

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

D84355

SHAFT

- pedal

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

10

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

11

195-2125

WASHER,1 5/16" x 2" x .109"

- flat, 2", special, pedal shaft

1шт.

12

D89845

SPACER

- pedal, outer

2шт.

13

D94176

SPACER

- pedal, center

1шт.

14

D90654

PEDAL

- brake, right-hand

1шт.

15

D90751

PEDAL

- brake, left-hand

1шт.

16

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 30 degree, special short, 1/8" NPT

2шт.

17

REF

INSTRUCTION

MASTER CYLINDER - brake, for correct assembly and components, see parts list Figures 224 and 226

2шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

19

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

22

D84578

ANCHOR

BRACKET - spring anchor, no longer used, order Ref. 23A

2шт.

23

D82452

ANCHOR

PIN - bracket to master cylinder, no longer used, order Ref. 23A

2шт.

23a

D120218

ANCHOR

- brake spring

2шт.

24

D120911

SPRING

- pedal return

2шт.

25

D94105

YOKE

CLEVIS - master cylinder

2шт.

26

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

2шт.

27

141-64

CLEVIS PIN,7/16" x 1.190"

plated 7/16" x 1.190"

2шт.

28

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.
