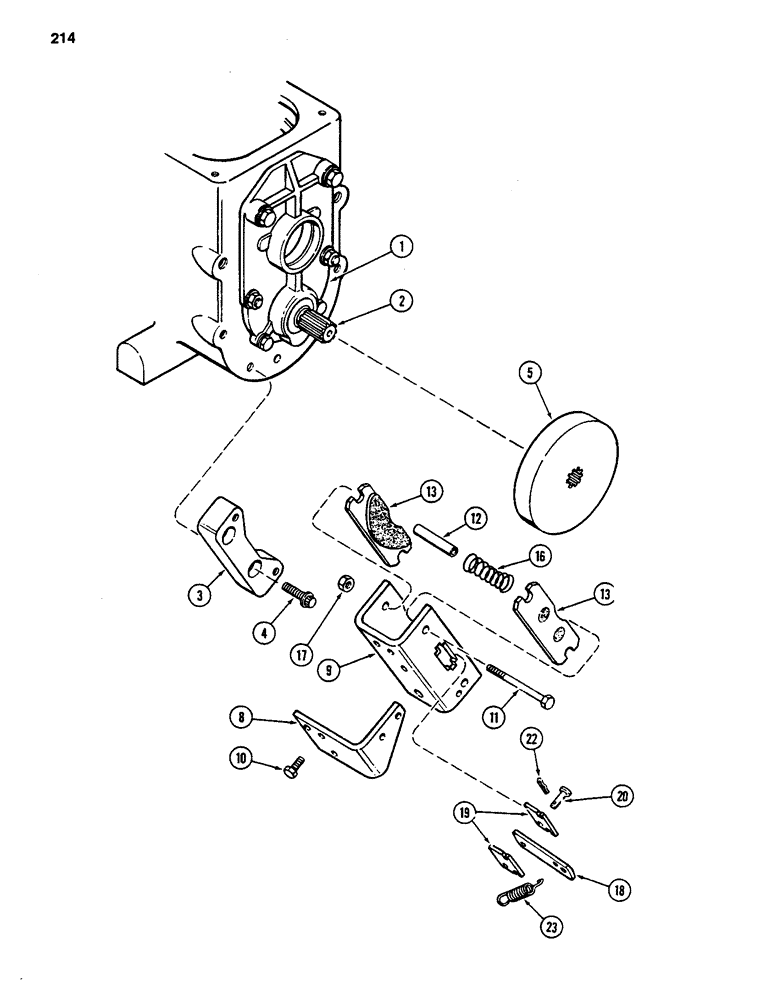

Запчасти Case 480D (214) - TRANSAXLE PARK BRAKE, TRANSMISSION S/N 16270319 AND AFTER (33) - BRAKES & CONTROLS

1

REF

INSTRUCTION

COVER - front, transmission (See Figure 184)

1шт.

2

REF

INSTRUCTION

SHAFT - counter (See Figure 192)

1шт.

3

A179065

LARGE PLATE

PLATE - mounting, brake

1шт.

4

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- 13 point flanged head, 1/2 NC x 1-1/2 inch

2шт.

5

A168790

DISC

- brake

1шт.

A182272

BRAKE ASSEMBLY - park, Includes: Ref. 8 - 23

1шт.

8

A52380

BRACKET

- mounting, cable

1шт.

9

A52256

HOUSING

- brake

1шт.

10

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

3шт.

11

A52263

BOLT

- retaining, brake

2шт.

12

A52261

SPACER

- stator

2шт.

13

A52255

PAD

- brake

2шт.

16

A52262

SPRING

- compression

2шт.

17

129-144

NUT,Jam, 7/16"-14, G5

- hex jam, 7/16 inch NC (Discard)

2шт.

18

A52379

LEVER

- actuating

1шт.

19

A52257

PIVOT

PLATE - pivot

2шт.

20

A52259

PIN

- clevis, pivot

1шт.

22

A52260

PIN

- retainer, pivot pin

1шт.

23

A52264

SPRING

- extension

1шт.
