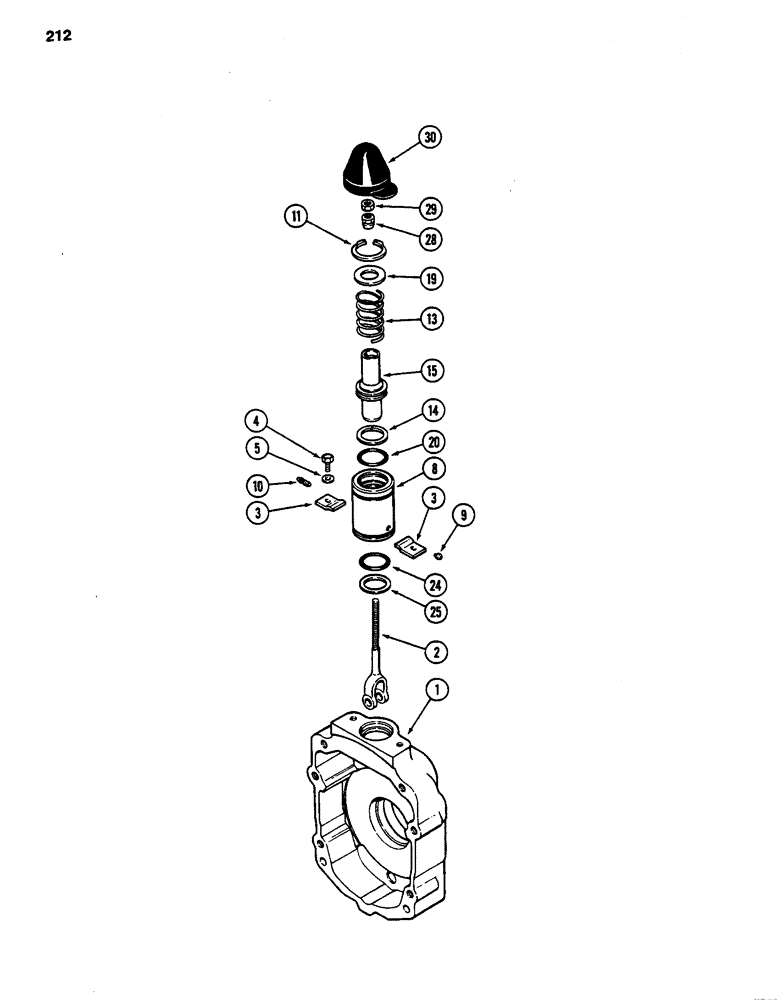

Запчасти Case 480D (212) - TRANSAXLE DIFFERENTIAL BRAKE ACTUATOR, TRANSMISSION S/N 16270319 AND AFTER (33) - BRAKES & CONTROLS

1

REF

INSTRUCTION

HOUSING - brake (See Figure 208)

2шт.

2

A168817

STEM

ROD - pull, brake actuating

2шт.

3

A168909

LARGE PLATE

PLATE - clamp, actuator

4шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

5

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

4шт.

A168974

ACTUATOR

ASSEMBLY - brake, Includes: Ref. 8 - 25

2шт.

A168974R

REMAN-BRAKE ASSY.

480D, 480LL, ALL S/N 16270319 AND AFTER

2шт.

A168974C

CORE

Return Number

1шт.

8

A52266

HOUSING

- piston

1шт.

9

S114301

INSERT

- seat

1шт.

10

S114300

BLEEDER,3/8" - 24 x 1.17"

SCREW - bleed

1шт.

11

A52276

RETAINER

RING - retainer

1шт.

13

A52272

SPRING

- piston

1шт.

14

A52271

SEALING RING

RING - backup, piston

1шт.

15

A52267

PISTON

- actuator

1шт.

A52277

PACKAGE

REPAIR KIT - piston, Includes: Ref. 19 - 25

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - flat, 2 inch (51 mm) OD (Reference No. A52273)

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston, 1-1/2 inch (38 mm) ID (Reference No. A52270)

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - housing, 1-5/8 inch (41 mm) OD (Reference No. A52269)

1шт.

25

NSS

NOT SOLD SEPARAT

RING - back up (Reference No. A52268)

1шт.

28

A157951

NUT

- hex, pull rod

2шт.

29

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex jam

2шт.

30

A179594

BOOT

SEAL - dust

2шт.
