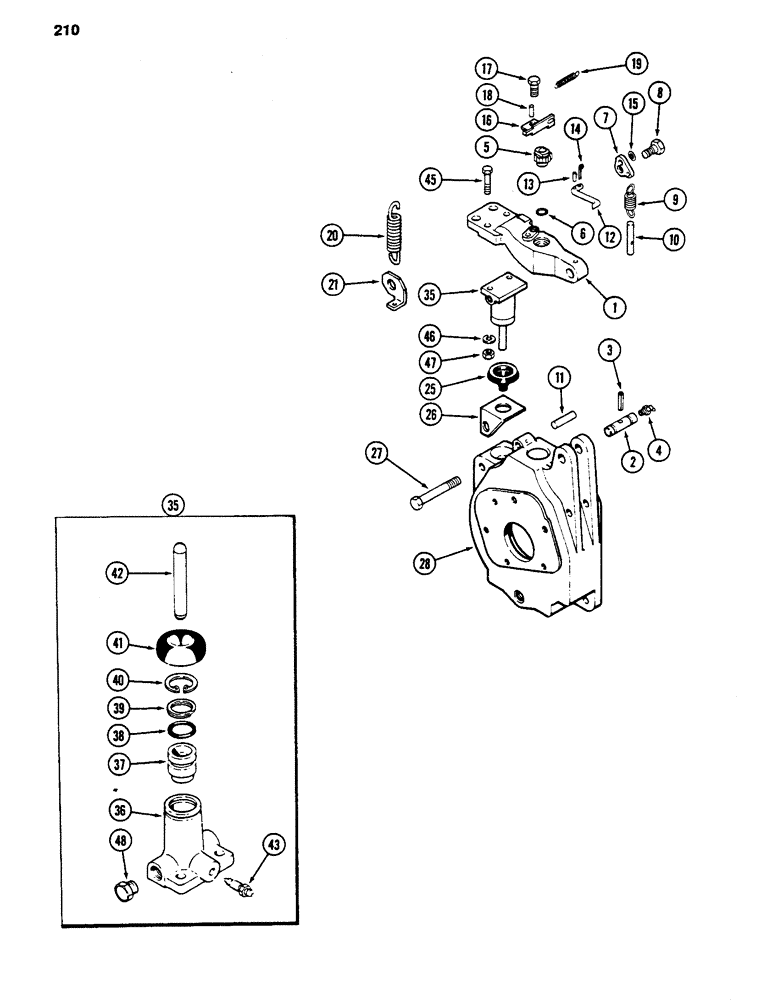

Запчасти Case 480D (210) - DIFFERENTIAL BRAKE LEVER AND LOCK, TRANSAXLE, PRIOR TO TRANSMISSION S/N 16270319 (33) - BRAKES & CONTROLS

1

A51969

LEVER

- brake

2шт.

2

A154569

PIN

- brake lever pivot

2шт.

3

138-2028

PIN,3/16" x 1 1/4", Coiled

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

5

A62230

NUT

- ratchet, brake adjusting

2шт.

6

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- adjusting nut

2шт.

7

A64490

CAM

- self adjusting brake

2шт.

8

A58471

STEP BOLT

BOLT - cam pivot

2шт.

9

A60489

SPRING

- self adjusting brake cam

2шт.

10

A51971

ROD

PIN - spring limit

2шт.

11

138-2068

PIN,3/8" x 2 1/2", Coiled

Spring anchor 3/8" x 2 1/2", Coiled

2шт.

12

A51970

ROD

- ratchet lock

2шт.

13

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN, roll, 1/16 x 1/2 inch

2шт.

14

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

15

S67607

SNAP RING,#25, Ext

Ring, Snap, , grip, brake rod to cam #25, Ext

2шт.

16

A59609

BRACKET

- self adjusting brake

2шт.

17

61-68

HEX SOC SCREW,3/8"-16 x 1/2"

BOLT - hex socket head, 3/8 NC x 1/2 inch

2шт.

18

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

2шт.

19

A60555

SPRING

- ratchet rod return

2шт.

20

A35789

SPRING

- brake return, 4 inch free length (102 mm)

2шт.

21

A51975

BRACKET

- anchor, return spring, right-hand

1шт.

21

A51974

BRACKET

- anchor, return spring, left-hand (Right Shown)

1шт.

25

A41490

BOOT

COVER - push rod, brake cylinder

2шт.

26

A154558

BRACKET

- right-hand cover

1шт.

26

A154557

BRACKET

- left-hand cover (Right Shown)

1шт.

27

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

28

REF

INSTRUCTION

HOUSING - brake (See Figure 206)

2шт.

35

A168473

CYLINDER ASSY.

CYLINDER ASSEMBLY - brake (With green boot), differential, Includes: Ref. 36 - 43

2шт.

35

A168473

CYLINDER ASSY.

CYLINDER ASSEMBLY - brake (With white boot mark) (Replaces A62483, fluid same in both), differential, Includes: Ref. 36 - 43

2шт.

36

NSS

NOT SOLD SEPARAT

BODY - cylinder, differential brake

1шт.

37

A45383

PISTON

ASSEMBLY, differential brake cylinder

1шт.

38

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- piston, differential brake cylinder

1шт.

Part of wheel cylinder repair kit P/N A48971

1шт.

Part of wheel cylinder repair kit P/N A42258

1шт.

39

A42252

SEALING RING

RING - o-ring backup, differential brake cylinder

1шт.

Part of wheel cylinder repair kit P/N A48971

1шт.

Part of wheel cylinder repair kit P/N A42258

1шт.

40

A42256

SNAP RING,0.901", Int, #90

piston, differential brake cylinder 0.901", Int, #90

1шт.

Part of wheel cylinder repair kit P/N A48971

1шт.

Part of wheel cylinder repair kit P/N A42258

1шт.

41

A48972

BRAKE

BOOT - cylinder weatherseal (Green), differential brake

1шт.

Part of wheel cylinder repair kit P/N A48971

1шт.

Part of wheel cylinder repair kit P/N A42258

1шт.

41

A42255

BOOT

- cylinder weatherseal (With white mark), differential brake

1шт.

Part of wheel cylinder repair kit P/N A48971

1шт.

Part of wheel cylinder repair kit P/N A42258

1шт.

42

A42254

ROD

- push, differential brake cylinder

1шт.

Part of wheel cylinder repair kit P/N A48971

1шт.

Part of wheel cylinder repair kit P/N A42258

1шт.

43

A41491

BLEEDER,1/4" - 28 x 23.37mm

- cylinder bleeder, differential brake

1шт.

A48971

KIT

- repair, wheel cylinder, With green boot, Includes: Ref. 38 - 42, differential brake

2шт.

A42258

KIT

- repair, wheel cylinder, Includes: Ref. 38 - 42, differential brake

2шт.

45

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Differential brake cylinder Hex, 1/4"-20 x 1 1/4", G5

4шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Differential brake cylinder 1/4"

4шт.

47

25-104

NUT,1/4"-20, G5

Differential brake cylinder 1/4"-20, G5

4шт.

48

222-1062

PLUG,7/16"-24, Inv Fl

hex, differential brake cylinder 7/16"-24, Inv Fl

2шт.
