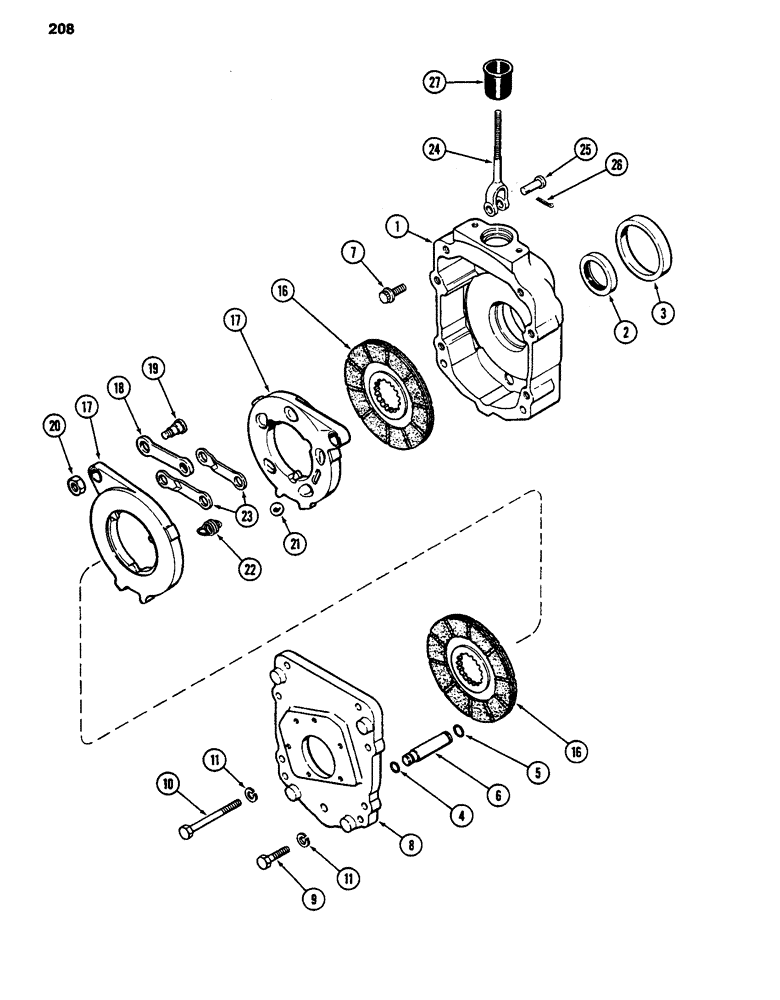

Запчасти Case 480D (208) - TRANSAXLE DIFFERENTIAL BRAKE HOUSING AND BRAKE, TRANSMISSION S/N 16270319 AND AFTER (33) - BRAKES & CONTROLS

1

A179102

HOUSING

ASSEMBLY - brake, Includes: Ref. 2 and 3

2шт.

2

A179054

OIL SEAL,63.54mm ID x 88.82mm OD x 12mm Thk

SEAL - oil

1шт.

3

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, 4-7/16 inch OD (113 mm)

1шт.

4

A179308

O-RING,0.614" ID x 0.754" OD x 0.07"

- anchor pin, 5/8 inch (16 mm) ID

2шт.

5

A179307

O-RING,0.739" ID x 0.879" OD x 0.7"

- anchor pin, 3/4 inch (19 mm) ID

2шт.

6

A179913

AXLE PIN

PIN - spring anchor

2шт.

7

A156878

12 PT SCREW

BOLT - 12 point head, housing

4шт.

8

A168821

COVER

- brake housing, right-hand

1шт.

8

A168822

COVER

- brake housing, left-hand (Right-hand shown)

1шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

10

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

4шт.

11

92-8

LOCK WASHER,1/2"

16шт.

A168628

BRAKE

ASSEMBLY - disc, Includes: Ref. 16 - 23

2шт.

16

A153982

DISC

ASSEMBLY - brake

2шт.

17

A41860

DISC

- brake, actuating

2шт.

18

A41861

LINK

- actuating, disc

2шт.

19

A41865

BOLT

BOLT - actuating, disc

2шт.

20

A42801

JAM NUT

- hex jam, 1/2 inch NF

2шт.

21

211-223

BALL,1" Dia

- actuating, 1 inch diameter (25 mm)

5шт.

22

A47719

SPRING

- disc tension

3шт.

23

A48952

LINK

- actuating, disc

2шт.

24

A168817

STEM

ROD - pull, brake actuating

2шт.

25

L13129

CLEVIS PIN,15.77mm OD x 41.15mm L

PIN - clevis rod to brake links

2шт.

26

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

27

A179595

BOOT

SEAL - dust, brake housing

2шт.
